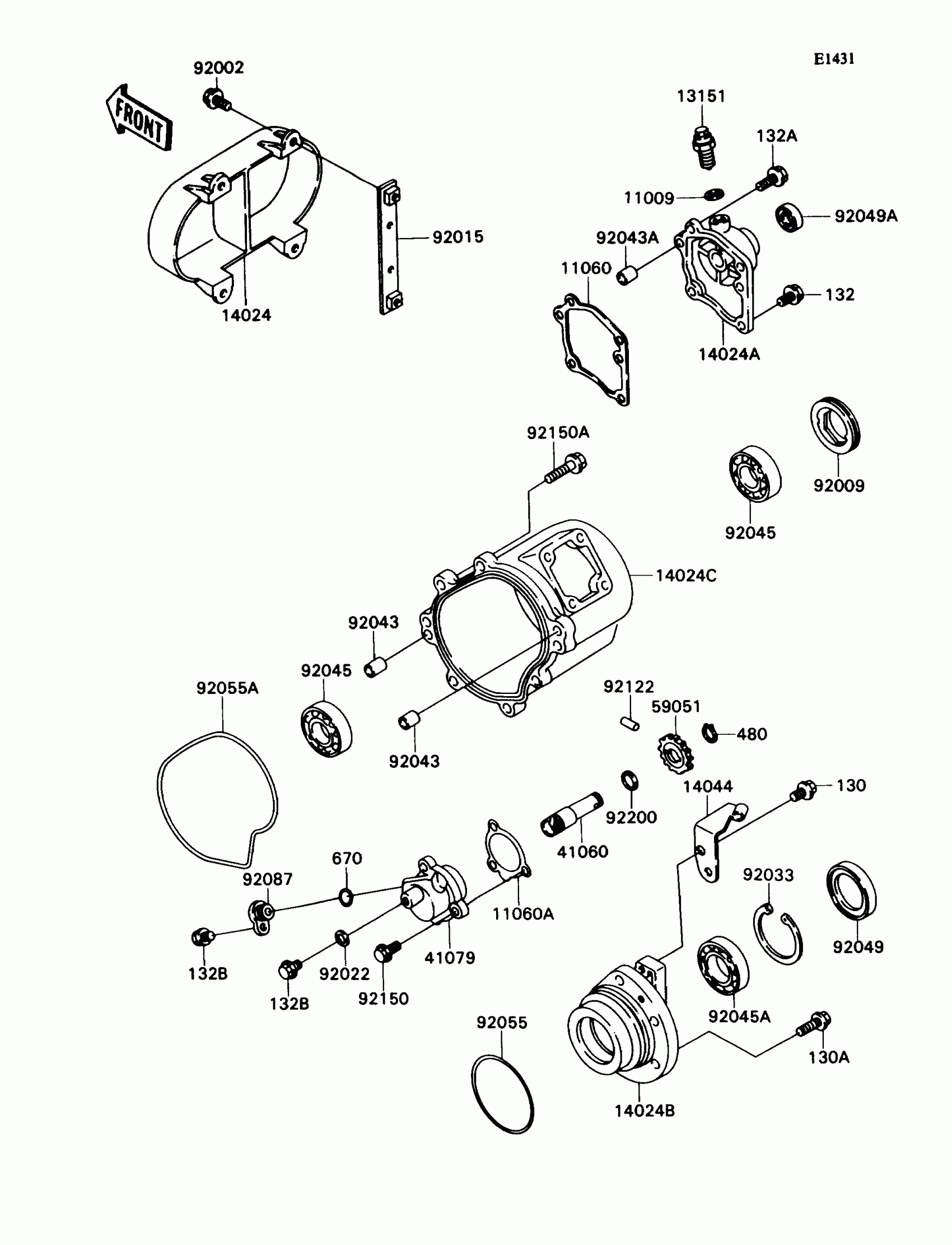

Kawasaki Mule 2010 Engine Cover Diagram
#
11009
GASKET,10.5X16X1
92065-058
$3.96
11060
GASKET,CHANGE COVER
11060-1243
Unavailable
11060A
GASKET,METER GEAR CASE
11060-1246
Unavailable
13151
SWITCH-COMP,NEUTRAL
13151-1069
$27.37
14024
COVER,DUCT
14024-1558
Unavailable
14024A
COVER,CHANGE MECHANISM
14024-1780
Unavailable
14024B
COVER
14024-1782
Unavailable
14024C
COVER
14024-1783
Unavailable
14044
HOLDER-CABLE
14044-1065
Unavailable
41060
GEAR-METER SCREW
41060-1136
$34.13
41079
CASE-METER GEAR
41079-1059
Unavailable
59051
GEAR-SPUR,13T
59051-1219
$54.70
92002
BOLT,6X16
92002-1570
Unavailable
92009
SCREW
92009-1290
$27.29
92015
NUT,AIR FILTER
92015-1785
$9.16
92022
WASHER OIL PUMP BANJO
92022-077
$3.99
92033
RING-SNAP,55MM
92033-1274
$9.43
92043
PIN,DOWEL,10X14
92043-1037
$0.74
92043A
PIN,6.2X8X14
92043-1263
$0.43
92045
BEARING-BALL,TMB304CCM
92045-1142
$40.43
92045A
BEARING-BALL,6006
92045-1208
$22.15
92049
SEAL-OIL,TC35X55X8
92049-1298
$8.98
92049A
SEAL-OIL,TB13225.5
92051-005
$7.74
92055
RING-O,74.6X2.4
92055-1357
$8.76
92055A
RING-O
92055-1450
$24.06
92087
BUSHING-METER GEAR
92087-1058
$8.03
92122
ROLLER,3X15.8
92122-1126
$3.92
92150
BOLT,6X20
92150-1010
Unavailable
92150A
BOLT,8X32
92150-1370
$7.58
92200
WASHER
92200-1009
$5.07
130
BOLT-FLANGED
130D0616
$0.55
130A
BOLT-FLANGED
130D0825
$0.90
132
BOLT-FLANGED-SMALL
132H0616
$1.47
132A
BOLT-FLANGED-SMALL
132H0620
$2.33
132B
BOLT-FLANGED-SMALL,6X10
132J0610
$2.33
480
CIRCLIP-TYPE-C,11MM
480J1100
$1.24
670
O RING,10MM
670D1510
$4.69
