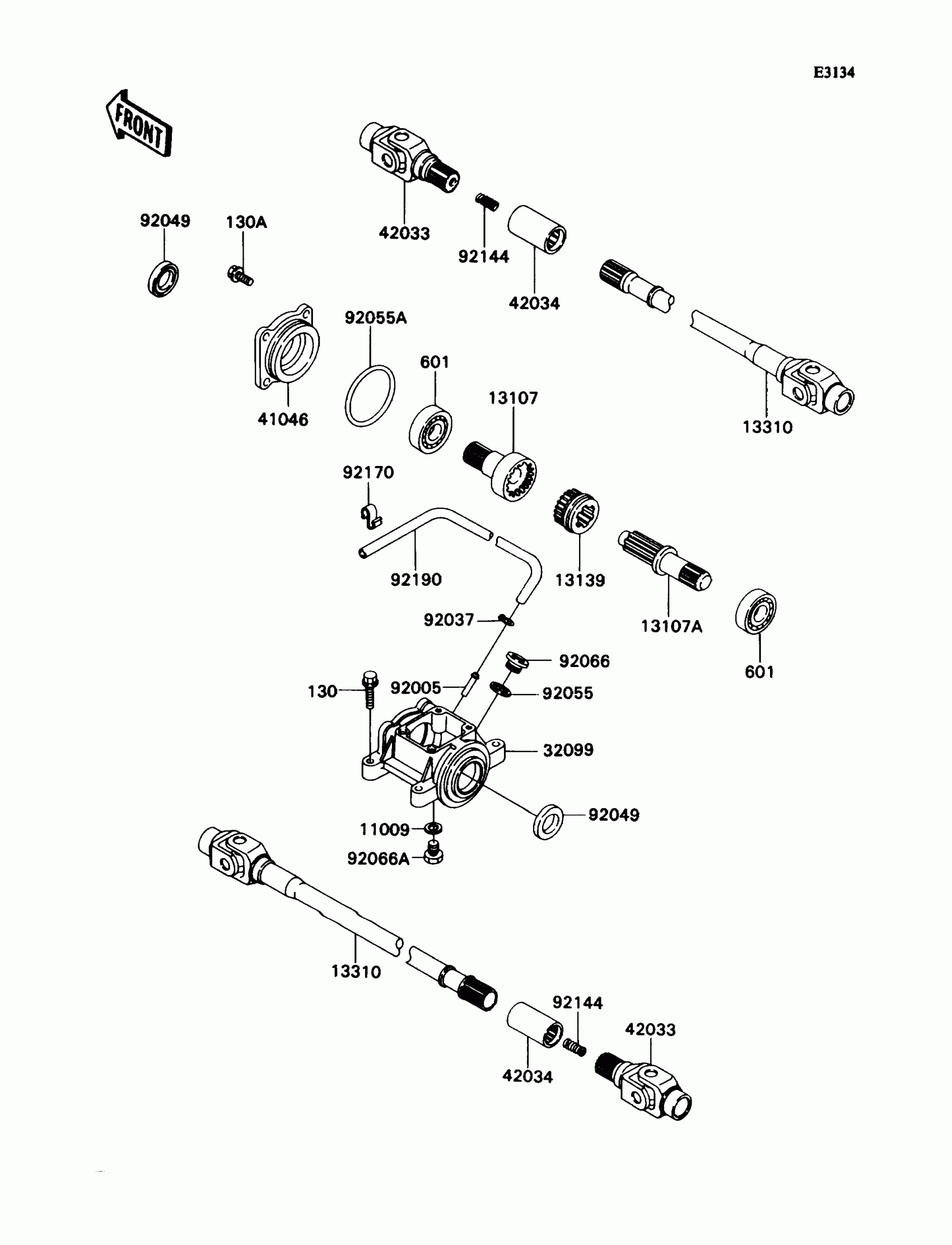

Kawasaki Mule 2010 Drive Shaft(2WD/4WD) Diagram

Description

Price

11009

GASKET,10.5X16X1

92065-058

$3.03

13107

SHAFT,2WD/4WD

13107-1255

Unavailable

13107A

SHAFT,2WD/4WD

13107-1256

Unavailable

13139

SHIFTER,2WD/4WD

13139-1061

Unavailable

13310

SHAFT-ASSY

13310-1002

Unavailable

32099

CASE,2WD/4WD

32099-1122

$261.23

41046

HOUSING-BEARING

41046-1093

$80.72

42033

COUPLING-ASSY

42033-1130

$151.79

42034

COUPLING

42034-1103

Unavailable

92005

FITTING

92005-1142

$7.47

92037

CLAMP,TUBE

92037-147

$5.61

92049

SEAL-OIL

92049-1047

$12.40

92055

RING-O,20X2

92055-1146

$6.55

92055A

RING-O,63.6X2.4

92055-1294

$7.25

92066

PLUG,COVER

92066-1163

$11.20

92066A

PLUG,DRAIN,10X12

92067-001

$3.36

92144

SPRING

92144-1276

Unavailable

92170

CLAMP

92170-1105

$12.27

92190

TUBE,4.7X9.5X600

92190-1044

Unavailable

130

BOLT-FLANGED,8X35

130D0835

Unavailable

130A

BOLT-FLANGED,8X20

130H0820

Unavailable

601

BEARING-BALL,#6205C3

601B6205

$14.76
