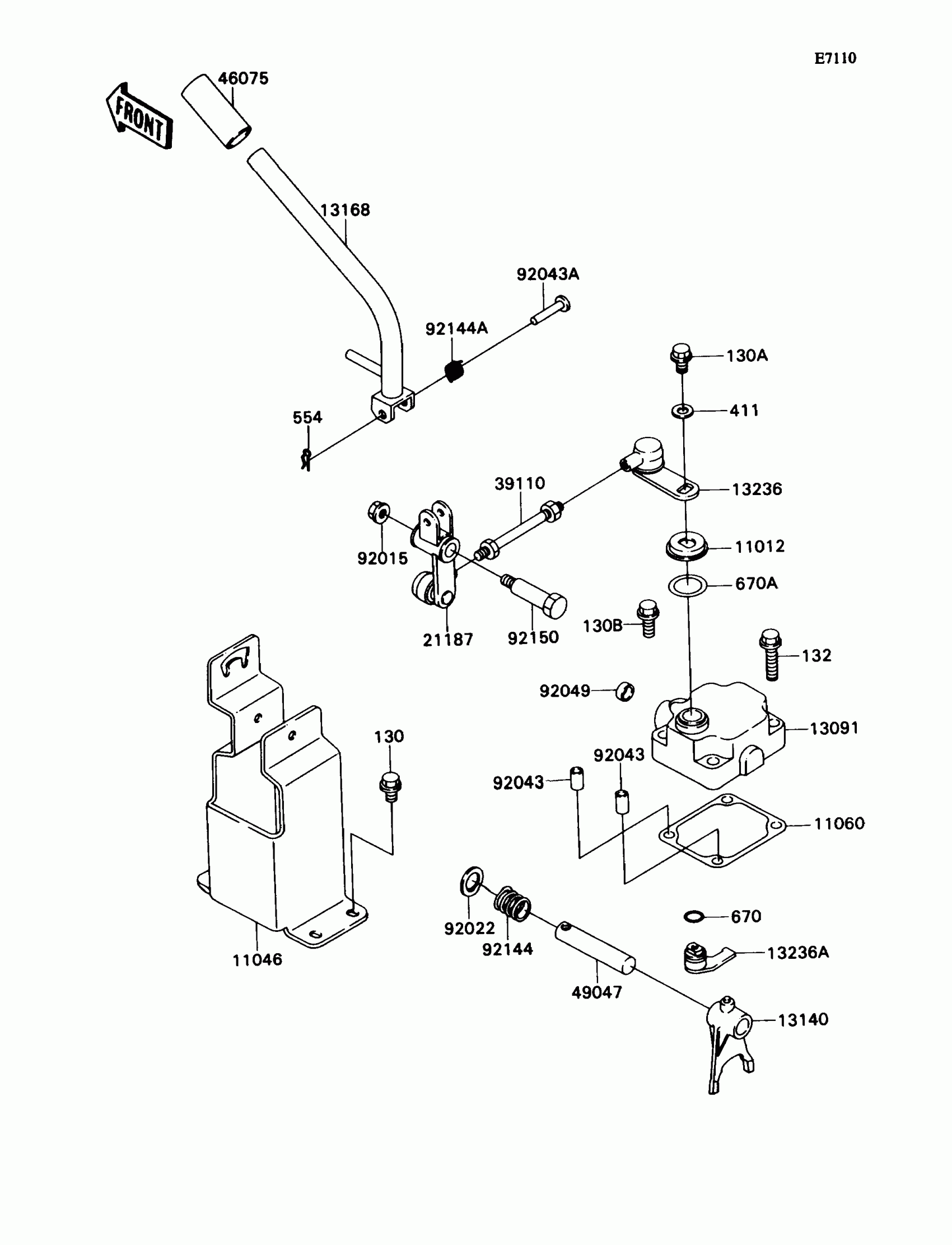

Kawasaki Mule 2010 Control Diagram

#

Description
Price

11012

CAP

11012-1652

$8.12

11046

BRACKET

11046-1659

Unavailable

11060

GASKET,CONTROL LEVER

11060-1233

Unavailable

13091

HOLDER

13091-1548

$55.20

13140

FORK-SHIFT

13140-1182

Unavailable

13168

LEVER

13168-1424

$41.82

13236

LEVER-COMP

13236-1175

$99.61

13236A

LEVER-COMP

13236-1208

Unavailable

21187

ARM-ASSY,ROD END-TIE

21187-1075

$118.98

39110

ROD-ASSY-TIE,L=90,BLACK

39110-1008

$13.98

46075

GRIP,LEVER

46075-1062

$9.16

49047

ROD-SHIFT

49047-1078

$28.99

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,12.3X20X0.5

92022-269

$1.25

92043

PIN,6.2X8X14

92043-1263

$0.43

92043A

PIN,5X27.5

92043-1434

$9.21

92049

SEAL-OIL,RCA124

92049-1311

$6.42

92144

SPRING,REAR STEP

92081-1957

$5.90

92144A

SPRING,LEVER

92144-1428

$6.23

92150

BOLT

92002-1984

$9.40

130

BOLT-FLANGED,6X14

130D0614

Unavailable

130A

BOLT-FLANGED,6X12

130J0612

$2.19

130B

BOLT-FLANGED

130J0620

$0.43

132

BOLT-FLANGED-SMALL,6X35

132J0635

$3.84

411

WASHER PLAIN

411F0600

$1.18

554

PIN-SNAP,5MM

554A0500

$2.19

670

O RING,10MM

670B2010

$1.50

670A

O RING,18MM

670B2018

$1.42
