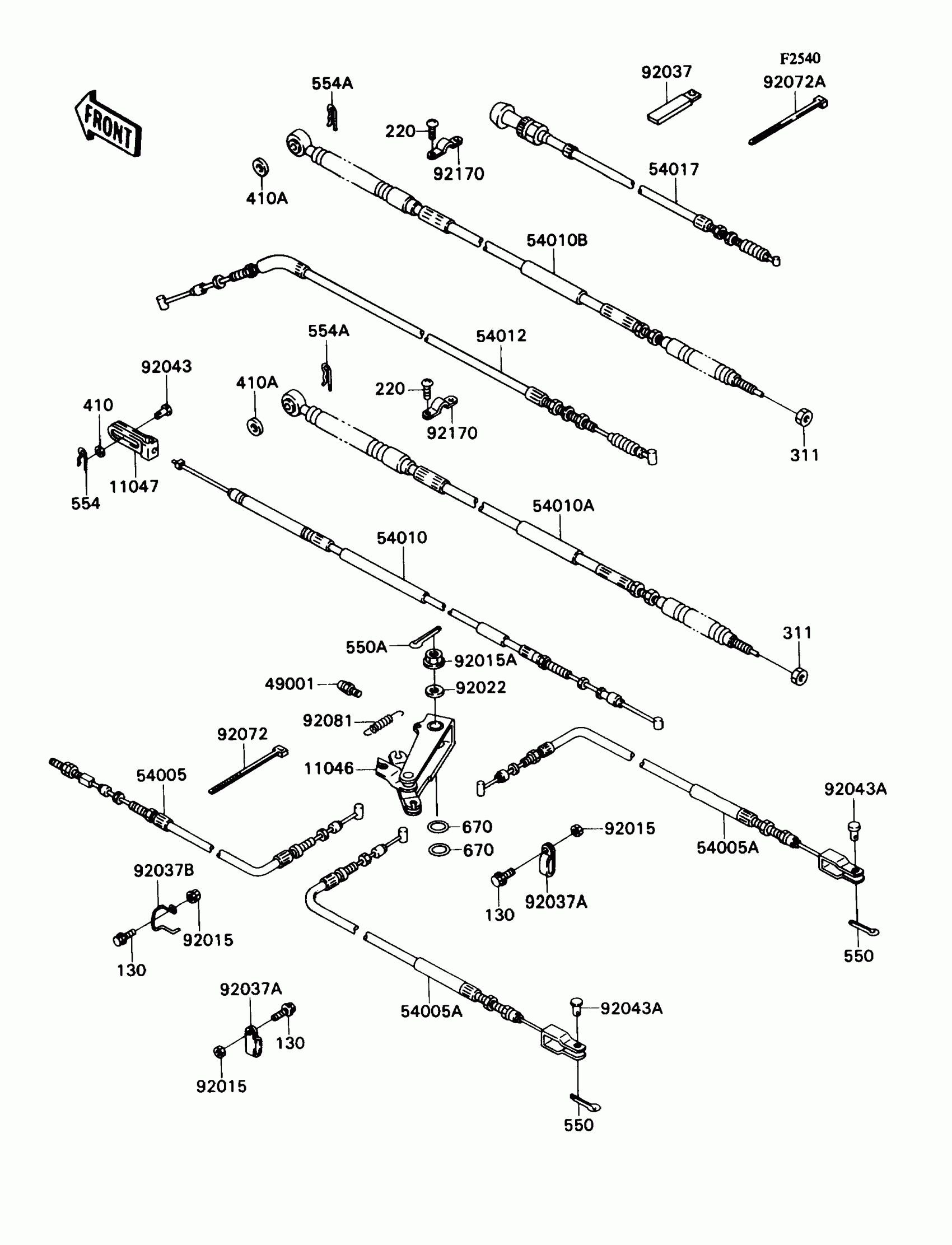

Kawasaki Mule 2010 Cable Diagram

#

Description
Price

11046

BRACKET,EQUALIZER

11046-1674

Unavailable

11047

BRACKET,DIFF LOCK

11047-1043

Unavailable

49001

NIPPLE-GREASE

49001-1051

$3.02

54005

CABLE-BRAKE,PARKING,FR

54005-1163

Unavailable

54005A

CABLE-BRAKE,PARKING,RR

54005-1164

Unavailable

54010

CABLE,DIFF LOCK

54010-1077

Unavailable

54010A

CABLE,SHIFT CONTROL

54010-1078

$160.65

54010B

CABLE,HI-LOW GEAR

54010-1079

Unavailable

54012

CABLE-THROTTLE

54012-1375

Unavailable

54017

CABLE-STARTER

54017-1117

Unavailable

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92015A

NUT,LOCK,10MM

92019-021

$6.11

92022

WASHER,10.5X26X2.3

92022-044

$3.92

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP

92037-1608

$8.10

92037B

CLAMP,HARNESS,RH

92037-1815

Unavailable

92043

PIN,6X11

92043-092

$4.69

92043A

PIN

92043-1039

$9.91

92072

BAND,L=365

92072-1197

$7.84

92072A

BAND,L=188

92072-1239

$1.73

92081

SPRING,SEAT HOOK

92081-1438

$8.24

92170

CLAMP,CABLE

92037-1933

$7.33

130

BOLT-FLANGED,6X20

130D0620

$1.69

220

SCREW-PAN-CROS,5X14

220D0514

$4.04

311

NUT 6MM

311B0600

$0.93

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

410A

W-PLAIN-S,8MM

410E0800

$0.96

550

PIN-COTTER,2.0X20

550D2020

$0.96

550A

PIN-COTTER,2.5X18

550D2518

$0.59

554

PIN,SNAP

554A0600

$0.93

554A

PIN-SNAP,8MM

554A0800

$1.26

670

O RING,11MM

670B2011

$1.28
