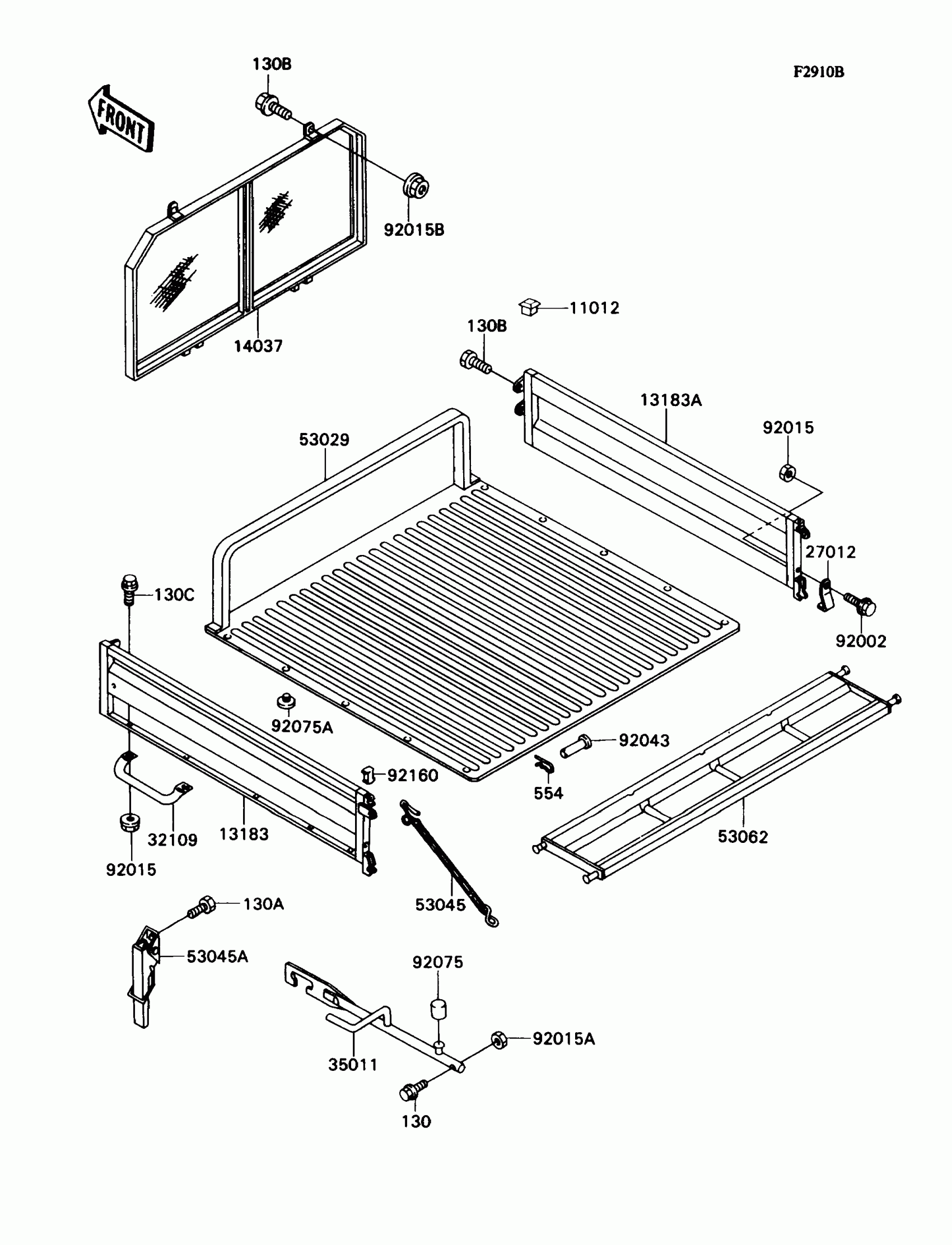

Kawasaki Mule 2010 Accessory(Carrier/Screen) Diagram

Description

Price

11012

CAP

11012-1784

$6.32

13183

PLATE,CARRIER SIDE,LH,F.RED

13183-1405-B1

Unavailable

13183A

PLATE,CARRIER SIDE,RH,F.RED

13183-1409-B1

Unavailable

14037

SCREEN,REAR GUARD

14037-1119

$196.02

27012

HOOK,TAIL GATE

27012-1406

$6.43

32109

GRIP-FRAME,F.RED

32109-1196-B1

$5.91

35011

STAY,CARRIER STOPPER

35011-1535

Unavailable

53029

CARRIER,F.RED

53029-1125-B1

$772.11

53045

HOOK-ASSY,TAIL GATE

53045-1056

$56.69

53045A

HOOK-ASSY

53045-1058

$23.47

53062

GATE-TAIL,F.RED

53062-1002-B1

$449.17

92002

BOLT,8X50

92002-1182

$8.98

92015

NUT,FLANGED,8MM

92015-1408

$5.38

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92015B

NUT,FLANGED,LOCK,8MM

92015-1696

$4.67

92043

PIN,12X65

92043-1428

$10.09

92075

DAMPER

92075-1817

$6.22

92075A

DAMPER

92075-1859

$7.62

92160

DAMPER

92160-1191

$6.32

130

BOLT-FLANGED,6X30

130H0630

$1.42

130A

BOLT-FLANGED,6X14,BLACK

130J0614

$2.33

130B

BOLT-FLANGED,8X20

130J0820

$0.83

130C

BOLT-FLANGED,8X25,BLACK

130J0825

$4.15

554

PIN-SNAP,12MM

554A1200

$3.57
