Description

Price

13107

SHAFT,REDUCTION,13T

13107-1232

Unavailable

13127

SHAFT-TRANSMISSION INPUT

13127-1168

Unavailable

13127A

SHAFT-TRANSMISSION INPUT

13127-1177

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

13128-1148

Unavailable

13128A

SHAFT-TRANSMISSION OUTPUT

13128-1165

Unavailable

13129

GEAR,OUTPUT REVERSE,21T

13129-1894

Unavailable

13129A

GEAR,REVERSE IDLER,24T

13129-1895

Unavailable

13129B

GEAR,REDUCTION,36T

13129-1896

Unavailable

13129C

GEAR,OUTPUT FORWARD,25T

13129-1952

Unavailable

13139

SHIFTER

13139-1053

Unavailable

13139A

SHIFTER

13139-1064

Unavailable

92022

WASHER,20.5X30X1,STEEL

92022-112

$8.86

92022A

WASHER,TOOTHED,28.3X33.5X1

92022-1139

$7.22

92026

SPACER,20.3X30X2.0

92026-1022

$5.59

92026A

SPACER,22X35.5X2.1

92026-1224

$9.57

92026B

SPACER,20X32X3.6

92026-1298

Unavailable

92026C

SPACER,28X38X2

92026-1299

Unavailable

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033A

RING-SNAP,18MM

92033-029

$9.82

92033B

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

92046

BEARING-NEEDLE,FWF-223014

92046-031

$19.72

92046A

BEARING-NEEDLE,KMJ20X26X13.8X1

92046-1185

$18.61

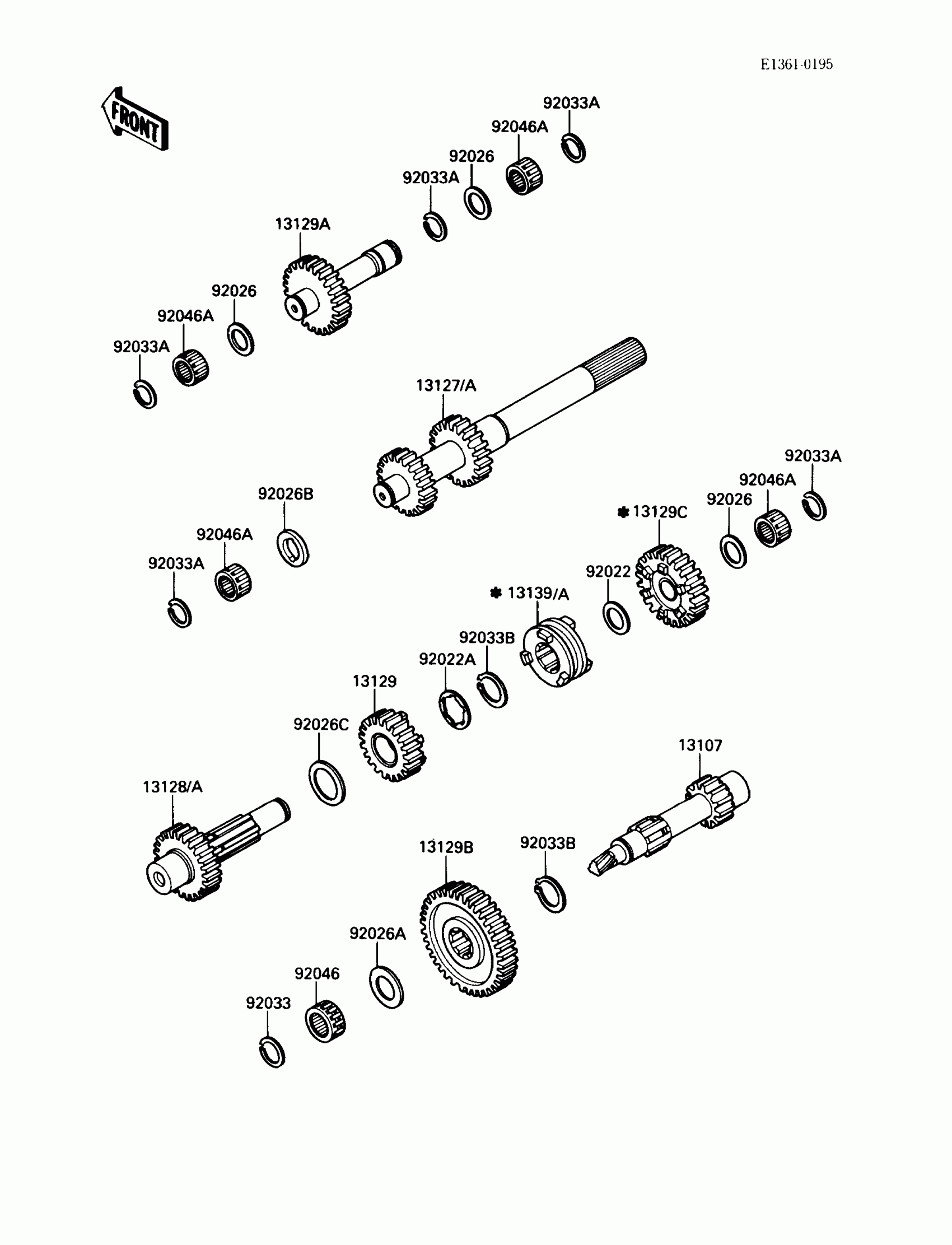

Kawasaki Mule 1000 Transmission Diagram

SHAFT,REDUCTION,13T

SHAFT-TRANSMISSION INPUT

SHAFT-TRANSMISSION INPUT

SHAFT-TRANSMISSION OUTPUT

SHAFT-TRANSMISSION OUTPUT

GEAR,OUTPUT REVERSE,21T

GEAR,REVERSE IDLER,24T

GEAR,REDUCTION,36T

GEAR,OUTPUT FORWARD,25T

SHIFTER

SHIFTER

WASHER,20.5X30X1,STEEL

WASHER,TOOTHED,28.3X33.5X1

SPACER,20.3X30X2.0

SPACER,22X35.5X2.1

SPACER,20X32X3.6

SPACER,28X38X2

RING-SNAP,20X25.5X1.2

RING-SNAP,18MM

RING-SNAP,25.9X30.6X1.2

BEARING-NEEDLE,FWF-223014

BEARING-NEEDLE,KMJ20X26X13.8X1
