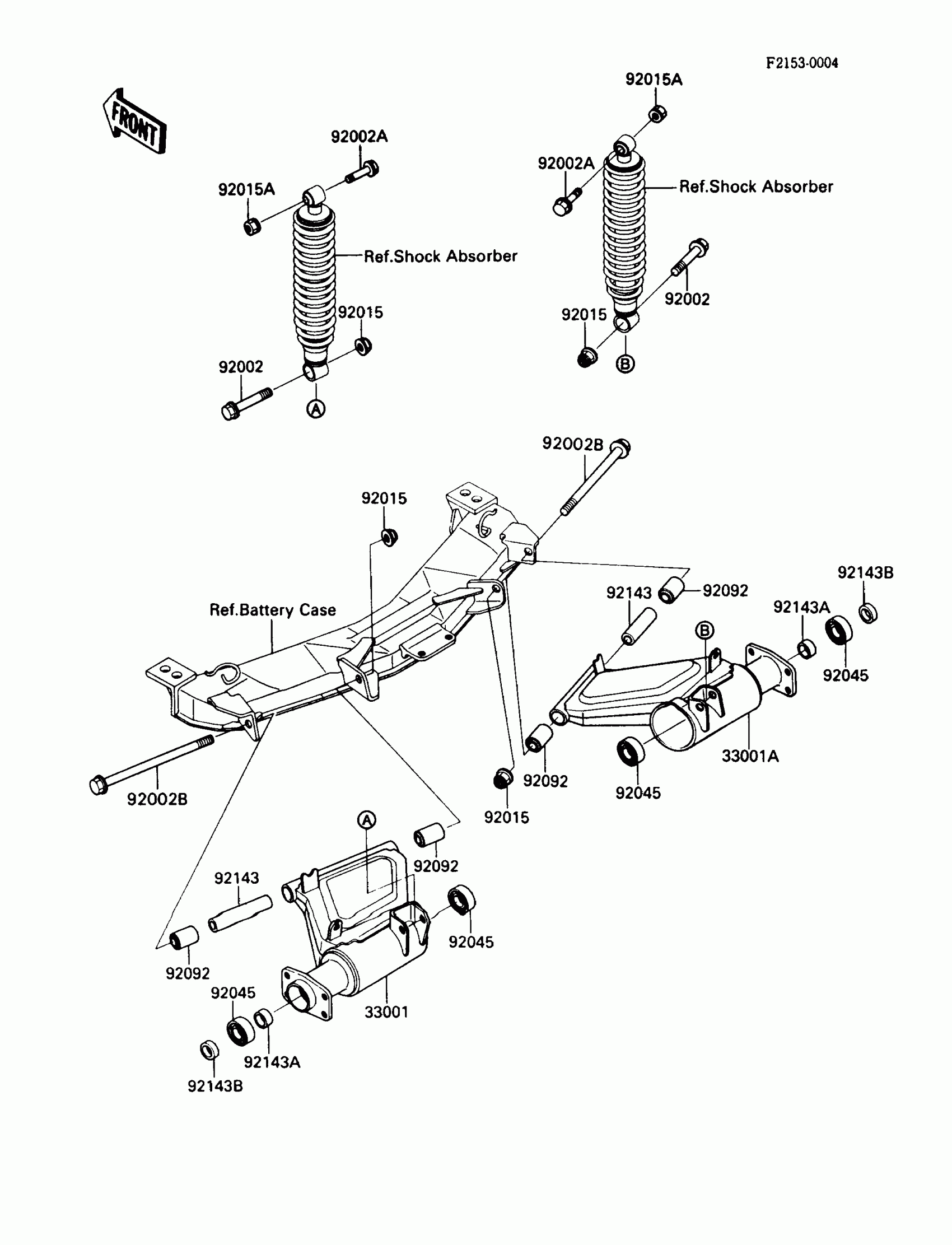

Kawasaki Mule 1000 Rear Suspension Diagram

Description

Price

33001

ARM-COMP-SWING,RR,LH

33001-1296

Unavailable

33001A

ARM-COMP-SWING,RR,RH

33001-1297

$364.13

92002

BOLT,FLANGED,12X65

92002-1506

$10.68

92002A

BOLT,FLANGED,10X49

92002-1562

$9.05

92002B

BOLT,FLANGED,12X215

92002-1948

$32.99

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92015A

NUT,LOCK,10MM

92015-1808

$4.31

92045

BEARING-BALL,6205DDU

92045-1229

$33.40

92092

BUSHING-RUBBER

92092-1057

$41.00

92143

COLLAR,12.5X23X102.2

92143-1107

Unavailable

92143A

COLLAR,25.1X32X23.3

92143-1108

$20.60

92143B

COLLAR,25.1X35X11

92143-1109

$20.30
