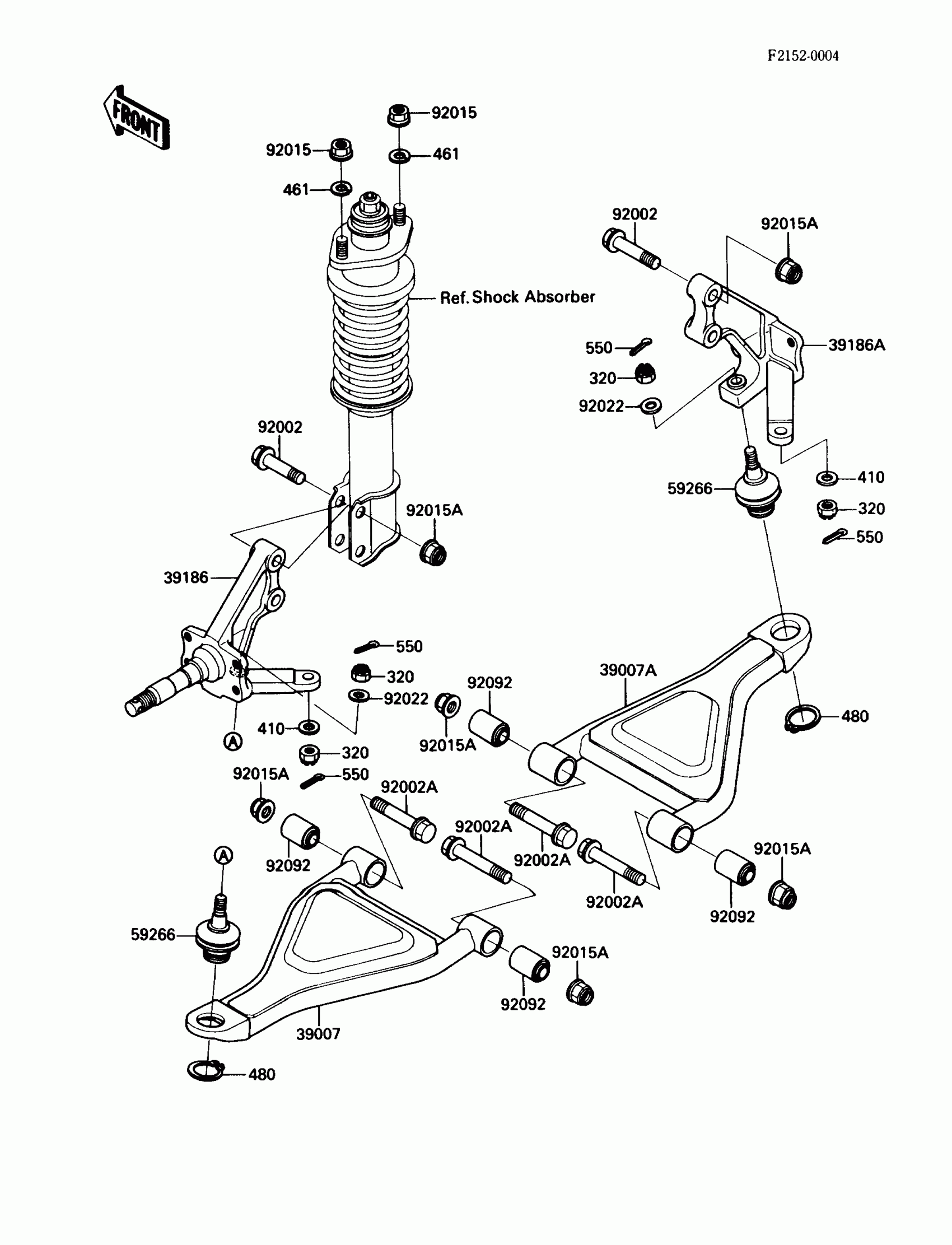

Kawasaki Mule 1000 Front Suspension Diagram

Description

Price

320

NUT-CASTLE

320H1000

$7.88

410

W-PLAIN-S

410E1000

$0.59

461

WASHER-SPRING

461L1000

$0.68

480

CIRCLIP-TYPE-C,32MM

480J3200

$1.77

550

PIN-COTTER,2.0X22

550D2022

$2.51

39007

ARM-SUSP,FR,LH

39007-1129

$228.64

39007A

ARM-SUSP,FR,RH

39007-1130

Unavailable

39186

KNUCKLE,FR,LH

39186-1073

Unavailable

39186A

KNUCKLE,FR,RH

39186-1074

Unavailable

59266

JOINT-BALL

59266-1060

$101.58

92002

BOLT,FLANGED,12X50

92002-1727

$11.07

92002A

BOLT,ROD,12MM

92002-1757

$12.71

92015

NUT,FLANGED,10MM

92015-1366

$5.00

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92022

WASHER,10.5X18X2.5

92022-1876

$5.00

92092

BUSHING-RUBBER

92092-1057

$41.00
