Description

Price

183

BOLT-UPSET-WS-SMALL

183H0814

$0.73

11012

CAP,WHEEL

11012-1519

Unavailable

14087

RETAINER-ASSY,RH

14087-1001

$24.46

14087A

RETAINER-ASSY,LH

14087-1002

$24.46

41035

PANEL-ASSY-BRAKE,FR,LH

41035-1222

Unavailable

41035A

PANEL-ASSY-BRAKE,FR,RH

41035-1223

Unavailable

41038

DRUM,FRONT BRAKE

41038-1185

Unavailable

41048

SHOE-BRAKE

41048-1074

$29.31

43092

CYLINDER,FRONT BRAKE PANEL

43092-1054

$153.34

92002

BOLT,10X30

92002-1388

$9.48

92015

NUT,CASTLE,18MM

92015-1441

$9.23

92041

COTTER,4.0X35

92041-1053

$3.92

92043

PIN,TENSION

92043-1398

$4.86

92045

BEARING-BALL,60/22RD

92045-1218

$34.21

92049

SEAL-OIL

92049-1284

$15.93

92049A

SEAL-OIL,ODC-205 194 8-1NS

92049-1299

$117.05

92066

PLUG

92066-1309

$5.78

92081

SPRING,SHOE CLAMP

92081-1904

$8.03

92143

COLLAR,22.1X28X25

92143-1111

$16.98

92143A

COLLAR,22.1X28X9

92143-1112

$16.39

92144

SPRING,BRAKE

92144-1300

$8.30

92144A

SPRING,BRAKE

92144-1301

$8.30

92150

BOLT,FLANGED,6X12

92150-1166

$4.39

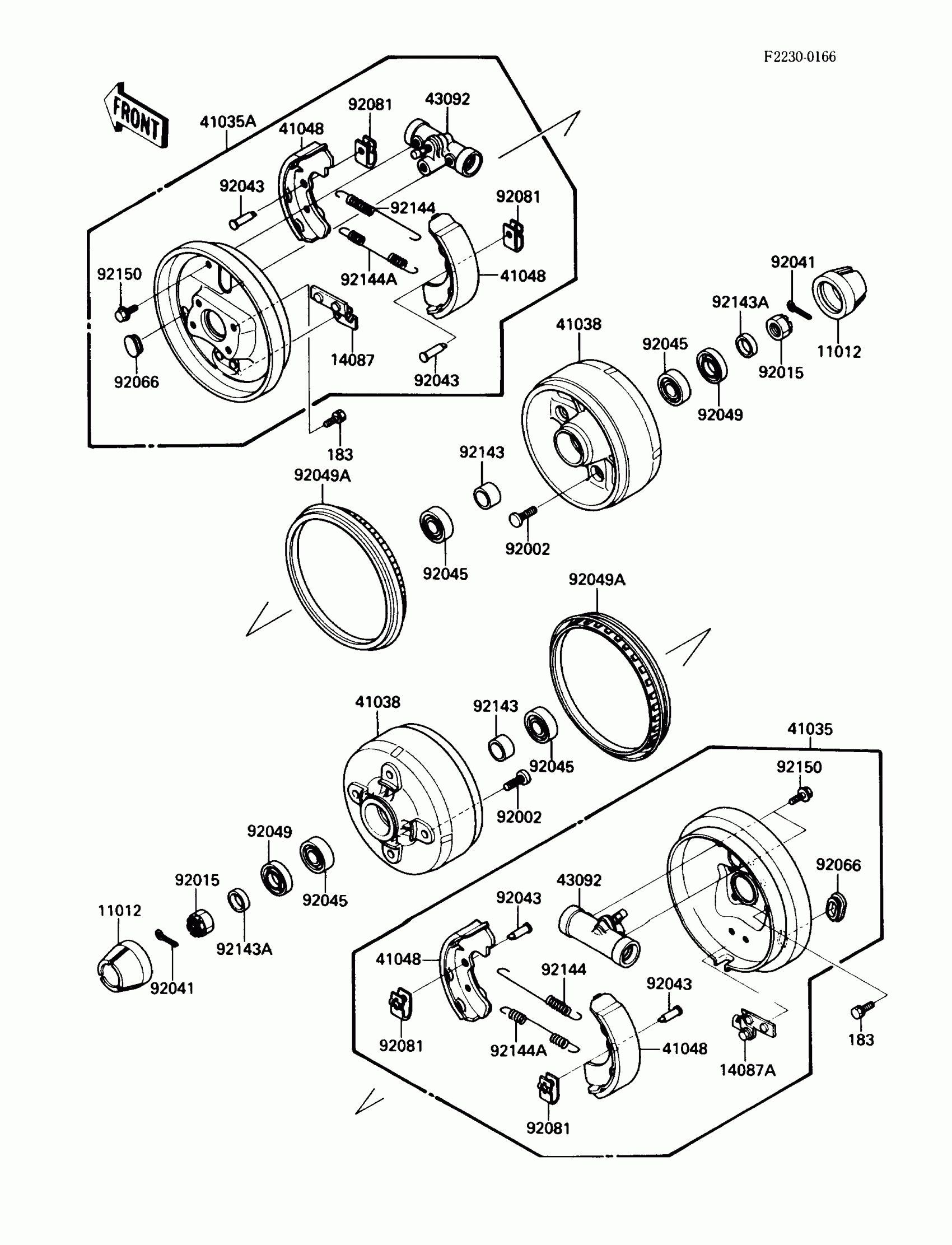

Kawasaki Mule 1000 Front Hubs/Brakes Diagram

BOLT-UPSET-WS-SMALL

CAP,WHEEL

RETAINER-ASSY,RH

RETAINER-ASSY,LH

PANEL-ASSY-BRAKE,FR,LH

PANEL-ASSY-BRAKE,FR,RH

DRUM,FRONT BRAKE

SHOE-BRAKE

CYLINDER,FRONT BRAKE PANEL

BOLT,10X30

NUT,CASTLE,18MM

COTTER,4.0X35

PIN,TENSION

BEARING-BALL,60/22RD

SEAL-OIL

SEAL-OIL,ODC-205 194 8-1NS

PLUG

SPRING,SHOE CLAMP

COLLAR,22.1X28X25

COLLAR,22.1X28X9

SPRING,BRAKE

SPRING,BRAKE

BOLT,FLANGED,6X12
