2007 Kawasaki Mule 1000 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2007 Kawasaki Mule 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

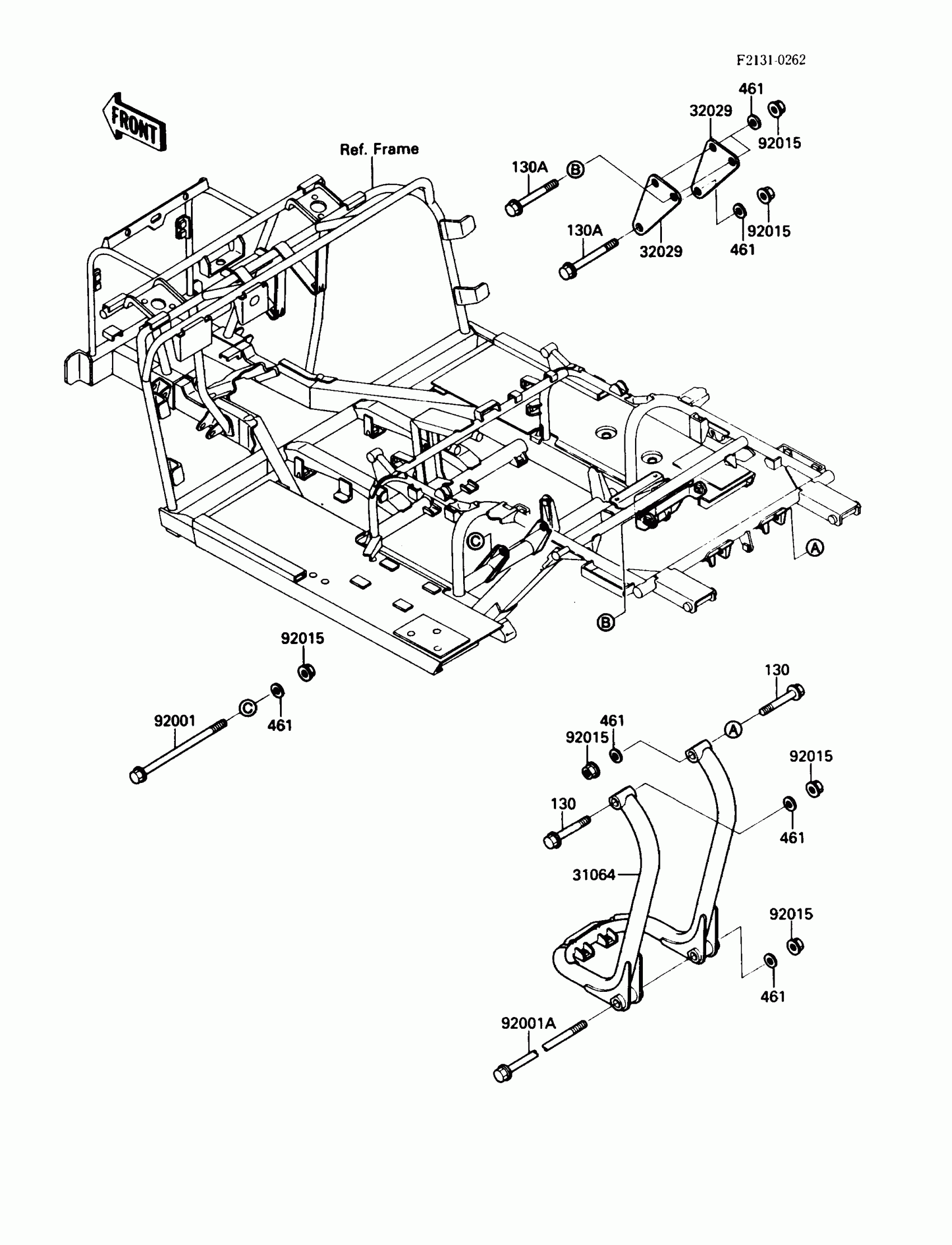

2007 Kawasaki Mule 1000 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,10X60

130H1060

1
Out of stock

130A

BOLT-FLANGED,10X65

130H1065

1
Out of stock

461

WASHER-SPRING

461L1000

1
Out of stock

31064

PIPE-COMP,REAR DIFF

31064-1085

1
Out of stock

32029

BRACKET-ENGINE,RR,UPP

32029-1544

1
Out of stock

92001

BOLT,FLANGED,10X200

92001-1607

1
Out of stock

92001A

BOLT,FLANGED,10X270

92001-1988

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1366

1
Out of stock
