Description

Price

481

CIRCLIP-TYPE-C,22MM

481J2200

$1.19

601

BEARING-BALL

601A6001

$11.71

670

O RING,18MM

670B2018

$1.42

671

O RING,40MM

671B2540

$6.22

11012

CAP

11012-1362

$8.79

11012A

CAP,TOP MARK

11012-1363

$6.51

11060

GASKET,GENERATOR

11060-1248

$21.38

11060A

GASKET,CHANGE COVER

11060-1249

Unavailable

13151

SWITCH-COMP,NEUTRAL

13151-1069

$27.37

14024

COVER,CHANGE MECHANISM

14024-1556

Unavailable

14024A

COVER,BALANCER

14024-1557

Unavailable

14024B

COVER,DUCT

14024-1558

Unavailable

14031

COVER-GENERATOR

14031-1216

Unavailable

92002

BOLT,FLANGED-SMALL,6X40

92002-1566

$5.30

92002A

BOLT,6X16

92002-1570

Unavailable

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92045

BEARING-BALL

92045-1206

$24.15

92049

SEAL-OIL,SC 12X22X5

92049-1228

$9.28

92051

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,20X2

92055-1146

$8.58

92055A

RING-O

92055-1397

$5.23

92065

GASKET,10.5X16X1

92065-058

$3.96

92066

PLUG,COVER

92066-1163

$14.76

92150

BOLT,6X20

92150-1010

Unavailable

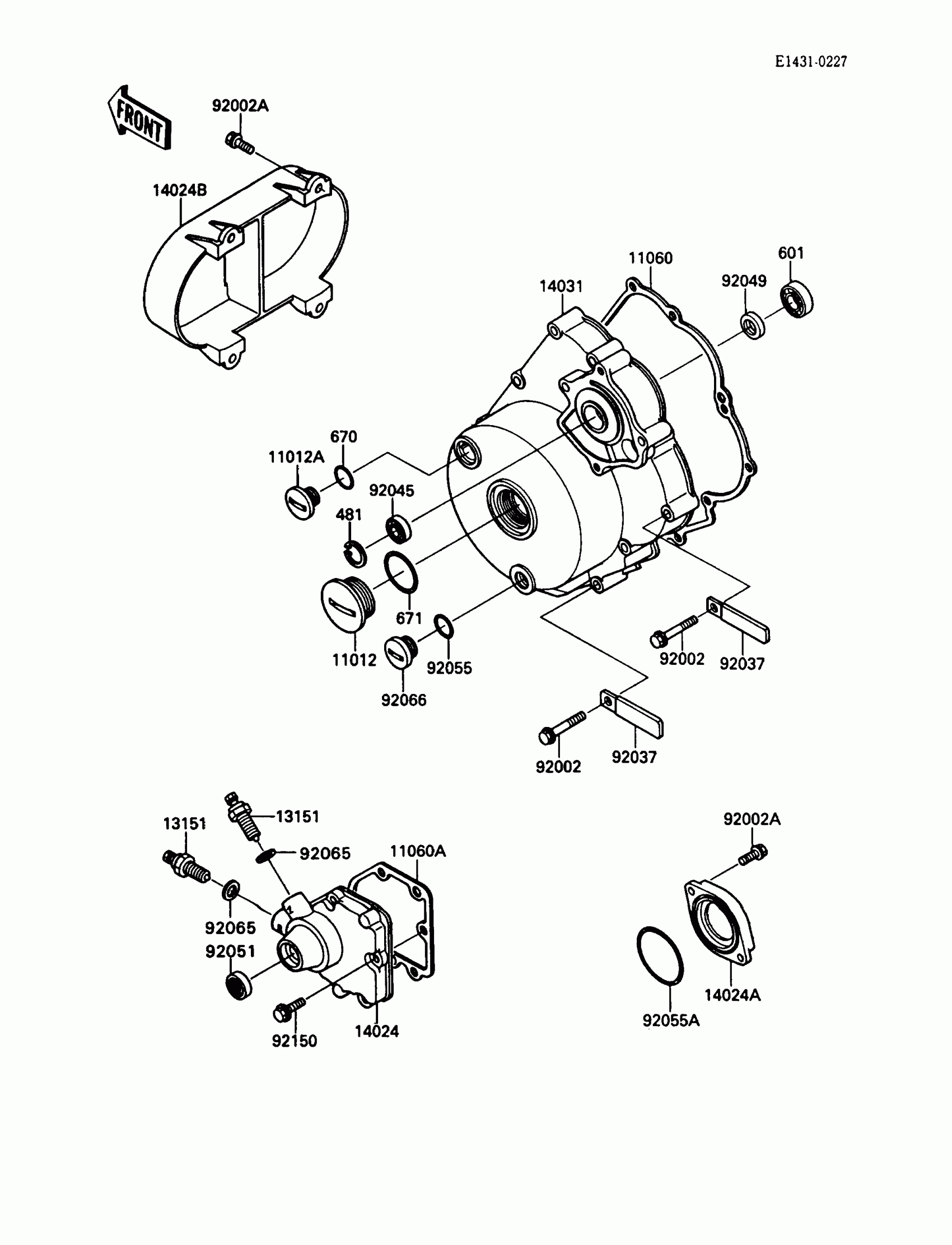

Kawasaki Mule 1000 Engine Cover(s) Diagram

CIRCLIP-TYPE-C,22MM

BEARING-BALL

O RING,18MM

O RING,40MM

CAP

CAP,TOP MARK

GASKET,GENERATOR

GASKET,CHANGE COVER

SWITCH-COMP,NEUTRAL

COVER,CHANGE MECHANISM

COVER,BALANCER

COVER,DUCT

COVER-GENERATOR

BOLT,FLANGED-SMALL,6X40

BOLT,6X16

CLAMP,WIRING HARNESS,L=60

BEARING-BALL

SEAL-OIL,SC 12X22X5

SEAL-OIL,TB13225.5

RING-O,20X2

RING-O

GASKET,10.5X16X1

PLUG,COVER

BOLT,6X20
