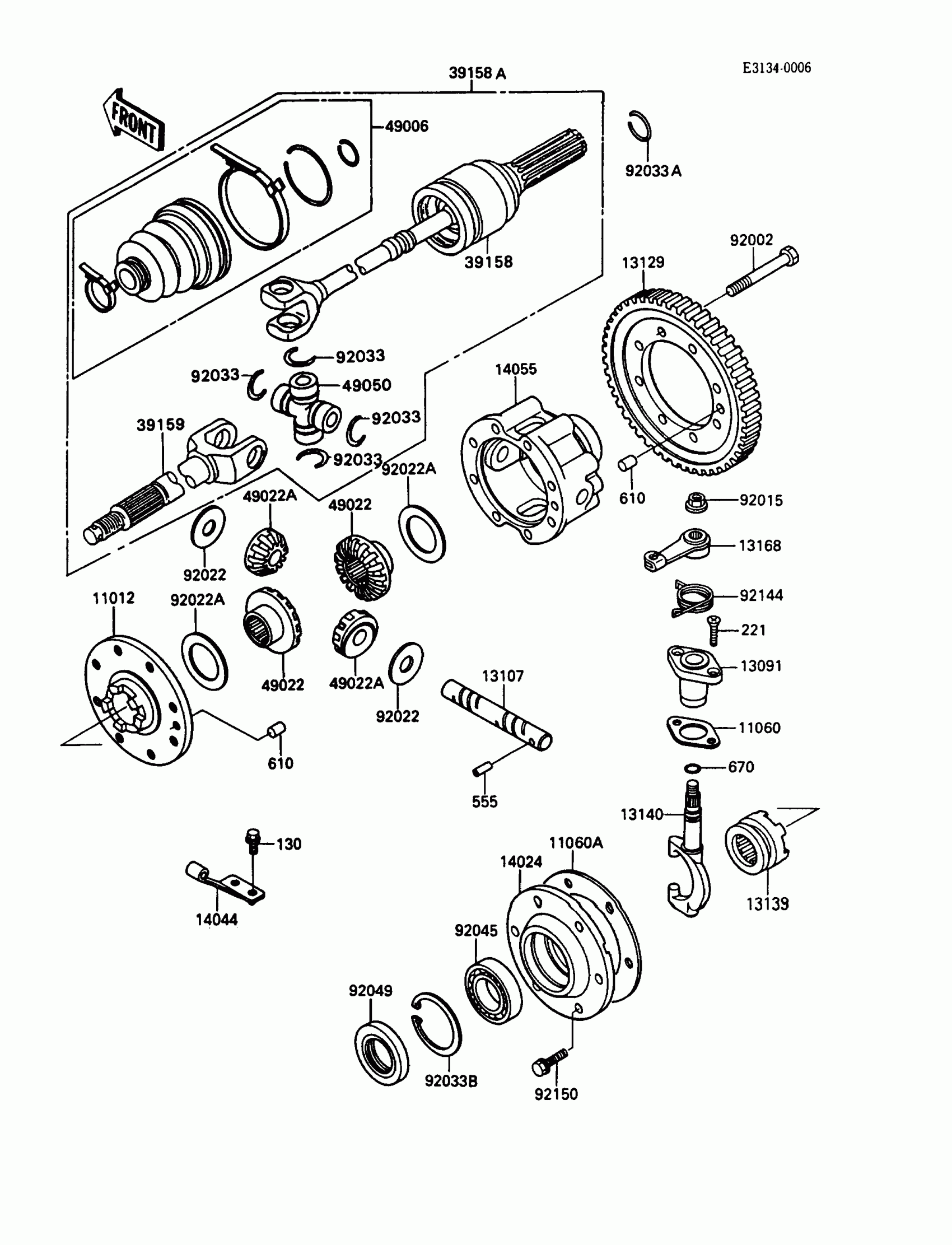

Kawasaki Mule 1000 Drive Shaft Diagram

#

Description
Price

130

BOLT-FLANGED

130D0610

$0.48

221

SCREW-CSK-CROS,6X18

221B0618

$3.41

555

PIN-SPRING

555A0528

$4.80

610

PIN-DOWEL,8X12

610A0812

$3.71

670

O RING,10MM

670B2010

$1.50

11012

CAP,GEAR CASE

11012-1613

$186.52

11060

GASKET,SHIFTER COVER

11060-1247

Unavailable

11060A

GASKET,DRIVESHAFT COVER

11060-1251

$12.80

13091

HOLDER

13091-1375

$100.64

13107

SHAFT

13107-1219

$42.41

13129

GEAR,DIFFERENTIAL,67T

13129-1897

Unavailable

13139

SHIFTER

13139-1054

Unavailable

13140

FORK-SHIFT,DIFF LOCK

13140-1136

Unavailable

13168

LEVER,DIFF LOCK

13168-1367

Unavailable

14024

COVER,DRIVESHAFT

14024-1560

$267.15

14044

HOLDER-CABLE

14044-1061

$9.02

14055

CASE-GEAR

14055-1081

$598.82

39158

SHAFT-ASSY-DRIVE

39158-1066

Unavailable

39158A

SHAFT-ASSY-DRIVE

39158-1067

Unavailable

39159

SHAFT-DRIVE

39159-1063

Unavailable

49006

BOOT,DRIVE SHAFT

49006-1249

Unavailable

49022

GEAR-BEVEL,16T

49022-1101

$154.15

49022A

GEAR-BEVEL,10T

49022-1105

$85.34

49050

SPIDER

49050-1002

$138.29

92002

BOLT,8X68

92002-1553

$10.62

92015

NUT,FLANGED,8MM

92015-1022

$0.48

92022

WASHER,14.5X38X1

92022-1686

Unavailable

92022A

WASHER

92022-1742

$12.92

92033

RING-SNAP

92033-1032

Unavailable

92033A

RING-SNAP

92033-1240

$4.76

92033B

RING-SNAP,55MM

92033-1274

$9.43

92045

BEARING-BALL,6006

92045-1208

$22.15

92049

SEAL-OIL,TC35X55X8

92049-1298

$8.98

92144

SPRING,LOCK LEVER

92144-1198

Unavailable

92150

BOLT

92150-1007

$4.78
