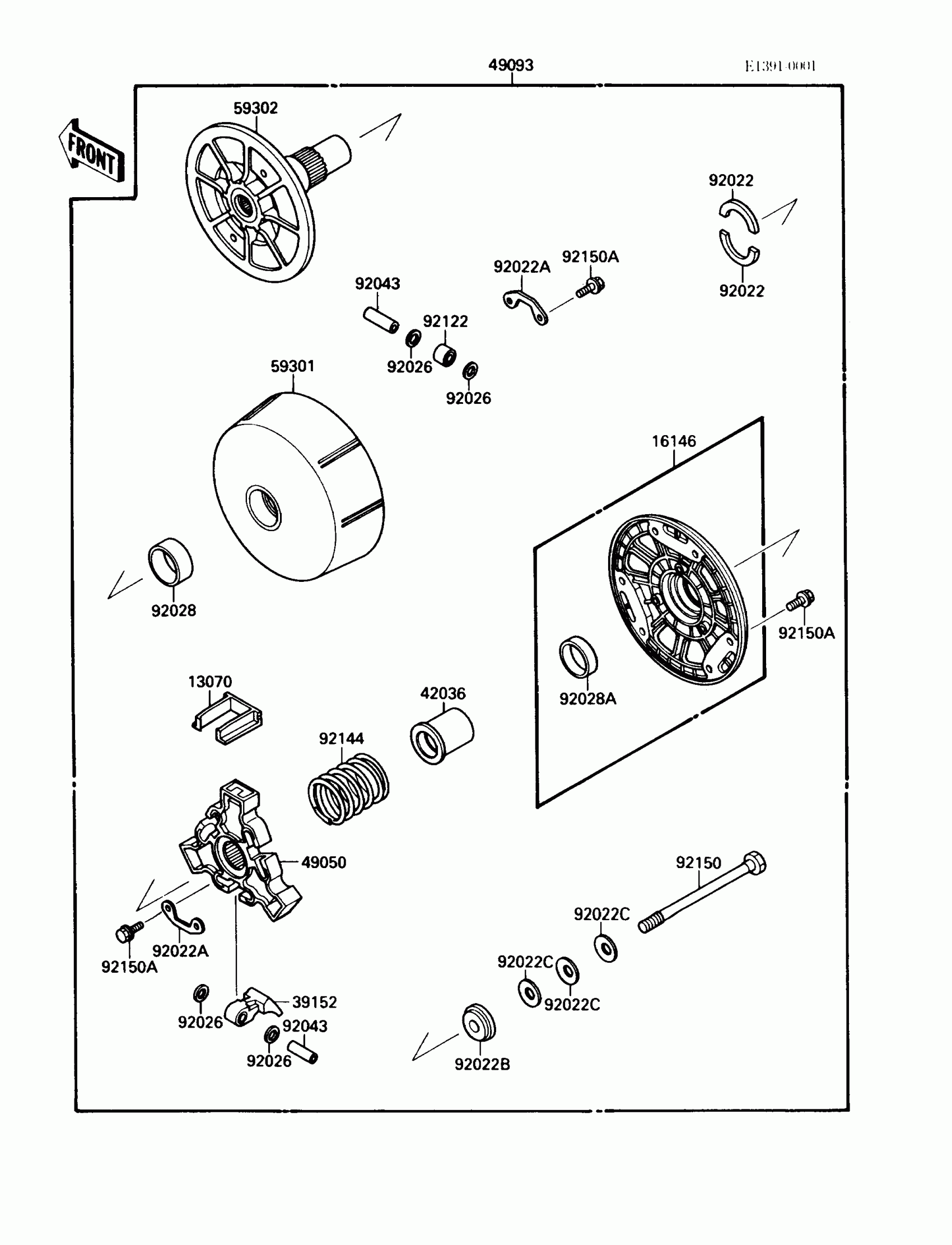

Kawasaki Mule 1000 Drive Converter Diagram

Description

Price

13070

GUIDE

13070-1185

$9.54

16146

COVER-ASSY

16146-1088

$182.15

39152

WEIGHT-RAMP

39152-1051

$60.12

42036

SLEEVE

42036-1221

$57.95

49050

SPIDER

49050-1053

Unavailable

49093

CONVERTER-ASSY-DRIVE

49093-1051

$1,184.19

59301

SHEAVE-MOVABLE

59301-1051

$239.64

59302

SHEAVE-COMP

59302-1051

Unavailable

92022

WASHER,SPLIT

92022-1897

$17.79

92022A

WASHER

92022-1899

$5.11

92022B

WASHER,SLEEVE

92022-1900

$19.26

92022C

WASHER,SPECIAL CONICAL

92022-1901

$6.57

92026

SPACER,10X16X0.8

92026-1304

$4.31

92028

BUSHING,43X47X20

92028-1508

$15.50

92028A

BUSHING,40X44X12

92028-1511

$12.12

92043

PIN,6.5X10X38

92043-1370

$10.53

92122

ROLLER

92122-1152

$32.94

92144

SPRING,DRIVE

92144-1196

$35.32

92150

BOLT,12X163.5

92150-1008

$27.50

92150A

BOLT,6X20

92150-1014

$4.11
