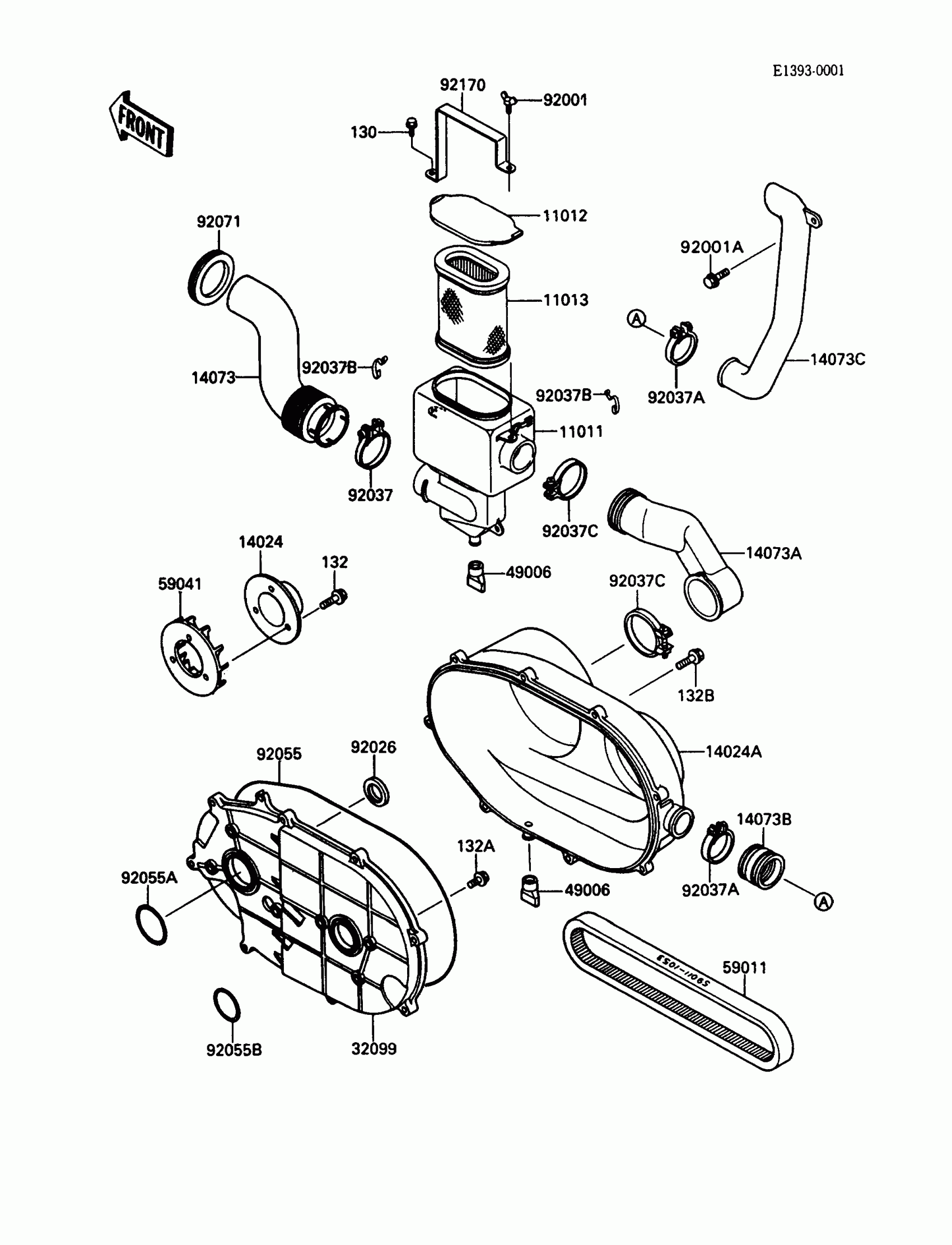

Kawasaki Mule 1000 Converter Cover/Drive Belt Diagram

#

Description
Price

130

BOLT-FLANGED

130J0610

Unavailable

132

BOLT-FLANGED-SMALL,6X30

132G0630

Unavailable

132A

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

132B

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

11011

CASE-AIR FILTER

11011-1350

Unavailable

11012

CAP,AIR FILTER

11012-1708

Unavailable

11013

ELEMENT-AIR FILTER

11013-1207

Unavailable

14024

COVER,FAN

14024-1554

$42.47

14024A

COVER,BELT CONVERTER

14024-1807

Unavailable

14073

DUCT,AIR INTAKE

14073-1320

Unavailable

14073A

DUCT

14073-1323

Unavailable

14073B

DUCT

14073-1324

$8.11

14073C

DUCT

14073-1325

Unavailable

32099

CASE,BELT CONVERTER

32099-1110

Unavailable

49006

BOOT

49006-1199

$6.58

59011

BELT

59011-1053

$140.96

59041

FAN

59041-1053

$44.53

92001

BOLT,WING,6X15

92001-1703

$2.36

92001A

BOLT,6X16

92001-1950

$3.29

92026

SPACER

92026-1301

Unavailable

92037

CLAMP,AIR FILTER

92037-1409

Unavailable

92037A

CLAMP

92037-1632

$6.18

92037B

CLAMP,AIR FILTER

92037-1783

$6.71

92037C

CLAMP

92037-3711

$5.83

92055

RING-O

92055-1394

$13.42

92055A

RING-O,CRANKCASE SIDE

92055-1395

$3.71

92055B

RING-O,GEAR CASE SIDE

92055-1396

Unavailable

92071

GROMMET

92071-1158

Unavailable

92170

CLAMP,CAP

92170-1216

Unavailable
