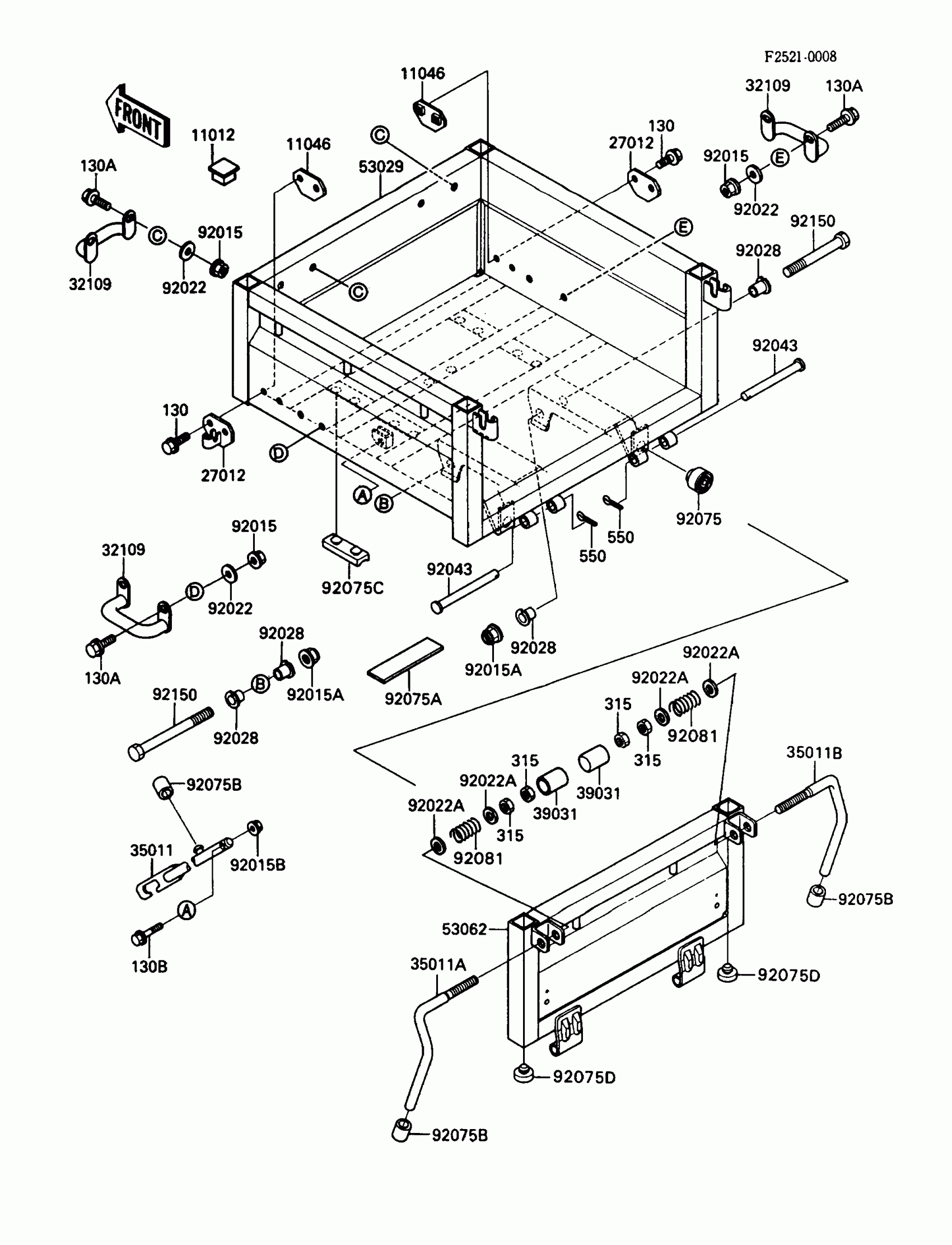

Kawasaki Mule 1000 Cargo Bed Diagram
#
Description
Price
130
BOLT-FLANGED,8X16,BLACK
130C0816
Unavailable
130A
BOLT-FLANGED,8X20
130C0820
Unavailable
130B
BOLT-FLANGED,6X30
130H0630
$1.42
315
NUT-HEX-FINE,10MM
315B1000
$0.58
550
PIN-COTTER,2.5X20
550D2520
$1.36
11012
CAP
11012-1784
$6.32
11046
BRACKET
11046-1337
Unavailable
27012
HOOK
27012-1397
Unavailable
32109
GRIP-FRAME
32109-1189
$5.39
35011
STAY,CARRIER STOPPER
35011-1437
$28.60
35011A
STAY,TAIL GATE,LH,F.RED
35011-1514-B1
Unavailable
35011B
STAY,TAIL GATE,RH,F.RED
35011-1515-B1
Unavailable
39031
CAP-END
39031-1060
Unavailable
53029
CARRIER,F.RED
53029-1112-B1
Unavailable
53062
GATE-TAIL,F.RED
53062-1001-B1
Unavailable
92015
NUT,FLANGED,8MM,BLACK
92015-1183
$5.38
92015A
NUT,LOCK,FLANGED,12MM
92015-1433
$8.86
92015B
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92022
WASHER,8.5X26X1.6
92022-092
$4.31
92022A
WASHER,12.2X20X1.6
92022-1236
$4.90
92028
BUSHING
92028-1545
$6.66
92043
PIN,10X107
92043-1361
Unavailable
92075
DAMPER
92075-015
$5.00
92075A
DAMPER
92075-1214
$4.39
92075B
DAMPER
92075-1817
$6.22
92075C
DAMPER,CARRIER MOUNT
92075-1948
Unavailable
92075D
DAMPER,9X24X14
92075-281
$6.22
92081
SPRING
92081-3703
$4.48
92150
BOLT,12X110
92150-1181
Unavailable
