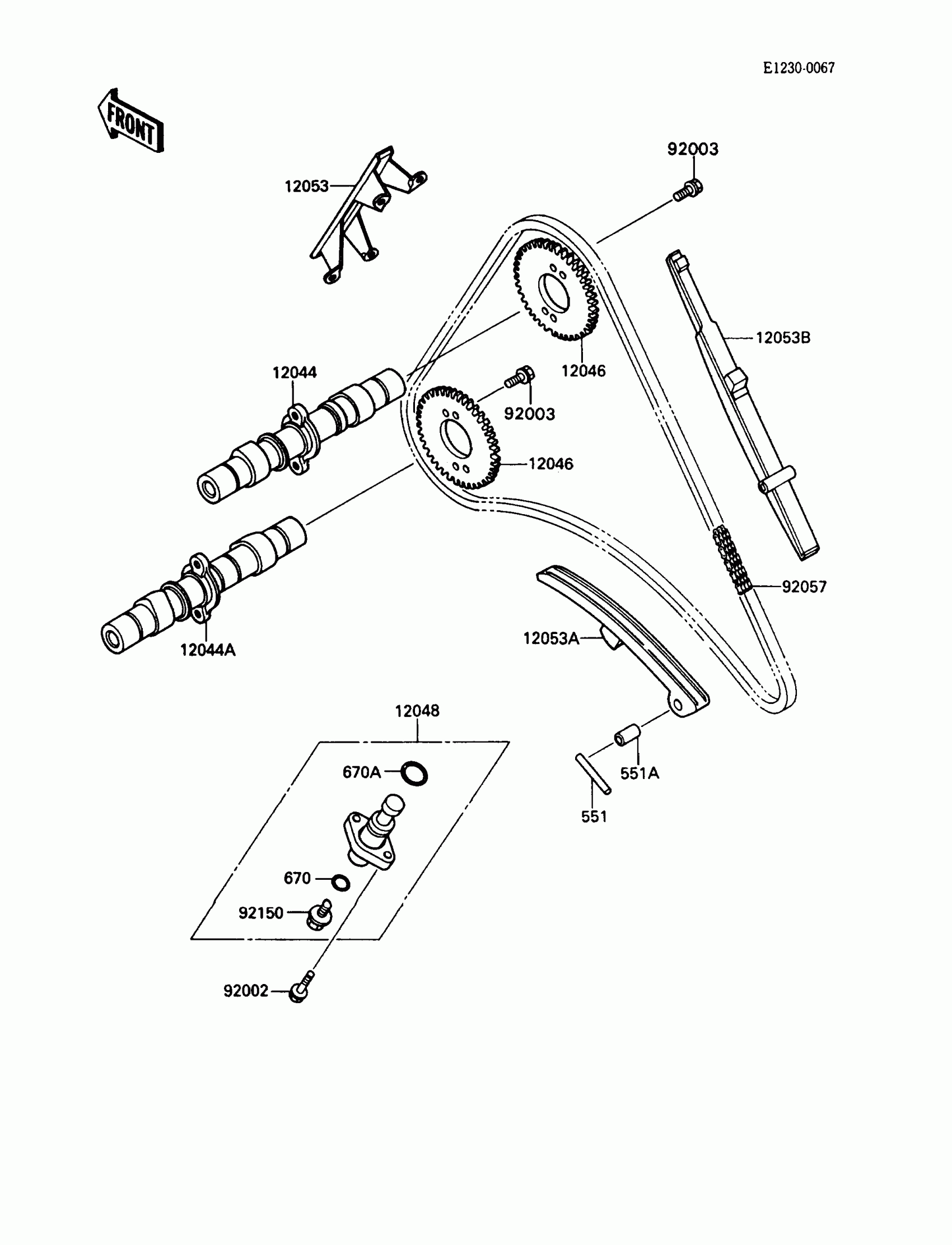

Kawasaki Mule 1000 Camshaft(s)/Tensioner Diagram

Description

Price

551

PIN-DOWEL

551A0440

$3.93

551A

PIN-DOWEL,8X40

551A0840

$5.24

670

O RING,10MM

670D2010

$1.94

670A

O RING,21MM

670D2021

$6.85

12044

CAMSHAFT-VALVE,INTAKE

12044-1217

Unavailable

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1218

Unavailable

12046

SPROCKET,CAMSHAFT,46T

12046-1075

$76.41

12048

TENSIONER-ASSY,CAM CHAIN

12048-1067

Unavailable

12053

GUIDE-CHAIN,UPP

12053-1145

$51.90

12053A

GUIDE-CHAIN,FR

12053-1151

$68.16

12053B

GUIDE-CHAIN,TENSIONER

12053-1229

Unavailable

92002

BOLT,FLANGED,6X25

92002-1086

$5.52

92003

BOLT,FLANGED,6X11

92003-208

$4.31

92057

CHAIN,CAM,79RH2015-148L

92057-1188

$125.91

92150

BOLT,TENSIONER

92150-1380

$7.69
