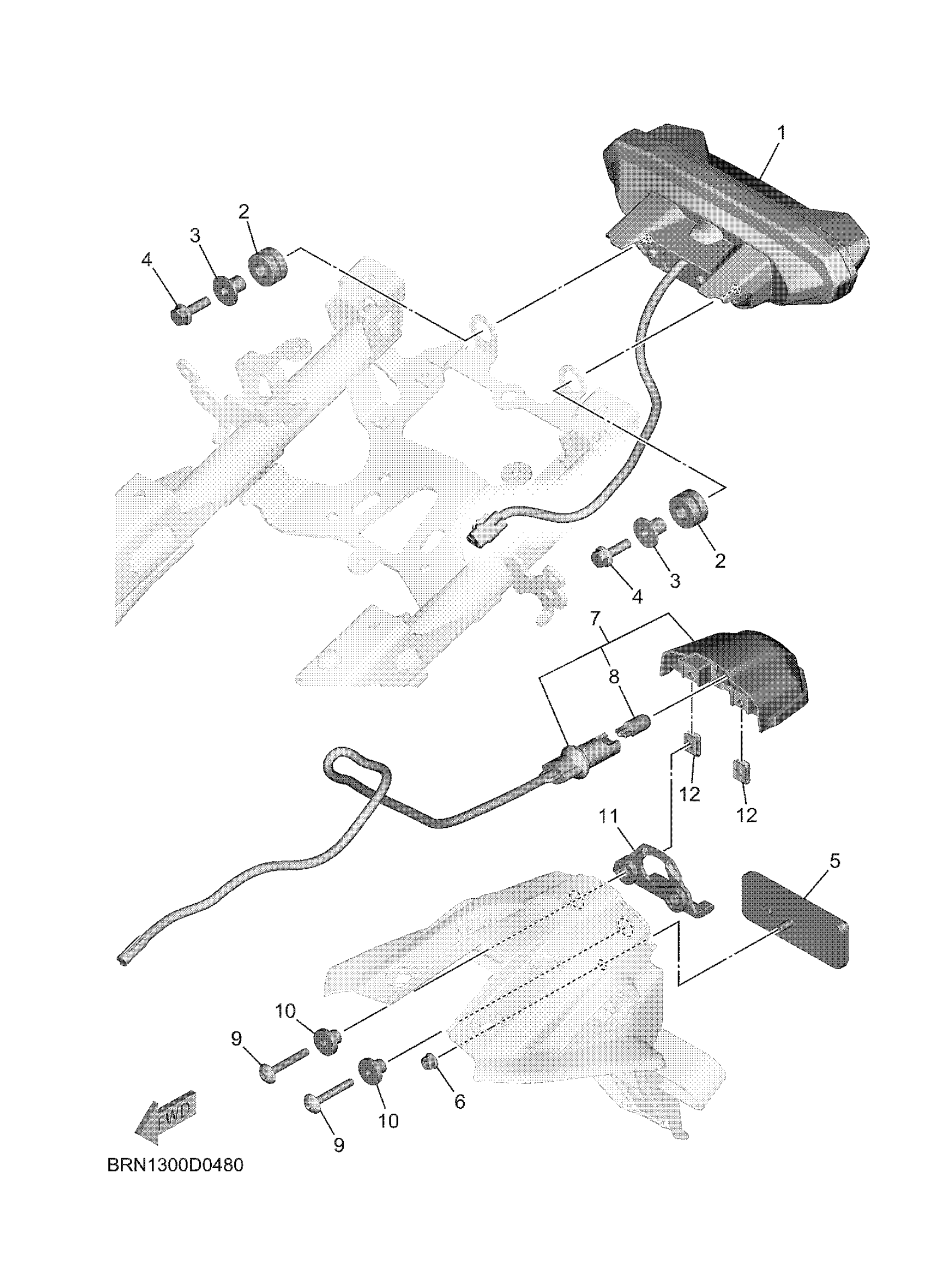

Yamaha MTT9SCB (TRACER 9 CA) BRN6 2025 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

BRN-84700-00-00

Unavailable

2

GROMMET

90480-14011-00

$5.15

3

COLLAR

90387-06287-00

Unavailable

4

BOLT, FLANGE DEEP RECESS

95D32-06020-00

$0.71

5

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

6

NUT, S/L FLANGE

95607-05200-00

$6.39

7

LICENCE LIGHT UNIT

B5U-84745-00-00

$46.32

8

BULB (12V-5W)

2DP-H4347-00-00

$6.33

9

BOLT,HEX. SOCKET BUTTON

90111-05026-00

$6.34

10

COLLAR

90387-05044-00

$11.71

11

DAMPER

B5U-21649-00-00

Unavailable

12

NUT, SPRING

90183-050A6-00

$2.21
