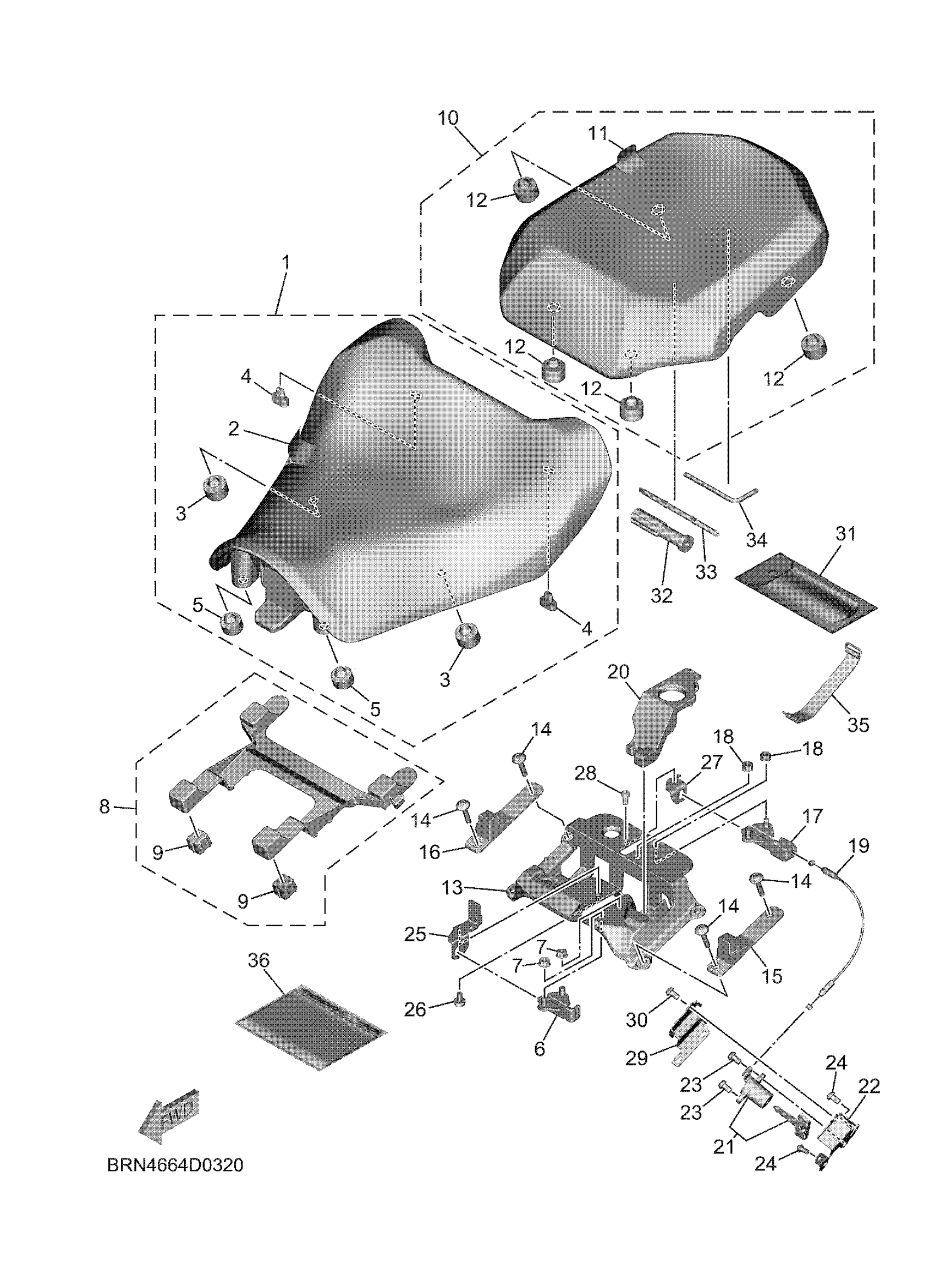

Yamaha MTT9SCB (TRACER 9 CA) BRN6 2025 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

BRN-24710-00-00

$185.99

2

SEAT COVER COMP.

BRN-2470F-00-00

Unavailable

3

STOPPER, MAIN STAND

371-27114-00-00

$7.99

4

PAD, SEAT

B5C-24741-00-00

$3.35

5

STOPPER MAIN STAND

278-27114-00-00

$8.99

6

SEAT LOCK ASSY

3P6-24780-00-00

$38.99

7

NUT, FLANGE

95702-06500-00

$2.39

8

SEAT BRACKET ASSY

B5U-24708-00-00

$42.99

9

DAMPER, SEAT

2PP-24723-00-00

$7.99

10

TANDEM SEAT ASSY

BRN-24750-00-00

$132.99

11

SEAT COVER COMP. ,2

BRN-2470H-00-00

Unavailable

12

STOPPER, MAIN STAND

4GL-27114-00-00

Unavailable

13

BRACKET, SEAT LOCK

2PP-2478X-01-00

Unavailable

14

BOLT,HEX. SOCKET BUTTON

90111-06053-00

Unavailable

15

BRACKET, SEAT BACK

B5C-24797-00-00

$14.99

16

BRACKET, SEAT BACK 2

B5C-2479L-00-00

Unavailable

17

SEAT LOCK ASSY

B5U-24780-00-00

Unavailable

18

NUT, FLANGE

95702-06500-00

$2.39

19

WIRE, SEAT LOCK 2

BRN-2479D-00-00

Unavailable

20

PLATE, COVER

B5U-2471P-00-00

Unavailable

21

SEAT LOCK ASSY

3CK-W2470-00-00

Unavailable

22

PLATE, LOCK

BRN-2479K-00-00

Unavailable

23

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

24

BOLT, BUTTON HEAD

92012-05010-00

Unavailable

25

BRACKET, SEAT LEVER 1

2PP-2475H-00-00

Unavailable

26

BOLT, FLANGE

95817-06010-00

Unavailable

27

BRACKET, SEAT LEVER 2

2PP-2475J-00-00

Unavailable

28

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

29

PLATE

BRN-24792-00-00

Unavailable

30

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

31

TOOL KIT

B5U-28100-00-00

Unavailable

32

GRIP, DRIVER

2H7-28151-00-00

Unavailable

33

DRIVER

2GV-28152-00-00

Unavailable

34

WRENCH, HEXAGON 8

14B-28164-00-00

Unavailable

35

BAND, BATTERY

2T4-82131-00-00

Unavailable

36

POUCH

B9F-28186-00-00

Unavailable
