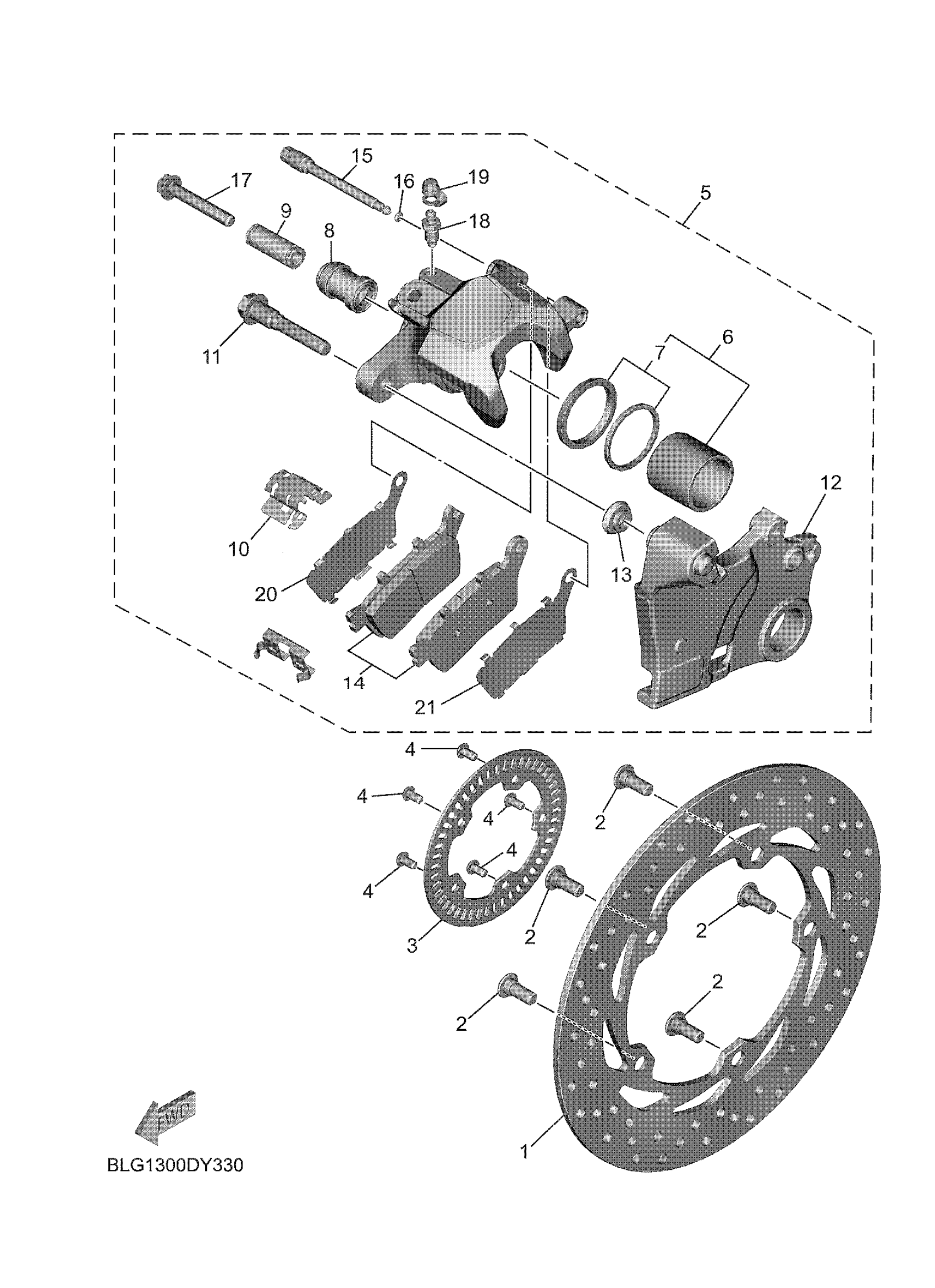

Yamaha MTT9SCB (TRACER 9 CA) BRN6 2025 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISK, REAR BRAKE 2

BRN-2582W-00-00

$127.99

2

BOLT

90109-08046-00

$5.60

3

ROTOR, SENSOR

2PW-2517G-00-00

Unavailable

4

SCREW

90149-05030-00

$8.49

5

CALIPER ASSY, REAR

BLG-2580W-00-00

Unavailable

6

PISTON ASSY, CALIPER

BD5-25802-00-00

Unavailable

7

CALIPER SEAL KIT

5SL-25803-00-00

$19.99

8

BOOT, CALIPER

5SL-25917-00-00

$15.49

9

SLEEVE, CALIPER

5SL-25838-00-00

$13.49

10

SUPPORT, PAD

BD5-25919-50-00

Unavailable

11

PIN, SLIDE

2DF-25914-50-00

$15.49

12

BRACKET, SUPPORT

BLG-25921-50-00

Unavailable

13

BOOT, CALIPER

3JD-25917-00-00

$8.99

14

BRAKE PAD KIT 2

BD5-25806-00-00

Unavailable

15

PIN, PAD

2DF-25924-50-00

Unavailable

16

STOPPER

3P6-25925-00-00

Unavailable

17

BOLT

5SL-25926-00-00

Unavailable

18

SCREW, BLEED

8CR-25824-00-00

Unavailable

19

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

20

SHIM, CALIPER

BD5-25827-00-00

Unavailable

21

SHIM, CALIPER

BD5-25827-10-00

Unavailable
