Partiron

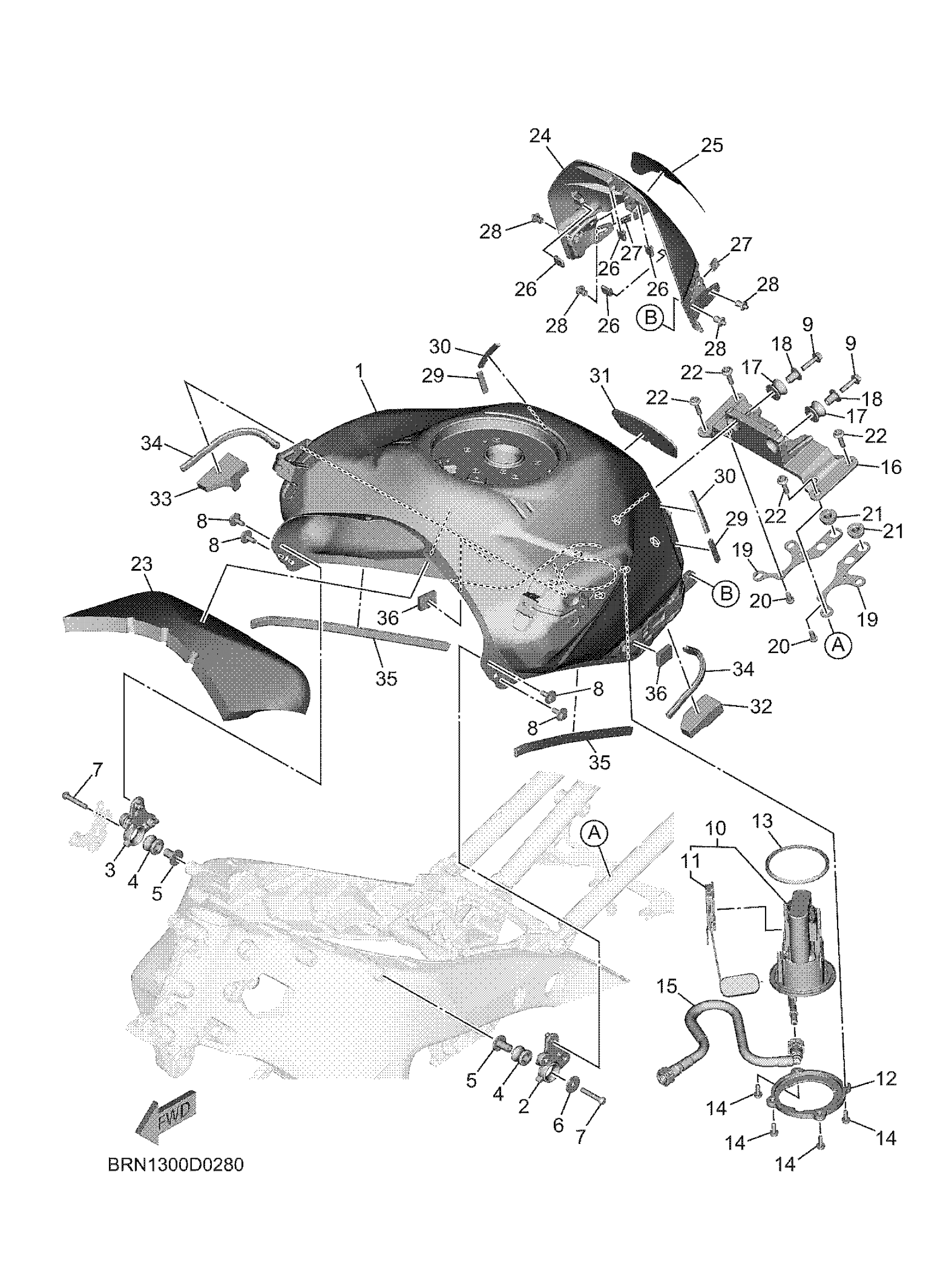

Yamaha MTT9SCB (TRACER 9 CA) BRN6 2025 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BRN-YK241-00-P1

Unavailable

2

BRACKET, FUEL TANK

B7N-24191-00-00

Unavailable

3

BRACKET, FUEL TANK

B7N-24192-00-00

$24.83

4

GROMMET

90480-18008-00

$2.96

5

COLLAR

90387-06266-00

$3.67

6

WASHER PLATE 137241870000

90201-06072-00

$5.98

7

BOLT, BUTTON HEAD

92012-06035-00

$1.61

8

BOLT, WITH WASHER

90119-06051-00

$5.87

9

BOLT, FLANGE

95817-06025-00

Unavailable

10

FUEL PUMP COMP.

BRN-13907-00-00

Unavailable

11

SENDER

BRN-85752-00-00

Unavailable

12

BRACKET, FUEL PUMP

1RC-24491-00-00

Unavailable

13

O-RING

1RC-24486-00-00

$22.90

14

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

$5.86

15

PIPE, FUEL 1

B7N-13971-00-00

Unavailable

16

BRACKET, TANK FITT

BLG-2413Y-00-00

Unavailable

17

GROMMET

3D7-24339-00-00

Unavailable

18

COLLAR

90387-06136-00

Unavailable

19

STAY

BRN-24662-00-00

Unavailable

20

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

21

GROMMET(4FU)

90480-13567-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

Unavailable

23

DAMPER, PLATE 1

BRN-2414H-00-00

Unavailable

24

PROTECTOR, FUEL TANK

BRN-24141-00-P1

Unavailable

25

SEAT, TANK PROTECTOR

BRN-24193-00-00

Unavailable

26

DAMPER, SIDE COVER

5PW-2411J-01-00

Unavailable

27

NUT, SPRING(1YT)

90183-05042-00

Unavailable

28

RIVET

90269-06019-00

Unavailable

29

DAMPER, PLATE

90520-04021-00

Unavailable

30

DAMPER, PLATE

90520-05030-00

Unavailable

31

DAMPER, LOCATING 1

BRN-24181-00-00

Unavailable

32

DAMPER, LOCATING 4

BRN-24184-00-00

Unavailable

33

DAMPER, LOCATING 5

BRN-24185-00-00

Unavailable

34

MOLE, FUEL TANK 1

BRN-2418B-00-00

Unavailable

35

MOLD, FUEL TANK

BRN-24188-00-00

Unavailable

36

DAMPER, PLATE

90520-06010-00

Unavailable
