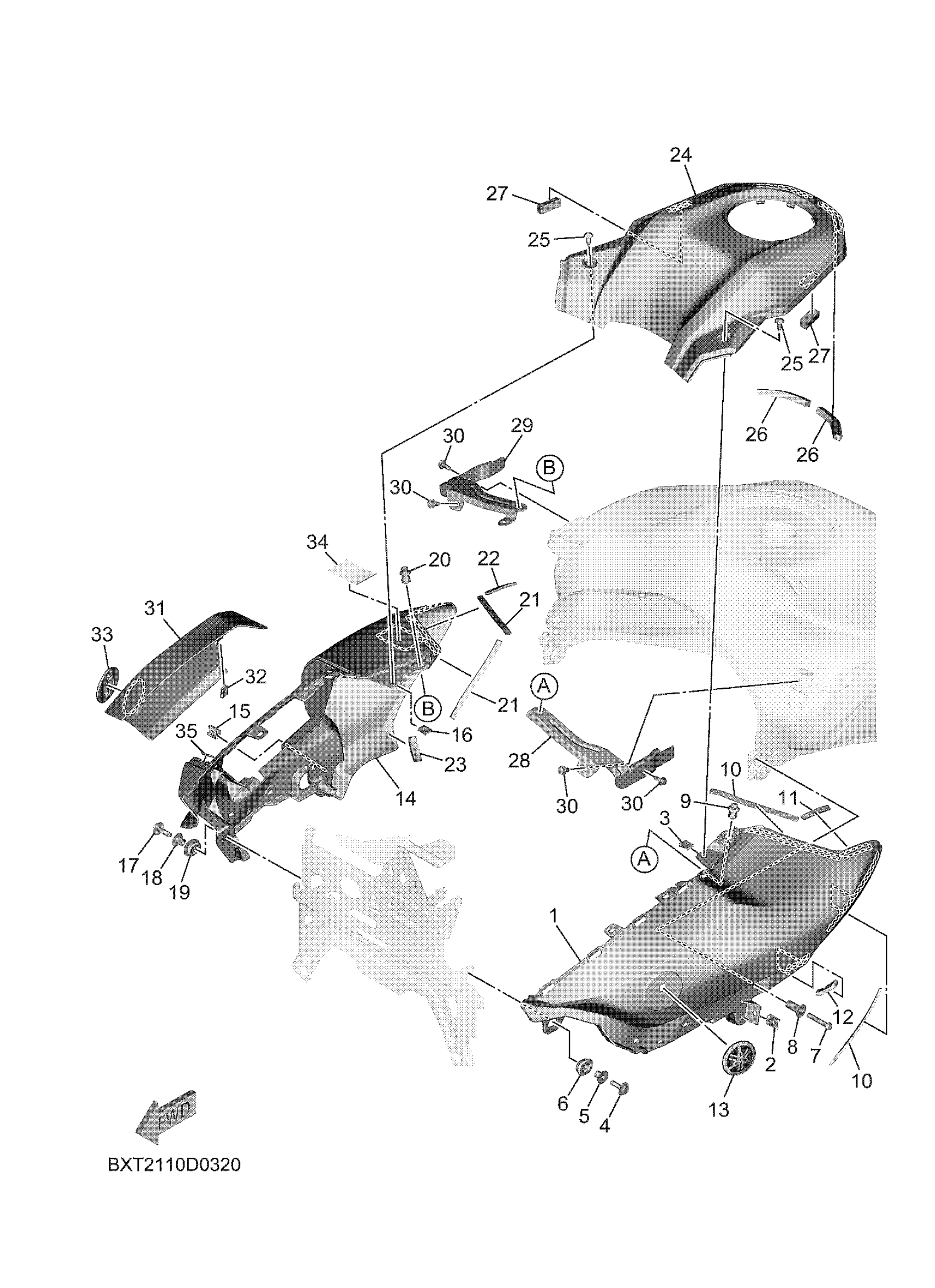

Yamaha MTT9SCB (TRACER 9 CA) BRN6 2025 FUEL TANK 4 Diagram

#

Description
Price

1

COVER, SIDE 1

BRN-24129-00-P1

Unavailable

2

NUT, SPRING

90183-062A1-00

$1.75

3

NUT, SPRING(1YT)

90183-05042-00

$0.86

4

BOLT, WITH WASHER(81H)

90119-06118-00

$5.75

5

COLLAR

90387-06204-00

$5.75

6

GROMMET(4BH)

90480-01559-00

$4.48

7

BOLT, BUTTON HEAD

92012-06035-00

$1.61

8

COLLAR

90387-06M82-00

Unavailable

9

RIVET

90269-08005-00

$2.52

10

DAMPER, PLATE

90520-03019-00

$0.73

11

DAMPER 4

2C0-28247-00-00

$2.37

12

DAMPER 4

4B5-2112J-00-00

Unavailable

13

EMBLEM

1RC-2413B-02-00

Unavailable

14

COVER, SIDE 2

BRN-24139-00-P1

Unavailable

15

NUT, SPRING

90183-062A1-00

$1.75

16

NUT, SPRING(1YT)

90183-05042-00

$0.86

17

BOLT, WITH WASHER(81H)

90119-06118-00

$5.75

18

COLLAR

90387-06204-00

$5.75

19

GROMMET(4BH)

90480-01559-00

$4.48

20

RIVET

90269-08005-00

$2.52

21

DAMPER, PLATE

90520-03019-00

$0.73

22

DAMPER 4

2C0-28247-00-00

$2.37

23

DAMPER 4

4B5-2112J-00-00

Unavailable

24

COVER, TANK

BRN-241B1-00-00

Unavailable

25

SCREW, ROUND TAPPING

90160-05017-00

Unavailable

26

DAMPER, PLATE

90520-08012-00

Unavailable

27

DAMPER

5LP-82176-01-00

Unavailable

28

BRACKET, FUEL TANK 1

BRN-24291-00-00

Unavailable

29

BRACKET, FUEL TANK 2

BRN-24292-00-00

Unavailable

30

BOLT, FLANGE

90105-05014-00

Unavailable

31

LID, COVER

BRN-2177B-00-P1

Unavailable

32

NUT, SPRING(1YT)

90183-05042-00

$0.86

33

EMBLEM

1RC-2413B-02-00

Unavailable

34

LABEL, WARNING GENERAL INFO.

29P-2816R-01-00

Unavailable

35

LABEL, CAUTION

2DF-24877-01-00

Unavailable
