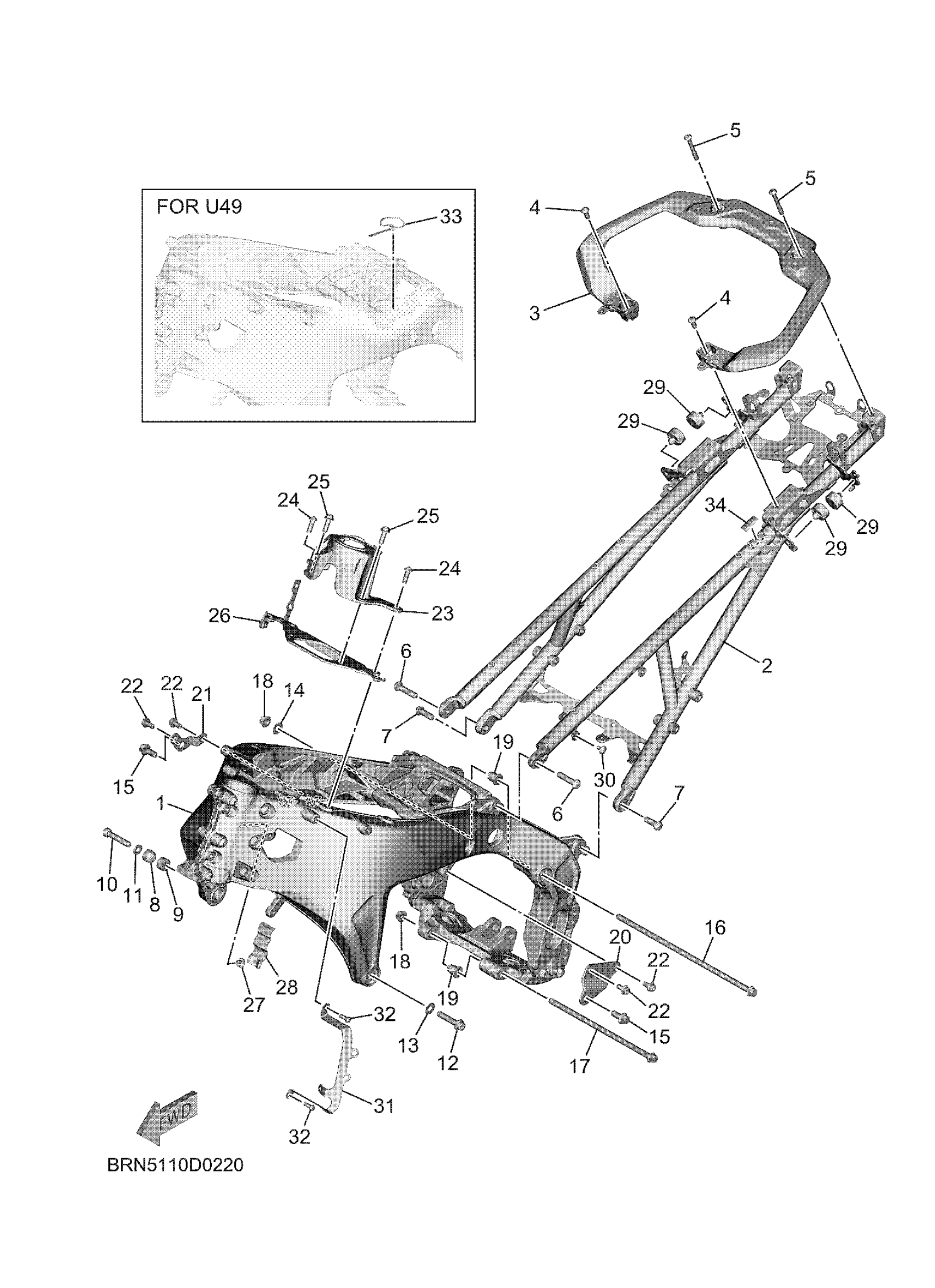

Yamaha MTT9SCB (TRACER 9 CA) BRN6 2025 FRAME Diagram

#

Description
Price

1

FRAME SUB COMP.

BRN-2111B-09-00

Unavailable

2

REAR FRAME COMP.

BRN-21190-09-00

Unavailable

3

HANDLE, SEAT

BRN-24773-09-00

Unavailable

4

SCREW, WITH WASHER

90159-08005-00

$2.49

5

SCREW, WITH WASHER

90159-08006-00

$3.28

6

SCREW

90149-10077-00

$2.75

7

SCREW

90149-10060-00

$7.49

8

BOSS, ENGINE MOUNT

2C0-21414-00-00

$28.99

9

BOSS, ENGINE MOUNT

5VY-21424-00-00

$30.99

10

BOLT, HEXAGON SOCK

90110-10058-00

Unavailable

11

WASHER, PLATE

90201-10083-00

$2.49

12

BOLT, HEXAGON SOCK

90110-10058-00

Unavailable

13

WASHER PLATE

90201-10084-00

Unavailable

14

WASHER, PLATE(47X)

90201-101J1-00

$8.49

15

BOLT, FLANGE DEEP RECESS

95D37-10025-00

$1.96

16

BOLT FLANGE

90105-10487-00

Unavailable

17

BOLT, FLANGE

90105-10437-00

Unavailable

18

NUT(4KG)

90179-10658-00

Unavailable

19

BOLT, ENGINE ADJUSTING

4C8-21495-00-00

Unavailable

20

STAY, ENGINE 1

B5U-21315-00-00

Unavailable

21

STAY, ENGINE 2

B5U-21316-00-00

Unavailable

22

BOLT(2KF)

90109-085E2-00

Unavailable

23

STAY 1

BME-2137F-00-00

Unavailable

24

BOLT

90109-08247-00

Unavailable

25

91312-08030

91312-08030-00

Unavailable

26

STAY 2

BRN-2137G-00-00

Unavailable

27

PLUG, BLIND

5VX-21289-00-00

Unavailable

28

DAMPER

1HP-H2176-01-00

Unavailable

29

WEIGHT

B5U-27913-00-00

Unavailable

30

BOLT,HEX. SOCKET BUTTON

90111-06119-00

Unavailable

31

BRACKET 4

BRN-2161E-00-00

Unavailable

32

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

33

BAND

1UA-82591-00-00

Unavailable

34

LABEL, CAUTION

3TB-24877-A1-00

Unavailable
