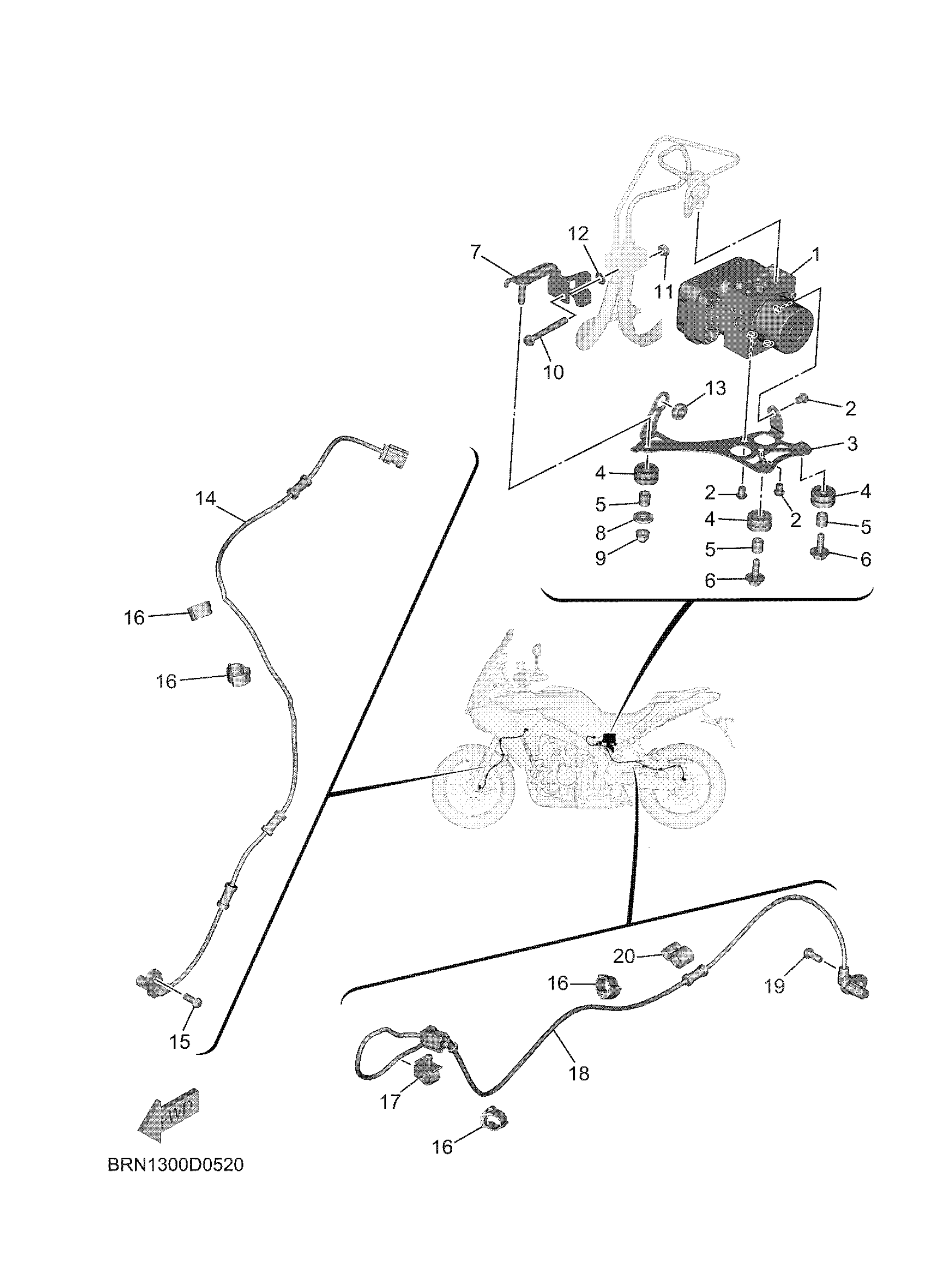

Yamaha MTT9SCB (TRACER 9 CA) BRN6 2025 ELECTRICAL 3 Diagram

#

Description
Price

1

HYDRAULIC UNIT ASS

BRN-85930-09-00

Unavailable

2

BOLT, HEXAGON SOCK

90111-06204-00

Unavailable

3

BRACKET, UNIT

BRN-85991-00-00

Unavailable

4

GROMET (3X3)

90480-14229-00

$8.49

5

COLLAR (J10)

90387-06026-00

$8.49

6

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

7

BRACKET

BRN-85542-00-00

Unavailable

8

WASHER, PLATE (8K2)

90201-06778-00

$4.46

9

NUT, CROWN(2GM)

90176-06065-00

$9.49

10

BOLT, SMALL FLANGE

95027-06045-00

$3.28

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

WASHER, PLATE

90201-06034-00

$8.49

13

GROMMET (2T4)

90480-12237-00

$2.55

14

WHEEL SENSOR ASSY, FRONT

BRN-85970-00-00

Unavailable

15

BOLT, BUTTON HEAD

92017-06014-00

$4.29

16

CLAMP

90464-14010-00

Unavailable

17

CLAMP

90464-14013-00

Unavailable

18

WHEEL SENSOR ASSY,

BLG-85980-00-00

Unavailable

19

BOLT, BUTTON HEAD(4NK)

92014-06014-00

Unavailable

20

CLAMP(4GL)

90464-10233-00

Unavailable
