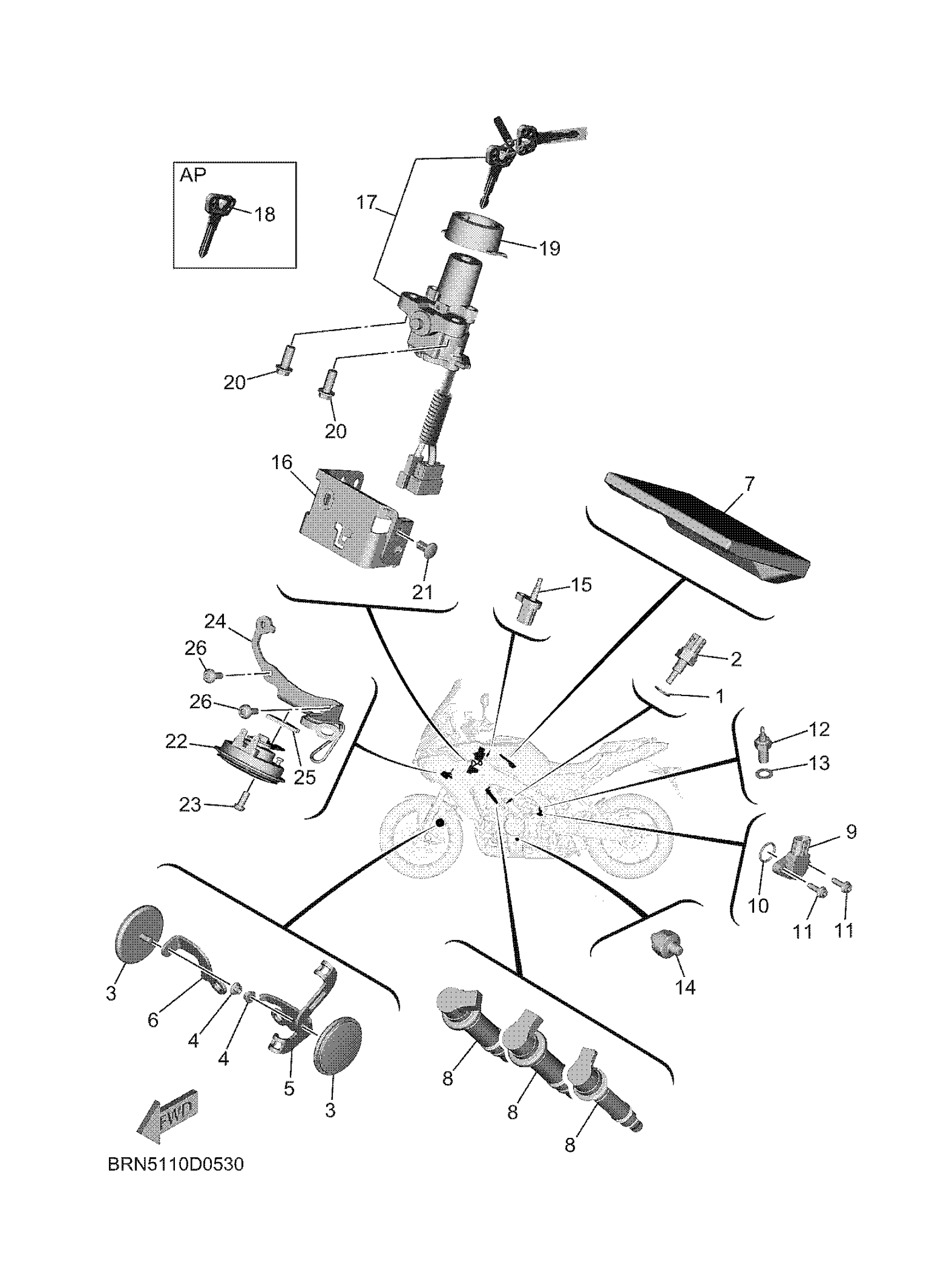

Yamaha MTT9SCB (TRACER 9 CA) BRN6 2025 ELECTRICAL 2 Diagram

#

Description
Price

1

GASKET

90430-10004-00

$7.49

2

THERMO UNIT

52B-H3591-00-00

$34.99

3

REFLECTOR, REAR 1

59C-85131-00-00

Unavailable

4

NUT, FLANGE

95702-05500-00

$0.38

5

BRACKET, REFLECTOR 1

BLW-85112-00-00

$25.99

6

BRACKET, REFLECTOR 2

BLW-85122-00-00

$8.49

7

ENGINE CONTROL UNI

BRN-8591A-10-00

$1,019.99

8

IGNITION COIL ASSY

BME-82310-00-00

$90.99

9

SENSOR, GEAR POSITION

2CR-85899-10-00

$113.99

10

O-RING

93210-17008-00

Unavailable

11

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

12

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

13

GASKET (1KH,1.0T)

90430-10148-00

$5.60

14

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

$70.99

15

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

$34.99

16

COVER, CONNECTOR

BRN-82599-00-00

Unavailable

17

MAIN SWITCH STEERING LOCK

BLG-82501-12-00

Unavailable

18

BLANK KEY

4BH-82511-09-00

Unavailable

19

COVER, MAIN SWITCH

BME-82568-00-00

Unavailable

20

BOLT, WASHER BASED(3JP)

90105-081A1-00

Unavailable

21

RIVET

90269-07015-00

Unavailable

22

HORN

BME-83371-00-00

Unavailable

23

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

24

BRACKET, HORN

BRN-23377-00-00

Unavailable

25

HOLDER

B5U-8331M-00-00

Unavailable

26

BOLT

90111-06029-00

Unavailable
