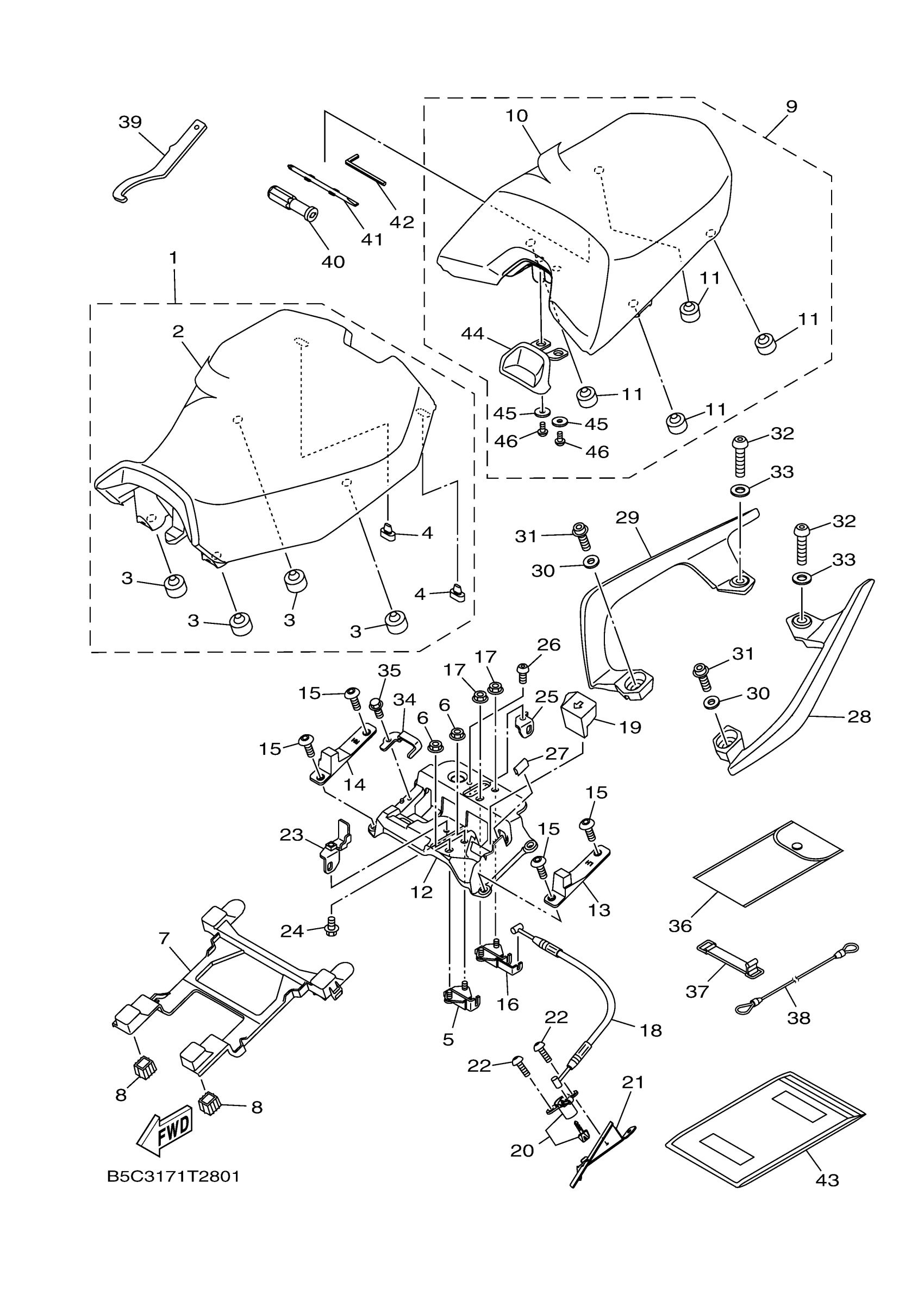

Yamaha MTT9KGY (TRACER 900) B5C7 2019 SEAT Diagram
#
2
SEAT COVER COMP.
B5C-2470F-00-00
Unavailable
10
SEAT COVER COMP. ,2
B5C-2470H-00-00
Unavailable
12
BRACKET, SEAT LOCK
2PP-2478X-01-00
Unavailable
14
BRACKET, SEAT BACK 2
B5C-2479L-00-00
Unavailable
15
BOLT,HEX. SOCKET BUTTON
90111-06053-00
Unavailable
16
SEAT LOCK ASSY
4BP-24780-00-00
Unavailable
18
WIRE, SEAT LOCK 2
B5C-2479D-00-00
Unavailable
19
CAP
2SC-2482H-00-00
Unavailable
20
SEAT LOCK ASSY
3CK-W2470-00-00
Unavailable
21
PLATE, LOCK
B5C-2479K-00-00
Unavailable
22
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
23
BRACKET, SEAT LEVER 1
2PP-2475H-00-00
Unavailable
24
BOLT, FLANGE
95817-06010-00
Unavailable
25
BRACKET, SEAT LEVER 2
2PP-2475J-00-00
Unavailable
26
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
27
MOLD, SEAT
34B-24785-00-00
Unavailable
28
ASSIST, GRIP
B5C-2474A-00-00
Unavailable
29
ASSIST,GRIP 2
B5C-2474W-00-00
Unavailable
30
WASHER(6TC)
92907-08200-00
Unavailable
31
BOLT (3LD)
90109-087F1-00
Unavailable
32
BOLT, BUTTON HEAD
92017-10040-00
Unavailable
33
WASHER, PLAIN(3BM)
92907-10200-00
Unavailable
34
BRACKET, HELMET HA
2PP-2115J-00-00
Unavailable
35
BOLT, FLANGE(2UJ)
95024-06012-00
Unavailable
36
TOOL KIT
2PP-28100-01-00
Unavailable
37
BAND, BATTERY
3TJ-82131-00-00
Unavailable
38
HELMET HANGER ASSY
20S-21308-00-00
Unavailable
39
SPANNER, SPECIAL
1RC-28135-00-00
Unavailable
40
GRIP, DRIVER
2H7-28151-00-00
Unavailable
41
DRIVER
2GV-28152-00-00
Unavailable
42
WRENCH, HEXAGON 8
23P-28164-00-00
Unavailable
43
POUCH
4KG-28186-11-00
Unavailable
44
PLATE, COVER
B5C-2479R-00-P0
Unavailable
45
WASHER, PLATE
90201-06085-00
Unavailable
46
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
