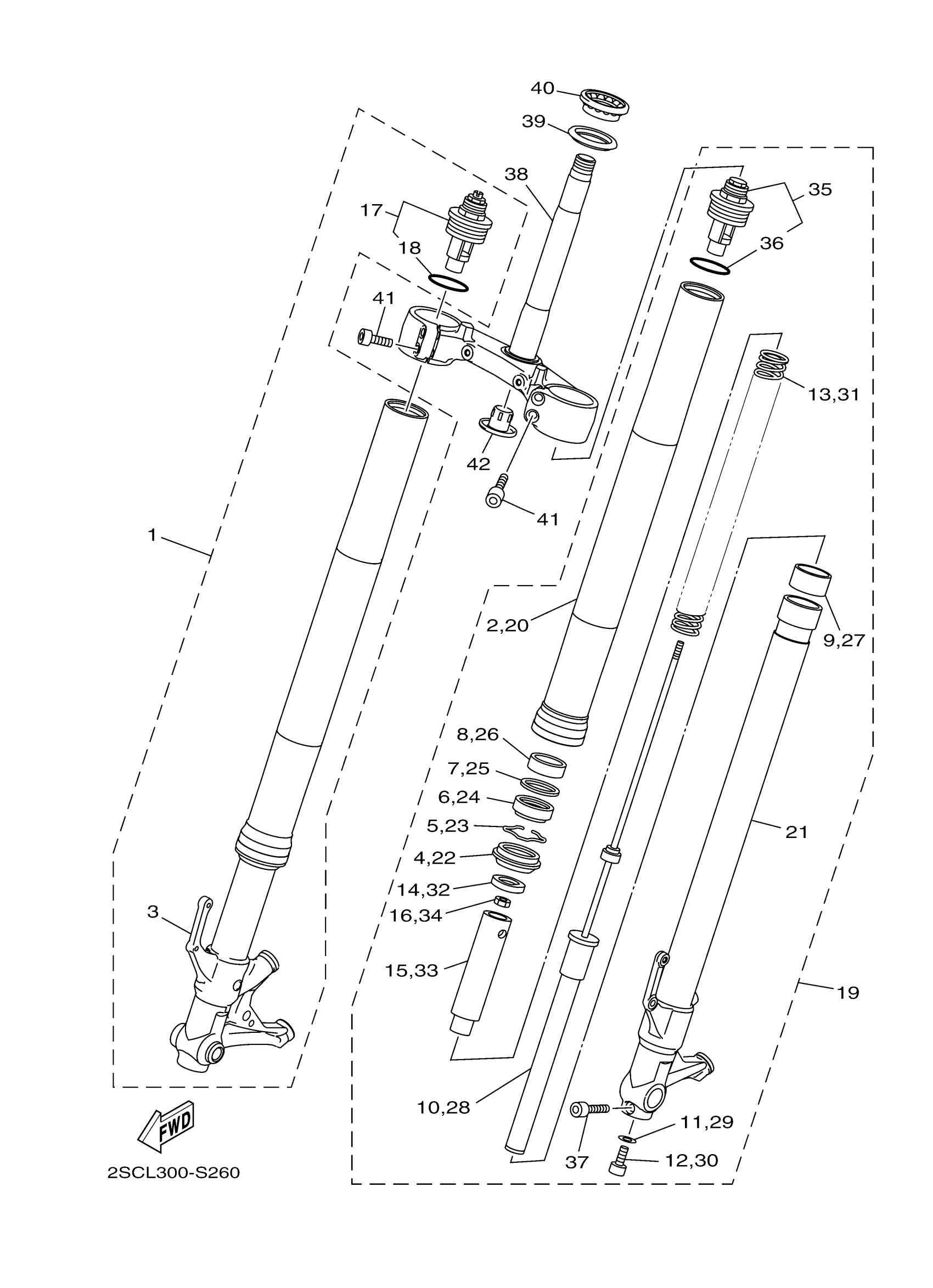

Yamaha MTT9KGY (TRACER 900) B5C7 2019 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (R.H)
B5C-23103-00-00
Unavailable
2
TUBE, OUTER (L.H)
1RC-23126-40-00
Unavailable
10
CYLINDER COMP., FRONT FORK
B5C-23170-00-00
Unavailable
13
SPRING, FRONT FORK
2PP-23141-00-00
Unavailable
16
NUT
3LC-23357-00-00
Unavailable
17
BOLT, CAP
2PP-23111-10-00
Unavailable
18
O-RING
3XJ-23147-L0-00
Unavailable
19
FRONT FORK ASSY (L.H)
2SC-23102-40-00
Unavailable
20
TUBE, OUTER (L.H)
1RC-23126-40-00
Unavailable
21
INNER TUBE COMP.1
BS2-23110-01-00
Unavailable
28
CYLINDER COMP., FR
2PP-23170-00-00
Unavailable
31
SPRING, FRONT FORK
2PP-23141-00-00
Unavailable
34
NUT
3LC-23357-00-00
Unavailable
35
BOLT, CAP
2PP-23111-00-00
Unavailable
36
O-RING
3XJ-23147-L0-00
Unavailable
37
BOLT, SOCKET
91314-08035-00
Unavailable
38
UNDER BRACKET COMP
2PP-23340-00-00
Unavailable
39
SEAL, STEERING
3FV-23462-00-00
Unavailable
40
BEARING(3FV)
93399-99932-00
Unavailable
41
BOLT,SOCKET
91314-08030-00
Unavailable
42
COVER, LOWER 1
4KM-23123-01-00
Unavailable
