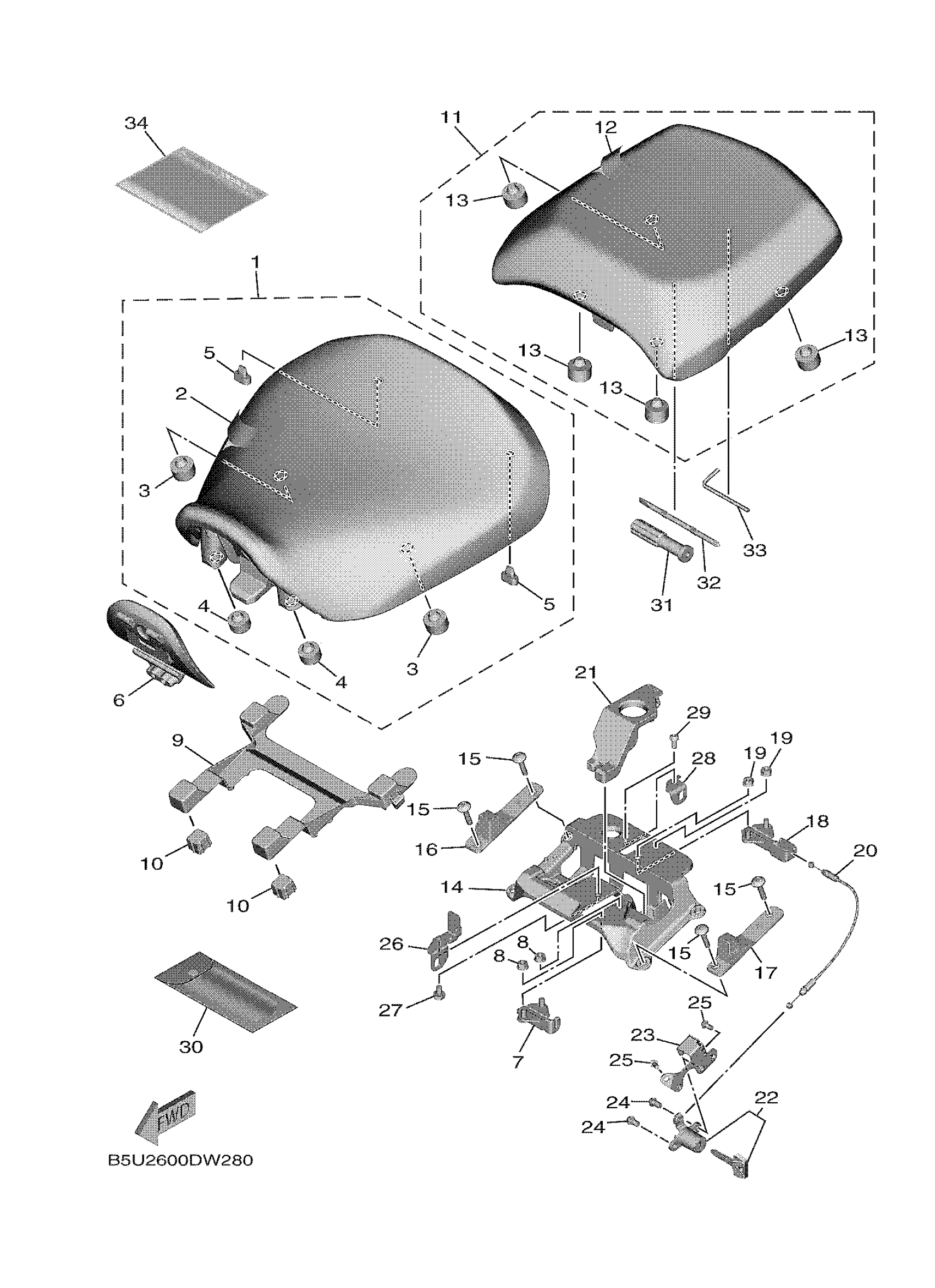

Yamaha MTT9GTNS (TRACER 9 GT) BAPD 2022 SEAT Diagram
#
Description
Price
2
SEAT COVER COMP.
BAP-2470F-00-00
Unavailable
12
SEAT COVER COMP. ,
BAP-2470H-00-00
Unavailable
13
STOPPER, MAIN STAND
4GL-27114-00-00
Unavailable
14
BRACKET, SEAT LOCK
2PP-2478X-01-00
Unavailable
15
BOLT,HEX. SOCKET BUTTON
90111-06053-00
Unavailable
16
BRACKET, SEAT BACK
B5C-24797-00-00
Unavailable
17
BRACKET, SEAT BACK 2
B5C-2479L-00-00
Unavailable
18
SEAT LOCK ASSY
B5U-24780-00-00
Unavailable
20
WIRE, SEAT LOCK 2
B5U-2479D-00-00
Unavailable
21
PLATE, COVER
B5U-2471P-00-00
Unavailable
22
SEAT LOCK ASSY
3CK-W2470-00-00
Unavailable
23
PLATE, LOCK
B5U-2479K-00-00
Unavailable
24
BOLT, BUTTON HEAD
92012-06010-00
Unavailable
25
BOLT, BUTTON HEAD
92012-05010-00
Unavailable
26
BRACKET, SEAT LEVER 1
2PP-2475H-00-00
Unavailable
27
BOLT, FLANGE
95817-06010-00
Unavailable
28
BRACKET, SEAT LEVER 2
2PP-2475J-00-00
Unavailable
29
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
30
TOOL KIT
BAP-28100-00-00
Unavailable
31
GRIP, DRIVER
2H7-28151-00-00
Unavailable
32
DRIVER
2GV-28152-00-00
Unavailable
33
WRENCH, HEXAGON 8
23P-28164-00-00
Unavailable
34
POUCH
4KG-28186-11-00
Unavailable
