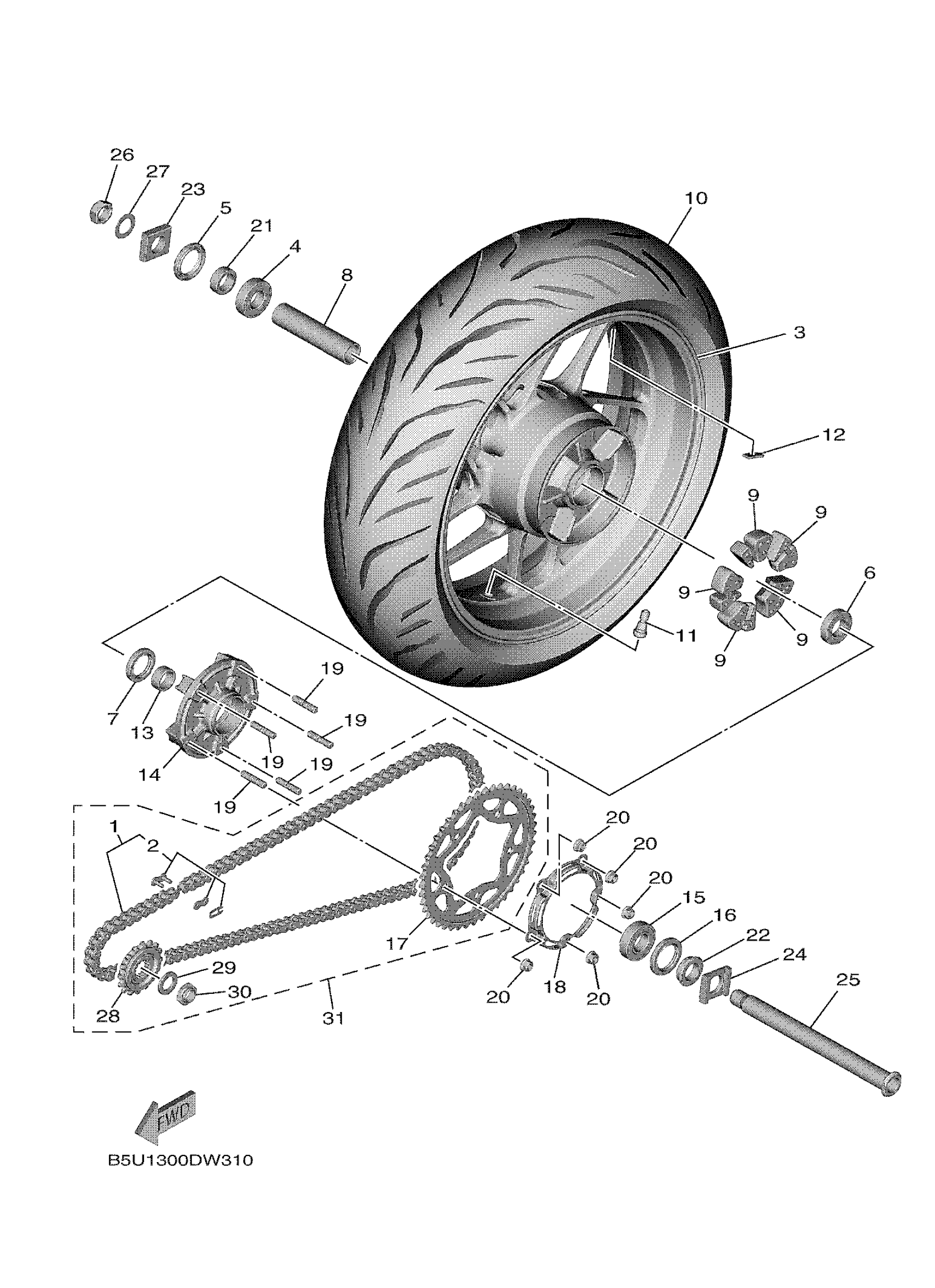

Yamaha MTT9GTNS (TRACER 9 GT) BAPD 2022 REAR WHEEL Diagram
#
Description
Price
1
SET, CHAIN
94A40-18118-00
Unavailable
9
DAMPER
BD5-25364-00-00
Unavailable
10
TIRE (180/55ZR17M/C 73W)
94118-17092-00
Unavailable
17
SPROCKET, DRIVEN (
B7N-25445-10-00
Unavailable
18
BRACKET 1
B7N-2537W-10-00
Unavailable
19
BOLT, STUD
90116-10048-00
Unavailable
20
NUT, S/L FLANGE
95602-10200-00
Unavailable
21
COLLAR, WHEEL
13S-25376-00-00
Unavailable
22
COLLAR
90387-28029-00
Unavailable
23
PULLER, CHAIN 1
4XV-25388-00-00
Unavailable
24
PULLER, CHAIN 2
4XV-25389-00-00
Unavailable
25
AXLE, WHEEL
4XV-25381-10-00
Unavailable
26
NUT SELF-LOCKING
90185-24002-00
Unavailable
27
WASHER PLATE
90201-25027-00
Unavailable
28
SPROCKET, DRIVE
2CR-17460-00-00
Unavailable
29
WASHER, CONICAL SPRING
90208-22002-00
Unavailable
30
NUT
90179-22018-00
Unavailable
31
CHAIN & SPROCKET K
BAP-W001A-00-00
Unavailable
