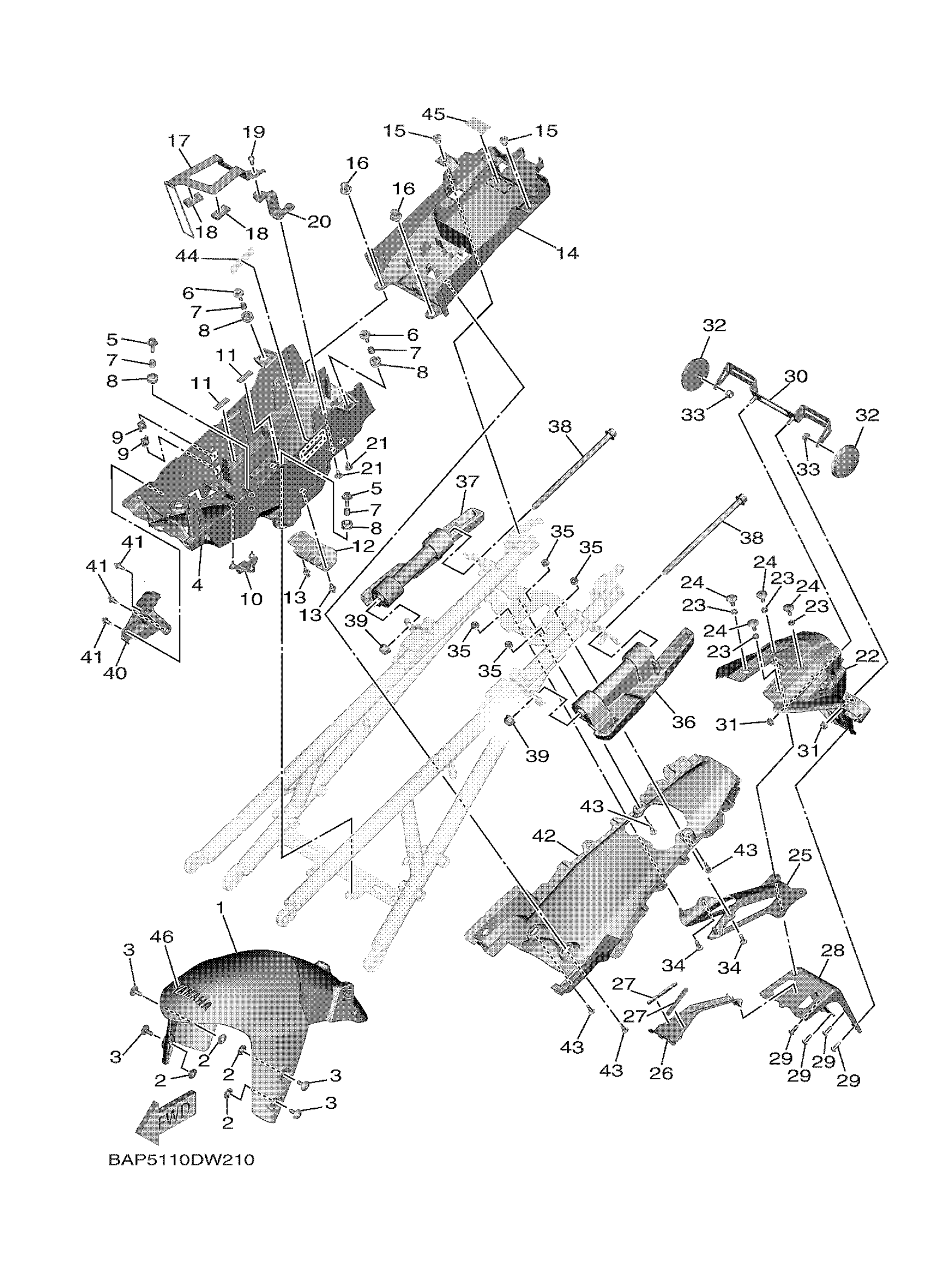

Yamaha MTT9GTNS (TRACER 9 GT) BAPD 2022 FENDER Diagram
#
1
FENDER, FRONT
B7N-21511-00-P3
Unavailable
3
BOLTHEX. SOCKET BUTTON
90111-06191-00
Unavailable
4
BOX, BATTERY 1
B7N-8212B-01-00
Unavailable
5
BOLT WITH WASHER
90119-06313-00
Unavailable
9
NUT, SPRING(4ES)
90183-06069-00
Unavailable
12
LID
B7N-2160F-00-00
Unavailable
14
BOX
B5U-2160E-01-00
Unavailable
16
RIVET(4JH)
90269-07076-00
Unavailable
17
BAND, BATTERY
B7N-82137-00-00
Unavailable
18
DAMPER PLATE
90520-06009-00
Unavailable
19
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
20
BRACKET, REAR STAY
B7N-21688-00-00
Unavailable
21
BOLT,HEX. SOCKET BUTTON
90111-05049-00
Unavailable
22
GUARD, MUD
B7N-21629-00-00
Unavailable
23
COLLAR
90387-06106-00
Unavailable
24
BOLT,HEX. SOCKET BUTTON
90111-06190-00
Unavailable
25
STAY 1
B5U-2164F-00-00
Unavailable
26
COVER, REAR FENDER
2PP-2163E-01-00
Unavailable
27
DAMPER, PLATE
90520-04020-00
Unavailable
28
STAY, PLATE
B7N-21682-00-00
Unavailable
29
SCREW, ROUND TAPPING
90160-05012-00
Unavailable
30
BRACKET, LICENSE
1RC-84751-00-00
Unavailable
31
NUT, SELF-LOCKING
95617-06100-00
Unavailable
32
REFLECTOR, REAR 1
449-85131-02-00
Unavailable
33
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
34
BOLT
90111-06046-00
Unavailable
35
NUT, U FLANGE
95604-06200-00
Unavailable
36
STAY ASSY. ,1
BAP-21880-00-00
Unavailable
37
STAY ASSY. ,2
BAP-21890-00-00
Unavailable
38
BOLT, FLANGE
90105-10493-00
Unavailable
39
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
40
COVER, REAR FENDER
B7N-2163A-00-00
Unavailable
41
RIVET
90269-06001-00
Unavailable
42
COVER, REAR FENDER
B5U-21651-01-00
Unavailable
43
RIVET
90269-06001-00
Unavailable
44
LABEL, CAUTION
3JJ-28446-A2-00
Unavailable
45
LABEL, CAUTION
3TB-24877-A1-00
Unavailable
46
EMBLEM, YAMAHA
99244-00080-00
Unavailable
