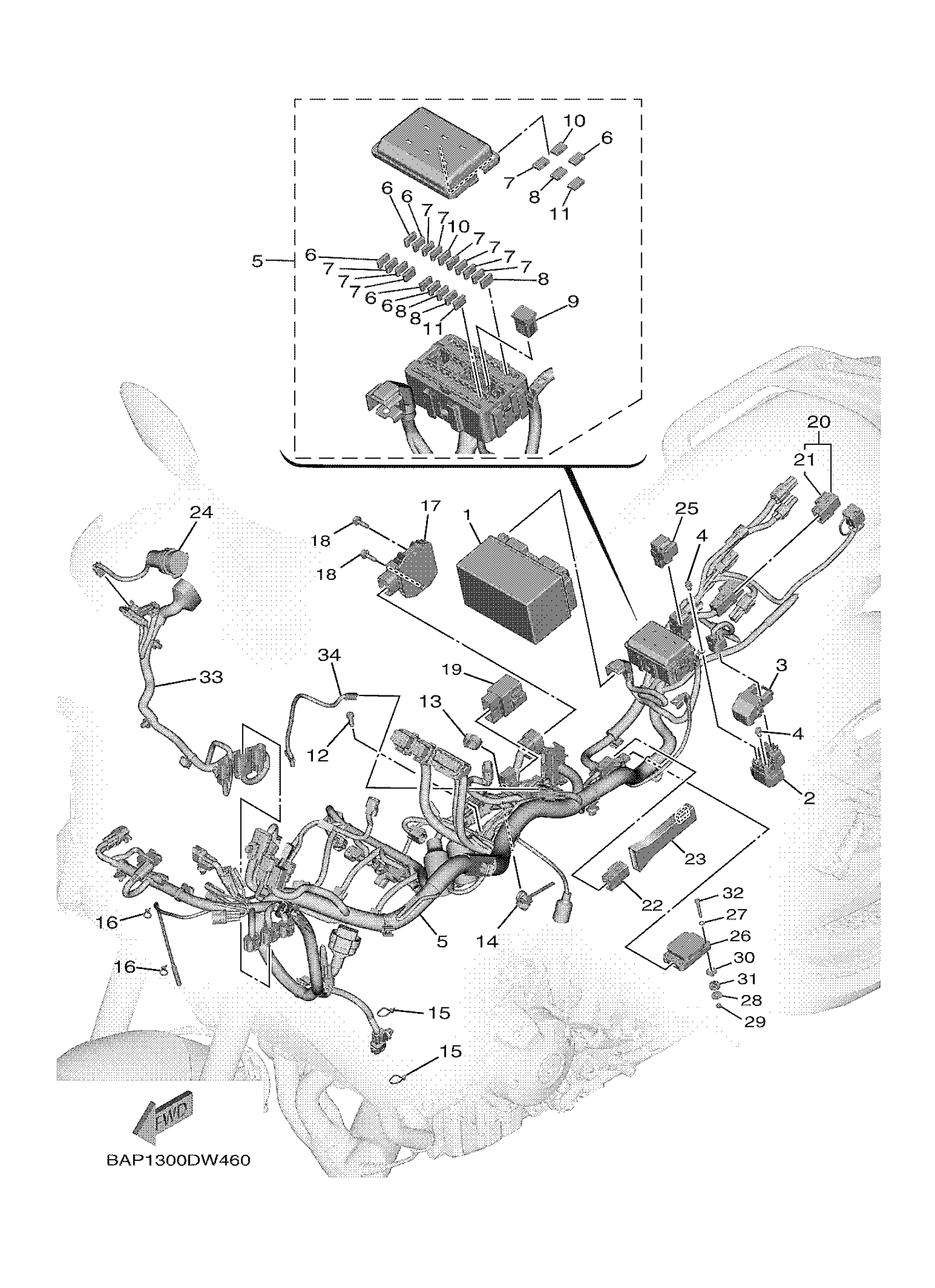

Yamaha MTT9GTNS (TRACER 9 GT) BAPD 2022 ELECTRICAL 1 Diagram

#

Description
Price

1

BATTERY YTZ10S

YTZ-10S00-00-00

Unavailable

2

STARTER RELAY ASSY

B7N-81940-00-00

Unavailable

3

COVER, LEAD WIRE

5SL-82119-30-00

$3.74

4

BOLT FLANGE

90105-06230-00

Unavailable

5

WIRE HARNESS ASSY

BAP-82590-62-00

$1,529.99

6

FUSE (2A)

B7N-82151-80-00

$12.49

7

FUSE (7.5A)

B7N-82151-00-00

$13.99

8

FUSE (15A)

B7N-82151-10-00

$12.49

9

FUSE

B7N-82151-B1-00

$15.99

10

FUSE (10A)

B7N-82151-30-00

Unavailable

11

FUSE (30A)

B7N-82151-60-00

$12.49

12

BOLT(3MA)

91312-06016-00

$5.60

13

CLAMP

90464-16003-00

$7.49

14

CLAMP

90464-25009-00

$8.49

15

CLAMP

90465-10098-00

Unavailable

16

CLAMP

90465-10098-00

Unavailable

17

RECTIFIER & REGULATOR ASSY

2CR-81960-01-00

Unavailable

18

BOLT, FLANGE DEEP

95D37-06020-00

Unavailable

19

RELAY ASSY

5VK-81950-43-00

Unavailable

20

RELAY ASSY (1ST-00)

1ST-81950-00-00

Unavailable

21

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

22

RELAY ASSY (5UM-E0)

5UM-81950-E0-00

Unavailable

23

COVER, CONNECTOR

B5U-82599-00-00

Unavailable

24

TERMINAL COMP.

B5U-8254B-00-00

Unavailable

25

RELAY ASSY

5DM-81950-01-00

Unavailable

26

INERTIAL MEASURE,

B7N-8593A-00-00

Unavailable

27

WASHER, PLAIN (646)

92990-04600-00

Unavailable

28

WASHER PLATE

90201-04034-00

Unavailable

29

NUT, U (7LY)

95617-04100-00

Unavailable

30

COLLAR

B7N-83522-00-00

Unavailable

31

GROMMET

B7N-8A8D0-00-00

Unavailable

32

BOLT, HEXAGON SOCKET HEAD

91317-04030-00

Unavailable

33

WIRE, SUB LEAD

B5U-82509-20-00

Unavailable

34

WIRE, SUB LEAD

BAP-82509-30-00

Unavailable
