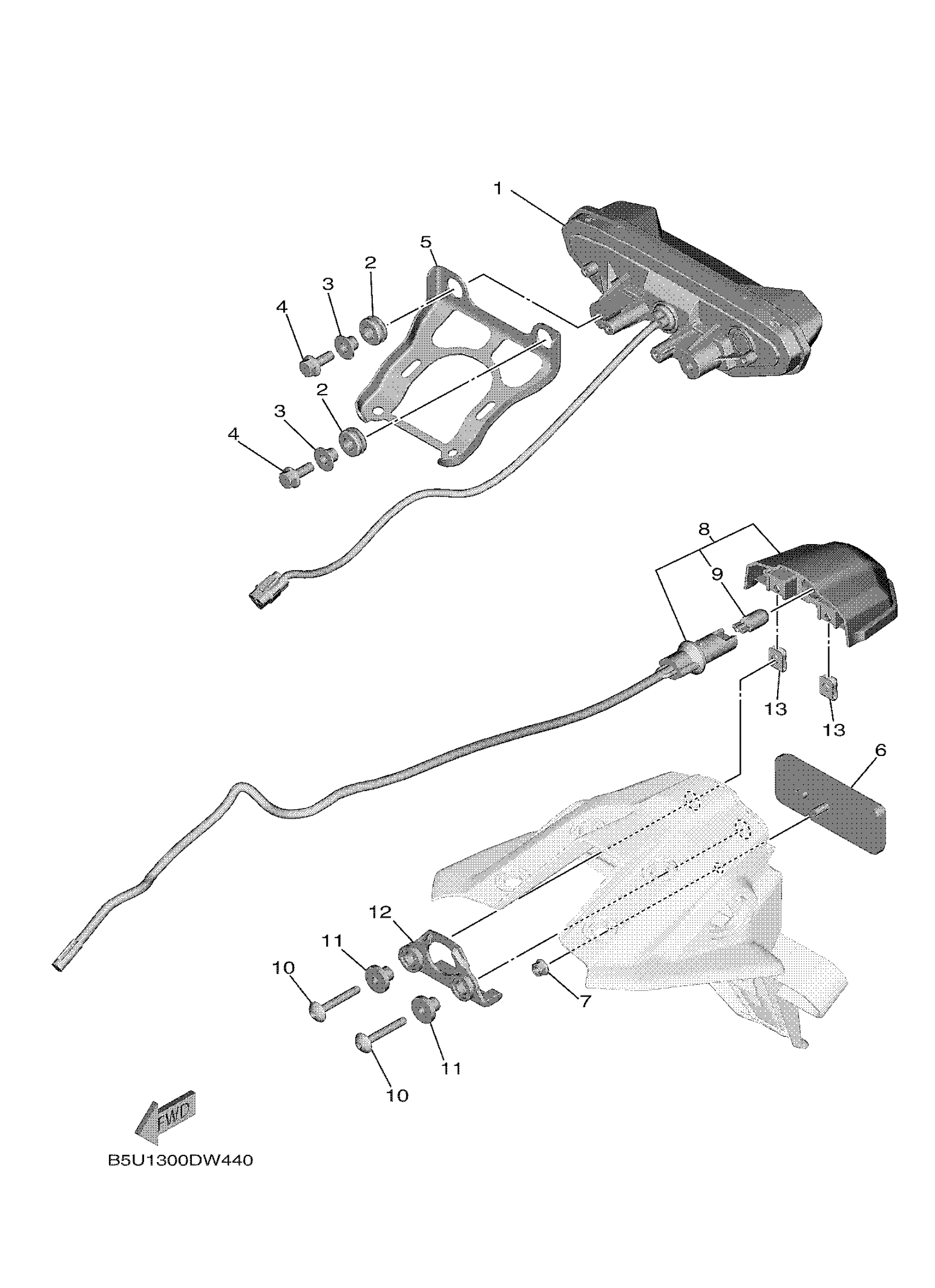

Yamaha MTT9GTMS (TRACER 9 GT) BAP51 2021 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

B5U-84700-00-00

$179.24

2

GROMMET (1E5)

90480-13163-00

$5.55

3

SPACER (4F2)

90560-06201-00

$11.38

4

BOLT, FLANGE DEEP RECESS

95D32-06016-00

$0.38

5

BRACKET, TAILLIGHT

B5U-2117E-00-00

Unavailable

6

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

7

NUT, S/L FLANGE

95607-05200-00

$6.39

8

LICENCE LIGHT UNIT

B5U-84745-00-00

$46.32

9

BULB (12V-5W)

2DP-H4347-00-00

$6.33

10

BOLT,HEX. SOCKET BUTTON

90111-05026-00

$6.34

11

COLLAR

90387-05044-00

$11.71

12

DAMPER

B5U-21649-00-00

Unavailable

13

NUT, SPRING

90183-050A6-00

$2.21
