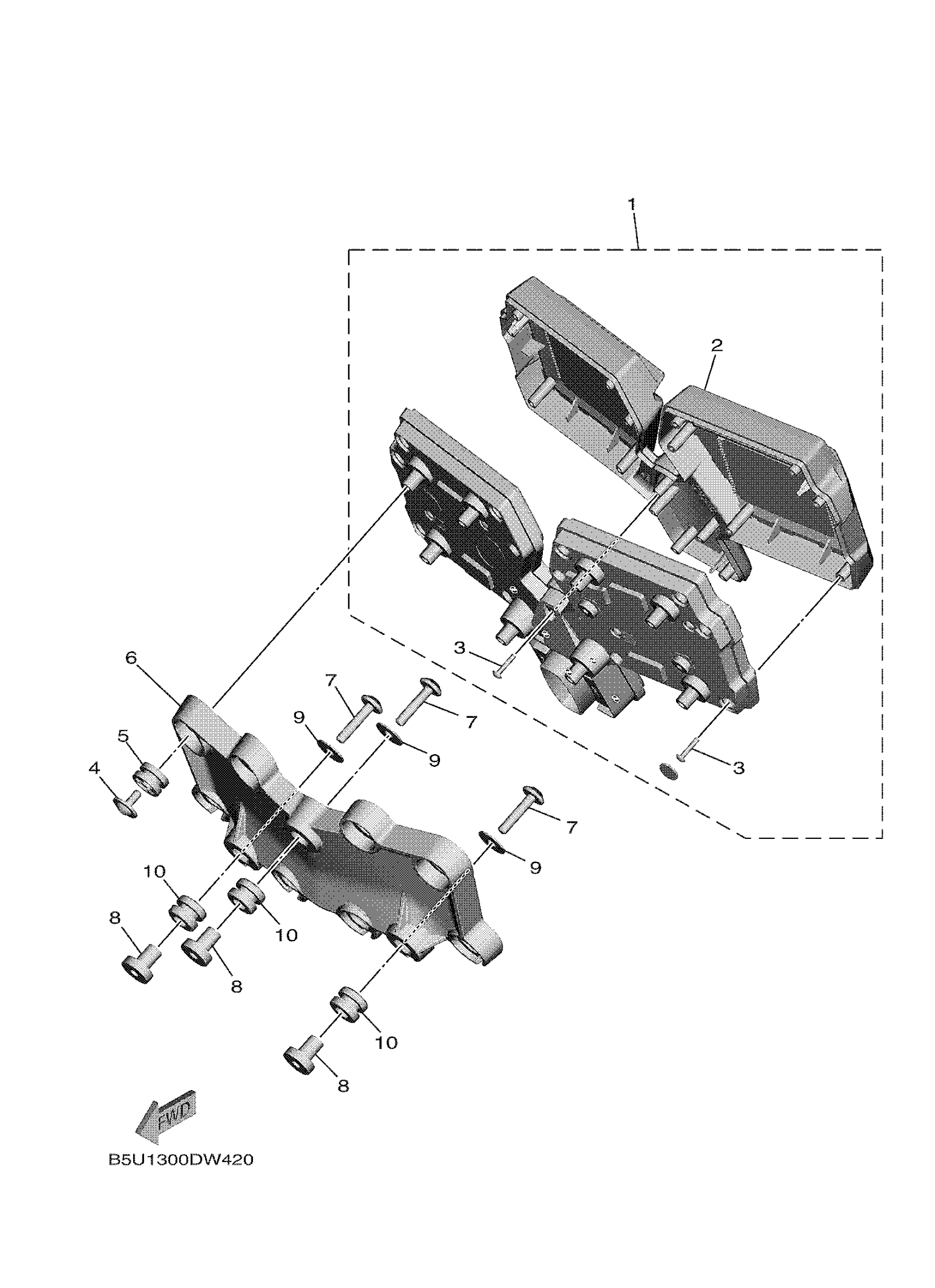

Yamaha MTT9GTMS (TRACER 9 GT) BAP51 2021 METER Diagram

#

Description
Price

1

METER ASSY

BAP-83500-20-00

$2,237.59

2

CASE, METER UPPER

BAP-8353E-20-00

$308.29

3

SCREW, TAPPING

97702-30016-00

Unavailable

4

SCREW, TAPPING

90164-05001-00

$5.86

5

DAMPER

4XV-83513-00-00

$5.98

6

BRACKET, METER

B5U-83519-00-00

$24.78

7

BOLT, HEXAGON SOCKET BUTTON

90111-06142-00

$8.07

8

COLLAR

90387-06357-00

$5.49

9

WASHER, PLATE

90201-06095-00

$5.87

10

GROMMET 839774310000

90480-14023-00

$4.55
