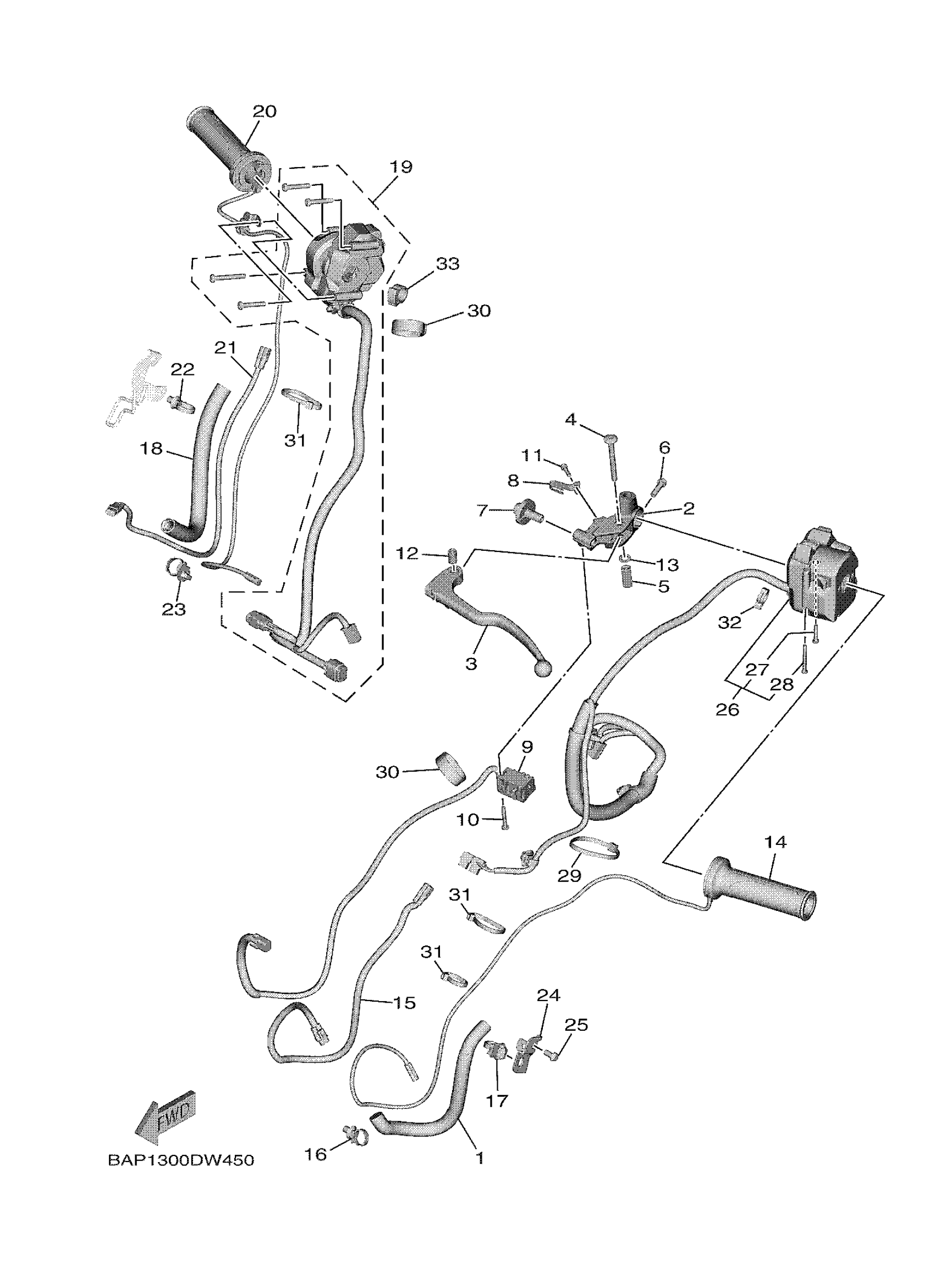

Yamaha MTT9GTMS (TRACER 9 GT) BAP51 2021 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

TUBE, CORD

BAP-82351-00-00

Unavailable

2

HOLDER, LEVER 1

B67-82911-00-00

$52.99

3

LEVER 1

B5U-83912-00-00

$47.99

4

BOLT, LEVER

B5U-83945-00-00

Unavailable

5

NUT

90170-06249-00

Unavailable

6

. BOLT, FLANGE

95027-06020-00

Unavailable

7

BOLT, CABLE ADJUSTING

5LV-83951-00-00

$58.99

8

PLATE, SPRING

4XV-83929-00-00

$11.99

9

SWITCH

BAP-82917-00-00

Unavailable

10

SCREW, PAN HEAD WITH WASHER

97602-04230-00

Unavailable

11

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.50

12

COLLAR, LEVER 1

5JJ-83913-00-00

$8.99

13

WASHER, SPECIAL

5LP-84127-10-00

$7.99

14

GRIP, WARMER (LEFT

BAP-82963-00-00

$157.99

15

WIRE, LEAD 1

BAP-8253R-00-00

$26.99

16

CLAMP

90464-30010-00

Unavailable

17

CLAMP

90464-25009-00

Unavailable

18

TUBE, CORD 2

BAP-82352-00-00

Unavailable

19

SW., HANDLE RH

BAP-8291R-03-00

Unavailable

20

GRIP, WARMER

BAP-82960-00-00

Unavailable

21

WIRE, LEAD 2

BAP-8253T-00-00

Unavailable

22

CLAMP

90464-30010-00

Unavailable

23

CLAMP

90464-25009-00

Unavailable

24

HOLDER

B5U-23857-00-00

Unavailable

25

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

26

SWITCH, HANDLE 7

B5U-83954-01-00

Unavailable

27

SCREW, PAN HEAD

98517-04020-00

Unavailable

28

SCREW, PAN HEAD(MK5)

98507-04035-00

Unavailable

29

BAND

3MA-82591-00-00

Unavailable

30

BAND

B5U-82591-00-00

Unavailable

31

BAND

1UA-82591-00-00

Unavailable

32

CLAMP

90464-12013-00

Unavailable

33

CLAMP

90464-16003-00

Unavailable
