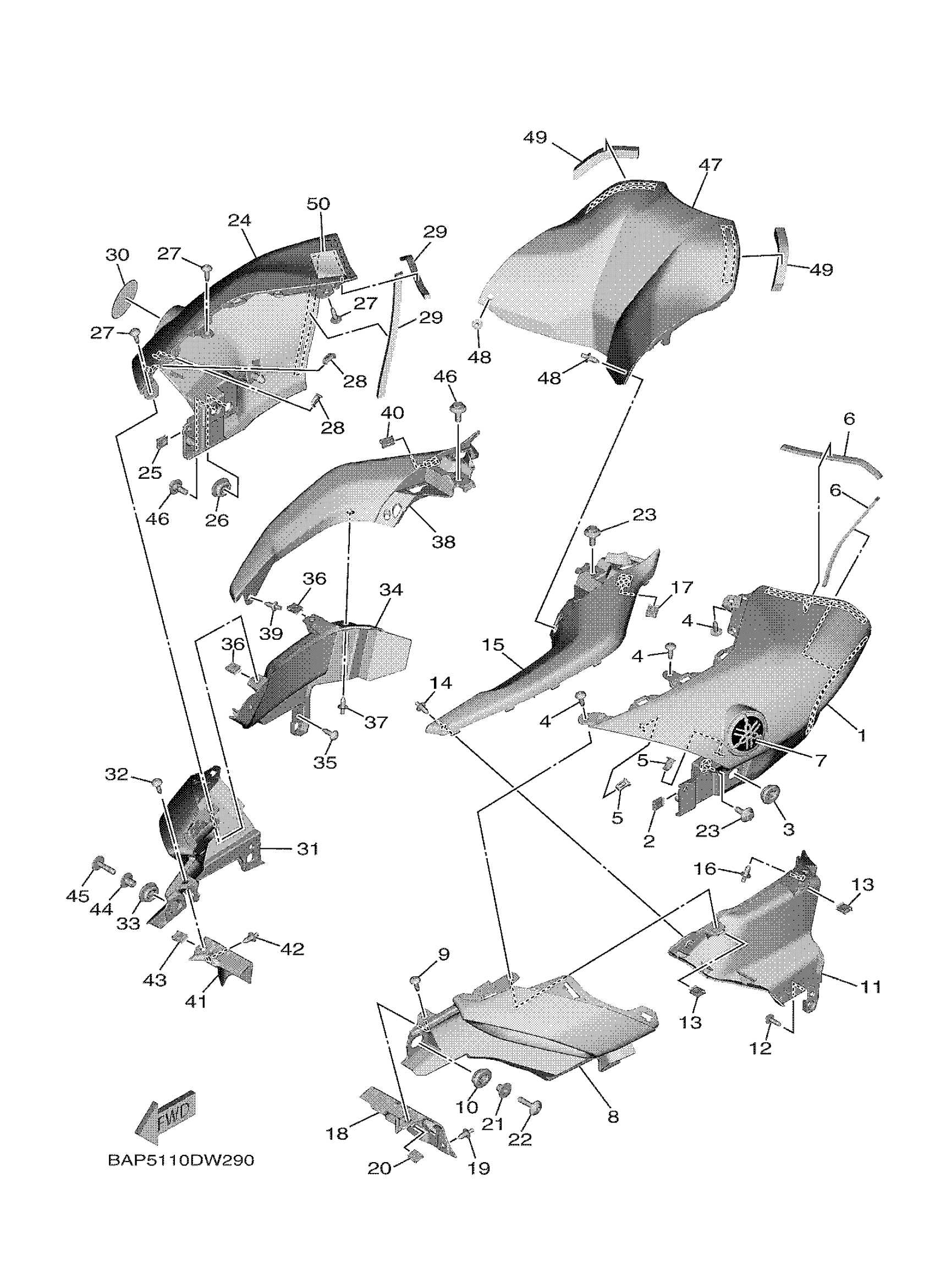

Yamaha MTT9GTMS (TRACER 9 GT) BAP51 2021 FUEL TANK 3 Diagram

#

Description
Price

1

COVER, SIDE 1

B5U-24129-00-P0

Unavailable

2

NUT, SPRING(1YT)

90183-05042-00

$5.60

3

GROMMET(4BH)

90480-01559-00

$5.60

4

SCREW, TAPPING(4TX)

90167-05076-00

$2.39

5

CLAMP

90464-04005-00

$4.41

6

DAMPER, PLATE

90520-04019-00

$0.75

7

EMBLEM

1RC-2413B-02-00

$21.99

8

GRILL, AIR INTAKE

B5U-2837N-00-00

$43.99

9

SCREW, TAPPING(4TX)

90167-05076-00

$2.39

10

GROMMET(4BH)

90480-01559-00

$5.60

11

DUCT 1

B5U-2838N-00-00

Unavailable

12

SCREW, TAPPING(4TX)

90167-05076-00

$2.39

13

NUT, SPRING(1YT)

90183-05042-00

$5.60

14

RIVET

90269-06001-00

$5.60

15

MOLE 1

B5U-28345-00-00

$41.99

16

RIVET

90269-06001-00

$5.60

17

NUT, SPRING(1YT)

90183-05042-00

$5.60

18

COVER 1

B5U-2842M-00-00

Unavailable

19

RIVET

90269-06001-00

$5.60

20

NUT, SPRING(1YT)

90183-05042-00

$5.60

21

COLLAR

90387-06205-00

Unavailable

22

BOLT, HEXAGON SOCKET BUTTON

90111-06175-00

Unavailable

23

BOLT

90109-06043-00

Unavailable

24

COVER, SIDE 2

B5U-24139-00-P0

Unavailable

25

NUT, SPRING(1YT)

90183-05042-00

$5.60

26

GROMMET(4BH)

90480-01559-00

$5.60

27

SCREW, TAPPING(4TX)

90167-05076-00

$2.39

28

CLAMP

90464-04005-00

$4.41

29

DAMPER, PLATE

90520-04019-00

$0.75

30

EMBLEM

1RC-2413B-02-00

$21.99

31

GRILL, AIR INTAKE

B5U-2837R-00-00

Unavailable

32

SCREW, TAPPING(4TX)

90167-05076-00

$2.39

33

GROMMET(4BH)

90480-01559-00

$5.60

34

DUCT 2

B5U-2838R-00-00

Unavailable

35

SCREW, TAPPING(4TX)

90167-05076-00

$2.39

36

NUT, SPRING(1YT)

90183-05042-00

$5.60

37

RIVET

90269-06001-00

$5.60

38

MOLE 2

B5U-28346-00-00

Unavailable

39

RIVET

90269-06001-00

$5.60

40

NUT, SPRING(1YT)

90183-05042-00

$5.60

41

COVER 2

B5U-2842N-00-00

Unavailable

42

RIVET

90269-06001-00

$5.60

43

NUT, SPRING(1YT)

90183-05042-00

$5.60

44

COLLAR

90387-06205-00

Unavailable

45

BOLT, HEXAGON SOCKET BUTTON

90111-06175-00

Unavailable

46

BOLT

90109-06043-00

Unavailable

47

COVER, TANK

B5U-241B1-00-00

Unavailable

48

RIVET

90269-06001-00

$5.60

49

DAMPER, PLATE

90520-10039-00

Unavailable

50

LABEL, WARNING GENERAL INFO.

29P-2816R-01-00

Unavailable
