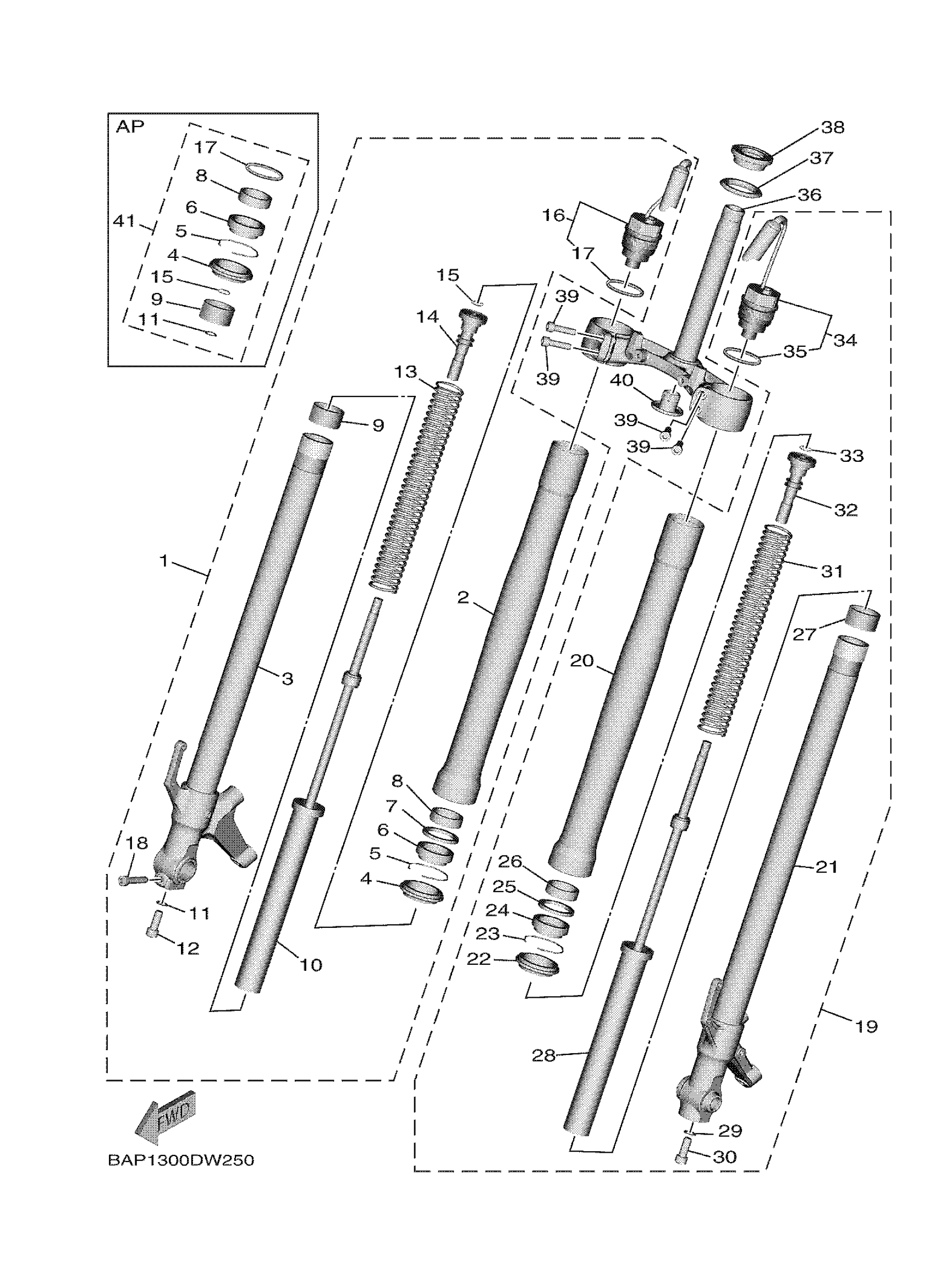

Yamaha MTT9GTMS (TRACER 9 GT) BAP51 2021 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (R

BAP-23103-00-00

$1,387.99

2

TUBE, OUTER (L.H)

B5U-23126-10-00

Unavailable

3

INNER TUBE COMP.2

BAP-23120-00-00

Unavailable

4

SEAL, DUST

4EB-23144-00-00

$18.18

5

CLIP, OIL SEAL

26H-23156-00-00

$6.17

6

OIL SEAL

4EB-23145-01-00

$22.64

7

WASHER, OIL SEAL

36Y-23146-10-00

$20.60

8

METAL, SLIDE 1

1RC-23125-00-00

$11.56

9

METAL, SLIDE

4FM-23171-40-00

$19.02

10

CYLINDER COMP., FR

BAP-23170-10-00

Unavailable

11

GASKET

509-23158-L0-00

$13.39

12

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

13

SPRING, FRONT FORK

BAP-23141-00-00

Unavailable

14

GUIDE, SPRING

BAP-23117-00-00

Unavailable

15

O-RING

BAP-23188-00-00

Unavailable

16

BOLT, CAP

BAP-23111-00-00

Unavailable

17

O-RING

39P-23147-00-00

Unavailable

18

BOLT,SOCKET

91314-08040-00

Unavailable

19

FRONT FORK ASSY (L

BAP-23102-00-00

Unavailable

20

TUBE, OUTER (L.H)

B5U-23126-10-00

Unavailable

21

INNER TUBE COMP.1

BAP-23110-00-00

Unavailable

22

SEAL, DUST

4EB-23144-00-00

$18.18

23

CLIP, OIL SEAL

26H-23156-00-00

$6.17

24

OIL SEAL

4EB-23145-01-00

$22.64

25

WASHER, OIL SEAL

36Y-23146-10-00

$20.60

26

METAL, SLIDE 1

1RC-23125-00-00

$11.56

27

METAL, SLIDE

4FM-23171-40-00

$19.02

28

CYLINDER COMP., FR

BAP-23170-00-00

Unavailable

29

GASKET

509-23158-L0-00

$13.39

30

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

31

SPRING, FRONT FORK

BAP-23141-00-00

Unavailable

32

GUIDE, SPRING

BAP-23117-00-00

Unavailable

33

O-RING

BAP-23188-00-00

Unavailable

34

BOLT, CAP

BAP-23111-00-00

Unavailable

35

O-RING

39P-23147-00-00

Unavailable

36

UNDER BRACKET COMP

B5U-23340-00-00

Unavailable

37

SEAL, STEERING

3FV-23462-00-00

Unavailable

38

BEARING

93399-99957-00

Unavailable

39

BOLT,SOCKET

91314-08030-00

Unavailable

40

COVER, LOWER 1

4KM-23123-01-00

Unavailable

41

FORK SEAL KIT (ONE FORK)

BAP-W003B-00-00

Unavailable
