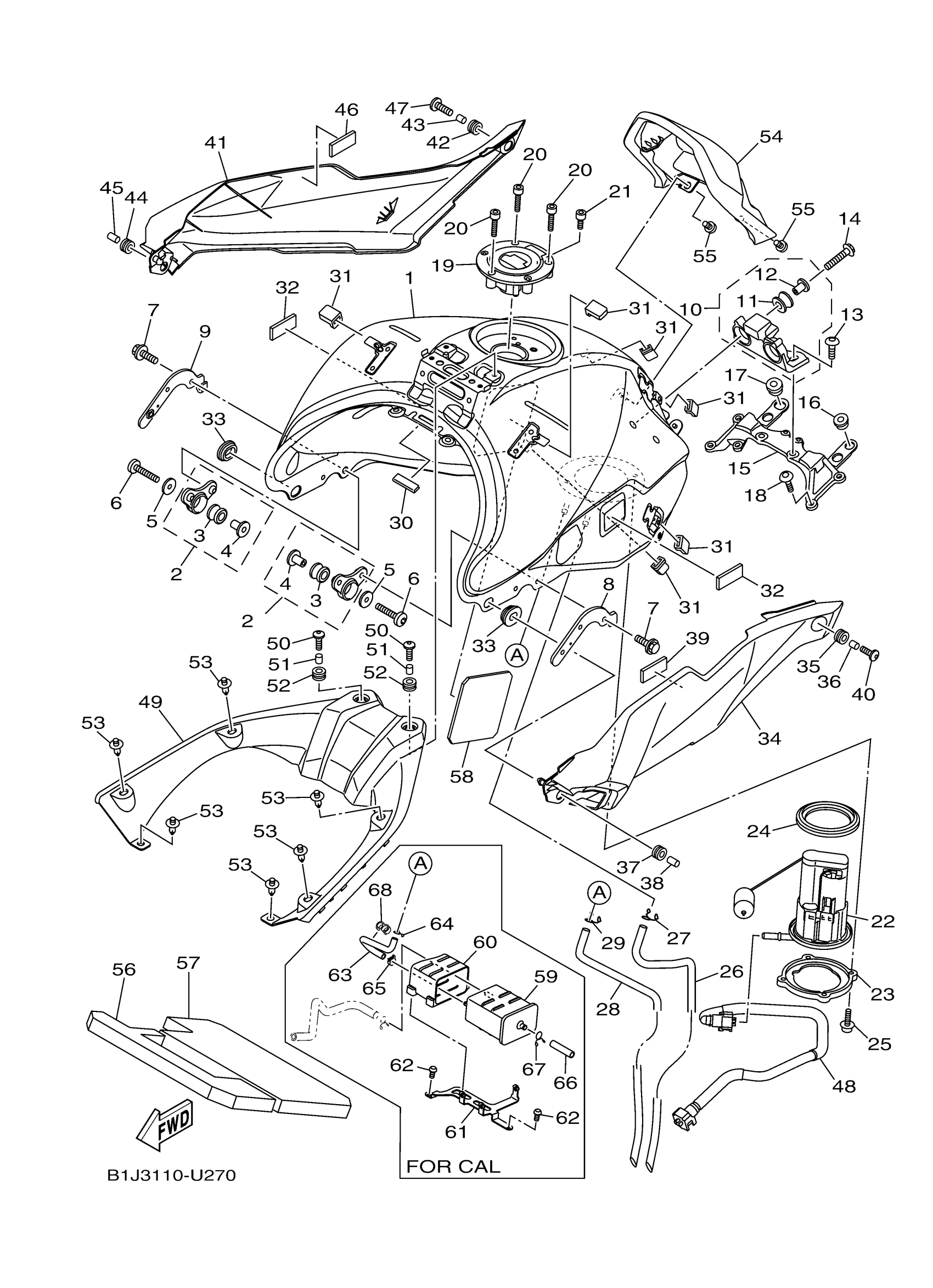

Yamaha MTT9GTLCB (TRACER 900 GT CA) B1JH 2020 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

2PP-24110-01-P6

Unavailable

2

TANK BRACKET ASSY

23P-24104-01-00

Unavailable

3

GROMMET

90480-18008-00

$3.71

4

COLLAR

90387-06266-00

$4.61

5

WASHER PLATE 137241870000

90201-06072-00

$9.49

6

BOLT, BUTTON HEAD

92012-06035-00

$2.34

7

BOLT, WITH WASHER

90119-06200-00

Unavailable

8

PLATE, FITTING

2PP-2411F-00-00

Unavailable

9

HOOK TANK FITTING

2PP-2411L-00-00

Unavailable

10

TANK BRACKET ASSY

2PP-24105-00-00

$36.99

11

GROMMET

3D7-24339-00-00

$4.63

12

COLLAR

90387-06136-00

$7.49

13

BOLT,HEX. SOCKET BUTTON

90111-06136-00

$5.60

14

BOLT, FLANGE

95817-06025-00

Unavailable

15

BRACKET, TANK FITT

2PP-2413Y-00-00

Unavailable

16

GROMMET

90480-13014-00

Unavailable

17

GROMMET(4BH)

90480-01559-00

Unavailable

18

BOLT, BUTTON

92017-06020-00

Unavailable

19

CAP ASSY

39P-24602-10-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

21

BOLT

91312-05010-00

Unavailable

22

FUEL PUMP COMP

1RC-13907-10-00

Unavailable

23

BRACKET, FUEL PUMP

1RC-24491-00-00

Unavailable

24

O-RING

1RC-24486-00-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

Unavailable

26

PIPE 5

1RC-24315-00-00

Unavailable

27

CLIP

90467-090A2-00

Unavailable

28

PIPE 6

1RC-24316-00-00

Unavailable

29

CLIP

90467-090A2-00

Unavailable

30

MOLE 3

2S3-28347-00-00

Unavailable

31

DAMPER, SIDE COVER

5PW-2411J-01-00

Unavailable

32

HOOK, SIDE COVER 1

2PP-2411G-00-00

Unavailable

33

GROMMET(4DN)

90480-01558-00

Unavailable

34

COVER, SIDE 1

B5C-24129-00-00

Unavailable

35

GROMMET (462)

90480-13018-00

Unavailable

36

COLLAR

90387-0611W-00

Unavailable

37

GROMMET (462)

90480-13018-00

Unavailable

38

COLLAR (J10)

90387-06026-00

Unavailable

39

HOOK, SIDE COVER 1

2PP-2411G-00-00

Unavailable

40

BOLT

90111-05007-00

Unavailable

41

COVER, SIDE 2

B5C-24139-00-00

Unavailable

42

GROMMET (462)

90480-13018-00

Unavailable

43

COLLAR

90387-0611W-00

Unavailable

44

GROMMET (462)

90480-13018-00

Unavailable

45

COLLAR (J10)

90387-06026-00

Unavailable

46

HOOK, SIDE COVER 1

2PP-2411G-00-00

Unavailable

47

BOLT

90111-05007-00

Unavailable

48

PIPE, FUEL 1

1RC-13971-11-00

Unavailable

49

COVER, TANK

B5C-241B1-00-00

Unavailable

50

BOLT

90111-05007-00

Unavailable

51

COLLAR

90387-0611W-00

Unavailable

52

GROMMET (462)

90480-13018-00

Unavailable

53

RIVET

90269-07007-00

Unavailable

54

PROTECTOR, FUEL TANK

B5C-24141-00-00

Unavailable

55

BOLT

90111-05002-00

Unavailable

56

DAMPER, PLATE 1

2PP-2414H-00-00

Unavailable

57

DAMPER, PLATE 2

2PP-2414J-00-00

Unavailable

58

PROTECTOR, FUEL TANK

BS2-24141-00-00

Unavailable
