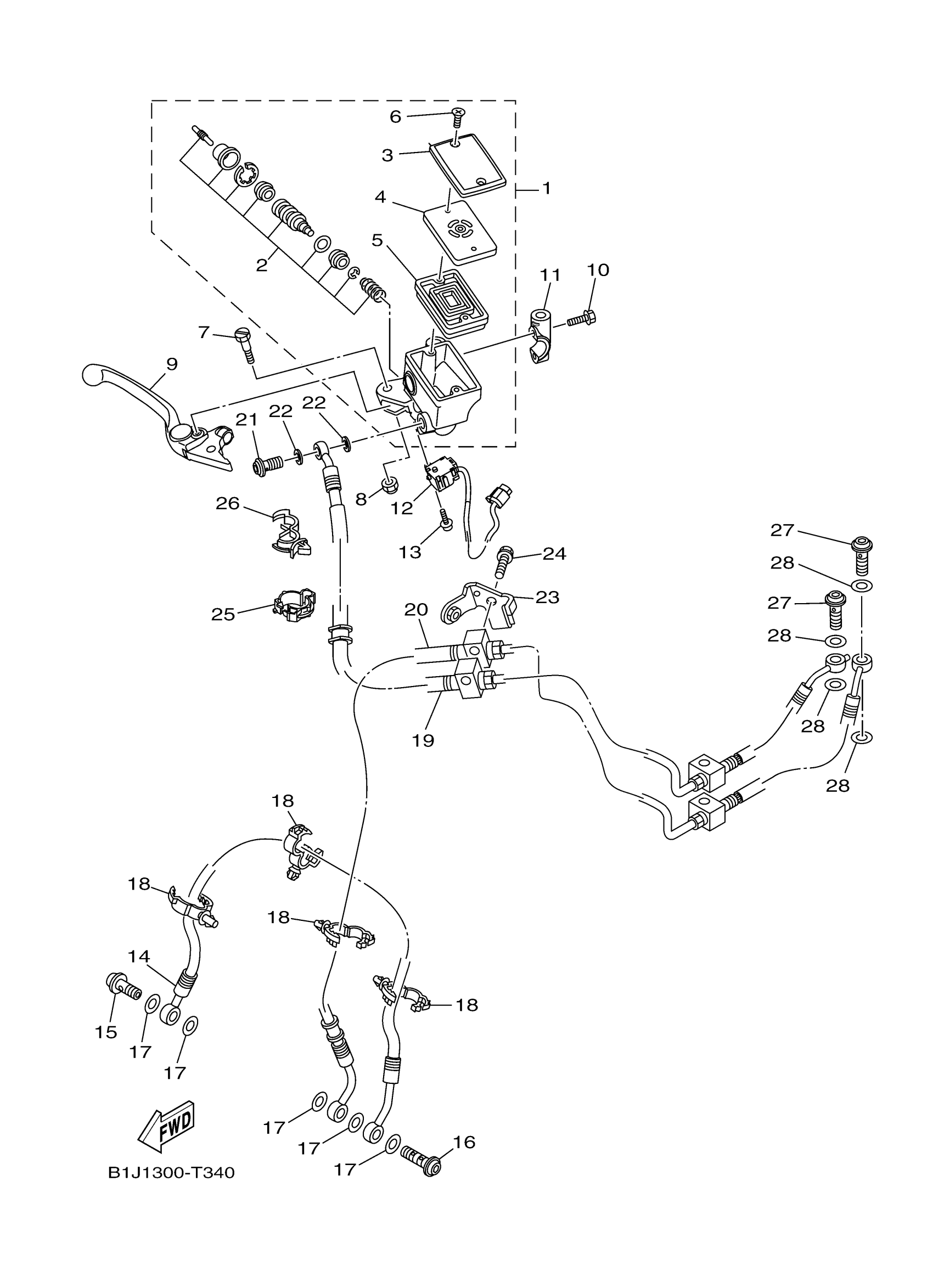

Yamaha MTT9GTLCB (TRACER 900 GT CA) B1JH 2020 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY 2

BW8-2580A-00-00

$169.99

2

CYLINDER KIT, MAST

1WS-25807-00-00

$31.99

3

CAP, RESERVOIR

5VS-25852-00-00

Unavailable

4

BUSH,DIAPHRAGM

5VS-25855-00-00

$16.49

5

GASKET, DIAPHRAGM

20S-25854-00-00

$28.99

6

SCREW

5VS-2589H-00-00

$4.11

7

BOLT, LEVER

5VS-2589F-00-00

$14.49

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

LEVER 2

5VS-83922-00-00

$85.99

10

BOLT, SMALL FLANGE

95027-06030-00

$3.98

11

BRACKET, MASTER CYLINDER

34B-25867-10-00

Unavailable

12

FRONT STOP SWITCH ASSY

B1J-83980-01-00

$132.99

13

SCREW, PAN HEAD WITH WASHER

97602-04214-00

$5.60

14

HOSE, BRAKE 1

2DR-25872-01-00

Unavailable

15

BOLT, UNION

90401-10172-00

$5.60

16

BOLT, UNION

90401-10042-00

Unavailable

17

GASKET

90430-10005-00

Unavailable

18

CLAMP

90464-18002-00

Unavailable

19

BRAKE HOSE ASSY

2SC-2584A-01-00

Unavailable

20

HOSE, BRAKE

2DR-2584B-01-00

Unavailable

21

BOLT, UNION

90401-10172-00

$5.60

22

GASKET

90430-10005-00

Unavailable

23

BRACKET, REFLECTOR

2DR-85132-00-00

Unavailable

24

BOLT, FLANGE

90105-06091-00

Unavailable

25

CLAMP

90464-12013-00

Unavailable

26

CLAMP(4TR)

90464-18246-00

Unavailable

27

BOLT, UNION

90401-10172-00

$5.60

28

GASKET

90430-10005-00

Unavailable
