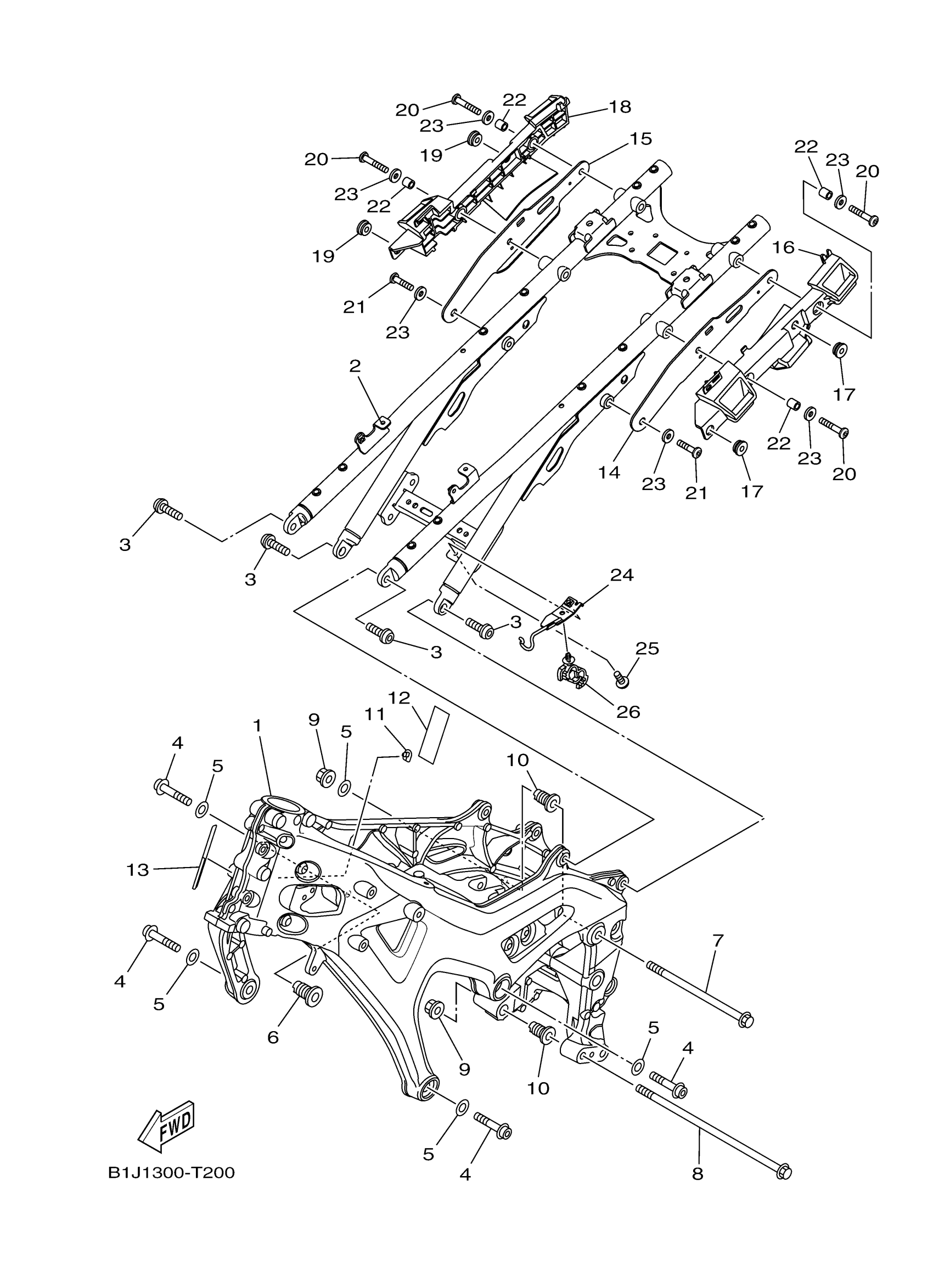

Yamaha MTT9GTLCB (TRACER 900 GT CA) B1JH 2020 FRAME Diagram

#

Description
Price

1

FRAME COMP.

B1J-21110-00-00

Unavailable

2

REAR FRAME COMP.

B5C-21190-00-00

Unavailable

3

SCREW

90149-10060-00

$7.49

4

BOLT, HEXAGON SOCKET HEAD

90110-10043-00

$4.41

5

WASHER, PLATE

90201-10075-00

$3.28

6

BOLT, ENGINE ADJUSTING

1RC-21495-00-00

Unavailable

7

BOLT, FLANGE

90105-10391-00

Unavailable

8

BOLT, FLANGE

90105-10437-00

Unavailable

9

NUT

90179-10024-00

$10.49

10

BOLT, ENGINE ADJUSTING

4C8-21495-00-00

Unavailable

11

PLUG, BLIND

5VX-21289-00-00

$6.99

12

DAMPER

1HP-H2176-01-00

$2.17

13

PROTECTOR

1RC-2117G-00-00

$5.49

14

REINF., FRAME RR.

B5C-21214-00-00

Unavailable

15

REINF., FRAME RR.

B5C-21224-00-00

Unavailable

16

STAY 3

B5C-2164H-00-00

Unavailable

17

GROMMET

90480-13014-00

Unavailable

18

STAY 4

B5C-2164J-00-00

Unavailable

19

GROMMET

90480-13014-00

Unavailable

20

SCREW(1KH)

90149-08220-00

Unavailable

21

BOLT (3XF1)

90110-08220-00

Unavailable

22

COLLAR

90387-08077-00

Unavailable

23

WASHER, PLATE(JA8)

90201-087P8-00

Unavailable

24

HOLDER

B1J-22465-00-00

Unavailable

25

BOLT,HEX. SOCKET BUTTON

90111-06103-00

Unavailable

26

CLAMP

90464-13249-00

Unavailable
