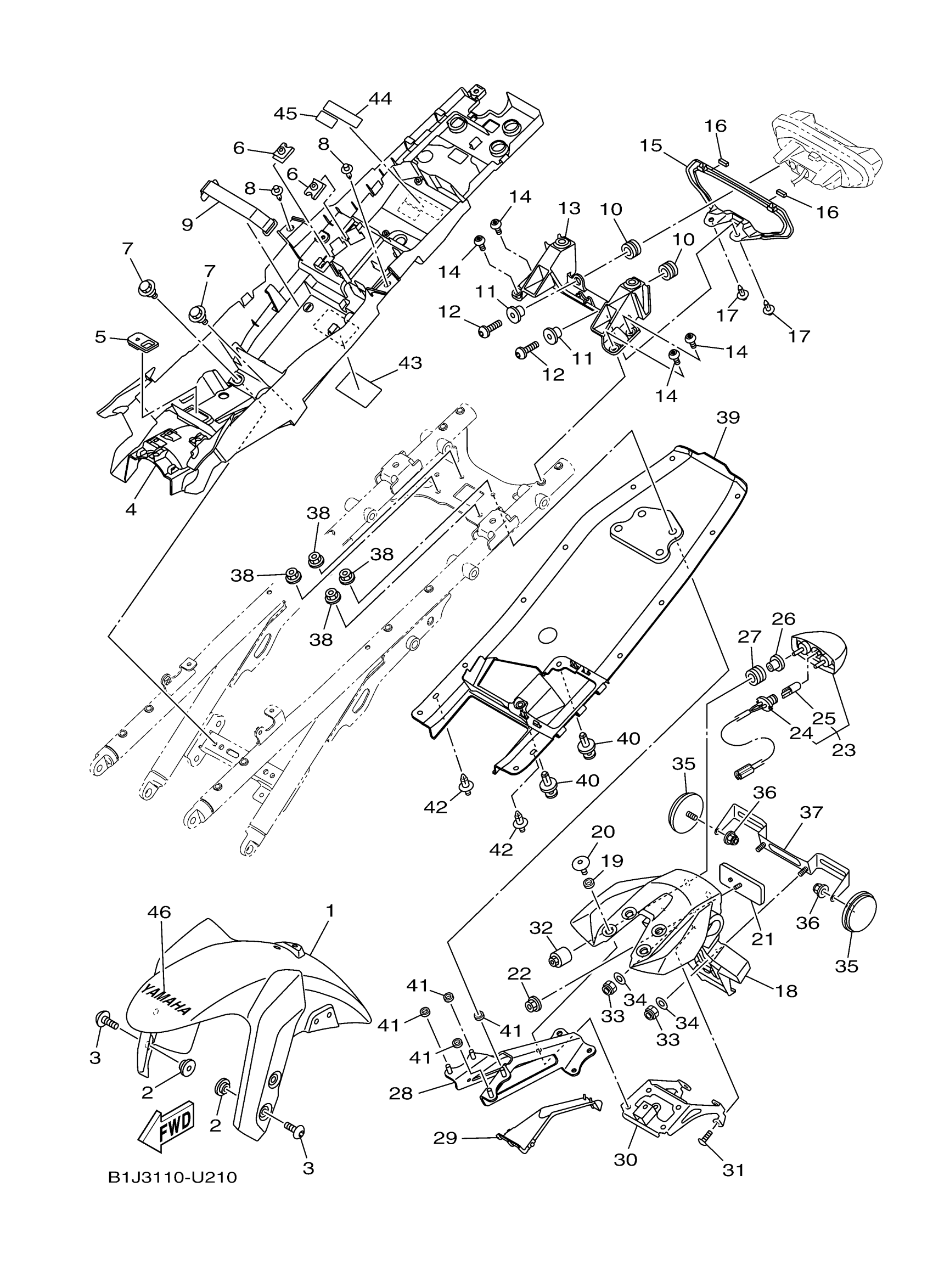

Yamaha MTT9GTLCB (TRACER 900 GT CA) B1JH 2020 FENDER Diagram
#
4
BOX, BATTERY 1
B5C-8212B-00-00
Unavailable
5
PLUG, BLIND
2DR-26199-00-00
Unavailable
6
NUT, SPRING(4ES)
90183-06069-00
Unavailable
16
DAMPER
1RC-21747-00-00
Unavailable
18
GUARD, MUD
1RC-21629-01-00
Unavailable
19
COLLAR
90387-06106-00
Unavailable
20
BOLT
90111-06061-00
Unavailable
21
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
22
NUT, S/L FLANGE
95607-05200-00
Unavailable
23
LICENCE LIGHT ASSY
1WS-84740-00-00
Unavailable
24
CORD, LICENCE LIGH
1WS-84547-00-00
Unavailable
25
BULB
1TP-84347-00-00
Unavailable
26
COLLAR
90387-05042-00
Unavailable
27
GROMMET
90480-11009-00
Unavailable
28
STAY 1
2PP-2164F-00-00
Unavailable
29
COVER, REAR FENDER
2PP-2163E-01-00
Unavailable
30
STAY, PLATE
2PP-21682-00-00
Unavailable
31
SCREW, ROUND TAPPING
90160-05012-00
Unavailable
32
WEIGHT
1RC-2622H-00-00
Unavailable
33
NUT, SELF-LOCKING
95617-06100-00
Unavailable
34
WASHER, PLAIN (646)
92990-06600-00
Unavailable
35
REFLECTOR, REAR 1
449-85131-02-00
Unavailable
36
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
37
BRACKET, LICENSE
1RC-84751-10-00
Unavailable
38
NUT, U FLANGE
95604-06200-00
Unavailable
39
COVER, REAR FENDER
2PP-21651-01-00
Unavailable
40
RIVET(4JH)
90269-07076-00
Unavailable
41
COLLAR
90387-06302-00
Unavailable
43
LABEL, TIRE
3XW-21668-A1-00
Unavailable
44
LABEL, CAUTION
3JJ-28446-A2-00
Unavailable
45
LABEL, CAUTION
3TB-24877-A1-00
Unavailable
46
EMBLEM, YAMAHA
99247-00080-00
Unavailable
