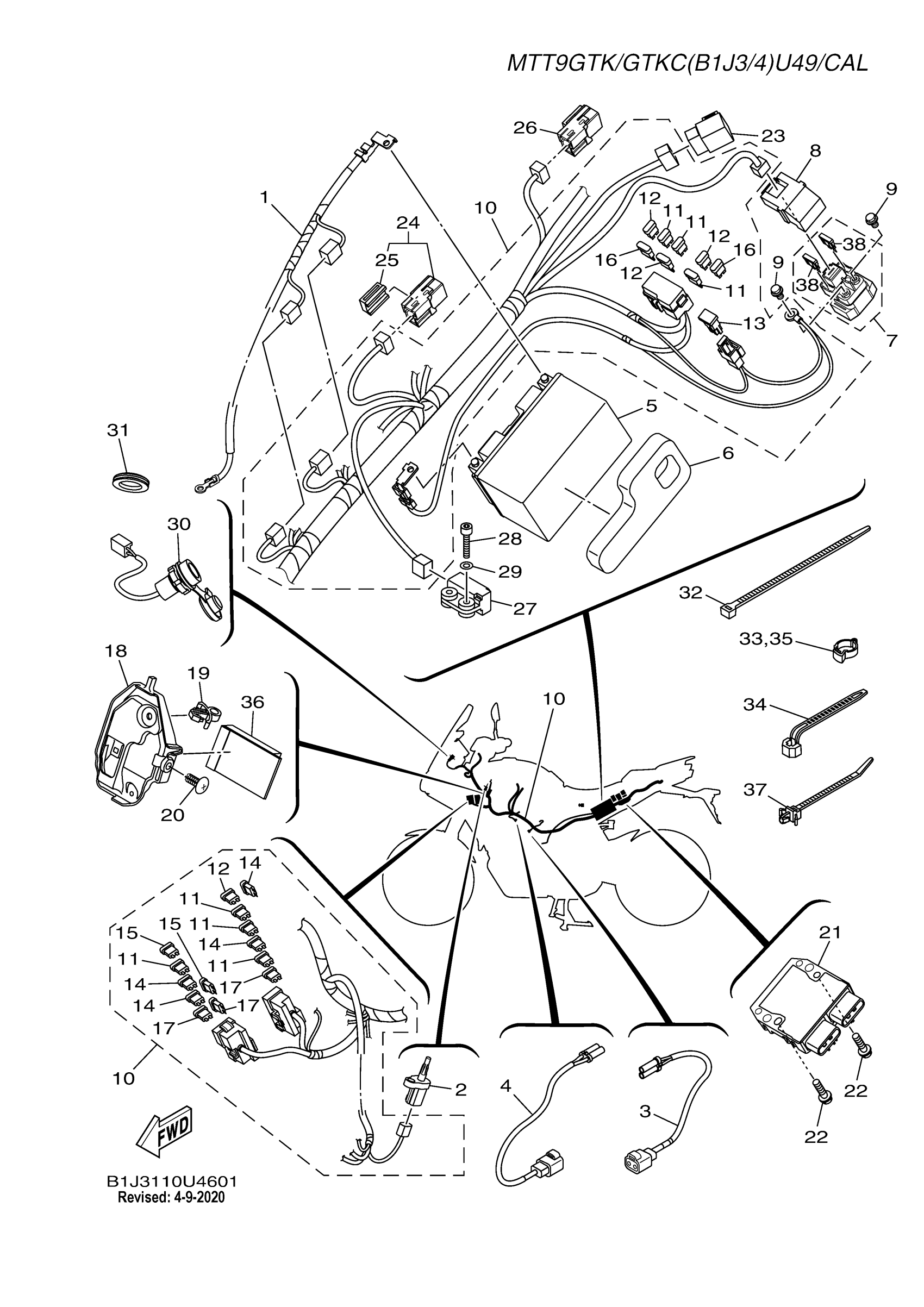

Yamaha MTT9GTLCB (TRACER 900 GT CA) B1JH 2020 ELECTRICAL 1 Diagram

#

Description
Price

1

WIRE, MINUS LEAD

BS2-82116-00-00

Unavailable

2

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

$28.08

3

WIRE, SUB LEAD

1RC-82309-01-00

$19.45

4

WIRE, SUB LEAD

1RC-82509-00-00

$14.47

5

BATTERY YTZ10S

YTZ-10S00-00-00

$184.29

6

SPACER

1RC-8246K-00-00

Unavailable

7

STARTER RELAY ASSY

2PP-81940-00-00

Unavailable

8

COVER, LEAD WIRE

5SL-82119-30-00

$4.05

9

BOLT, FLANGE

95022-06008-00

$5.84

10

WIRE HARNESS ASSY

B1J-82590-11-00

Unavailable

11

FUSE (7.5A-BL)

5JJ-82151-00-00

$5.55

12

FUSE (15A)

67F-82151-50-00

$3.48

13

FUSE (50A)

5JW-82151-10-00

$13.33

14

FUSE (2A-BL)

5JJ-82151-80-00

$6.74

15

. FUSE (10A)

67F-82151-40-00

$6.07

16

FUSE

5JJ-82151-60-00

Unavailable

17

FUSE (1A-BL)

5JJ-82151-A0-00

Unavailable

18

COVER, CONNECTOR

1RC-82599-01-00

Unavailable

19

CLAMP(3XV)

90464-15157-00

Unavailable

20

RIVET

90269-07015-00

Unavailable

21

RECTIFIER & REGULATOR ASSY

1D7-81960-10-00

Unavailable

22

BOLT, FLANGE

95022-06025-00

Unavailable

23

RELAY ASSY

5VK-81950-43-00

Unavailable

24

RELAY ASSY (1ST-00)

1ST-81950-00-00

Unavailable

25

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

26

RELAY ASSY

5JJ-81950-11-00

Unavailable

27

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

28

BOLT

91312-04020-00

Unavailable

29

WASHER, PLATE

90201-04030-00

Unavailable

30

TERMINAL COMP.

2SC-8254B-00-00

Unavailable

31

DAMPER, SEAT

2BS-24747-00-00

Unavailable

32

BAND

3MA-82591-00-00

Unavailable

33

CLAMP

90464-16001-00

Unavailable

34

CLAMP(4FM)

90464-15195-00

Unavailable

35

CLAMP

90464-14010-00

Unavailable

36

PROTECTER, WIRE HARNESS

1RC-82589-00-00

Unavailable

37

CLAMP

90464-27002-00

Unavailable

38

FUSE (20A)

2GV-82151-00-00

Unavailable
