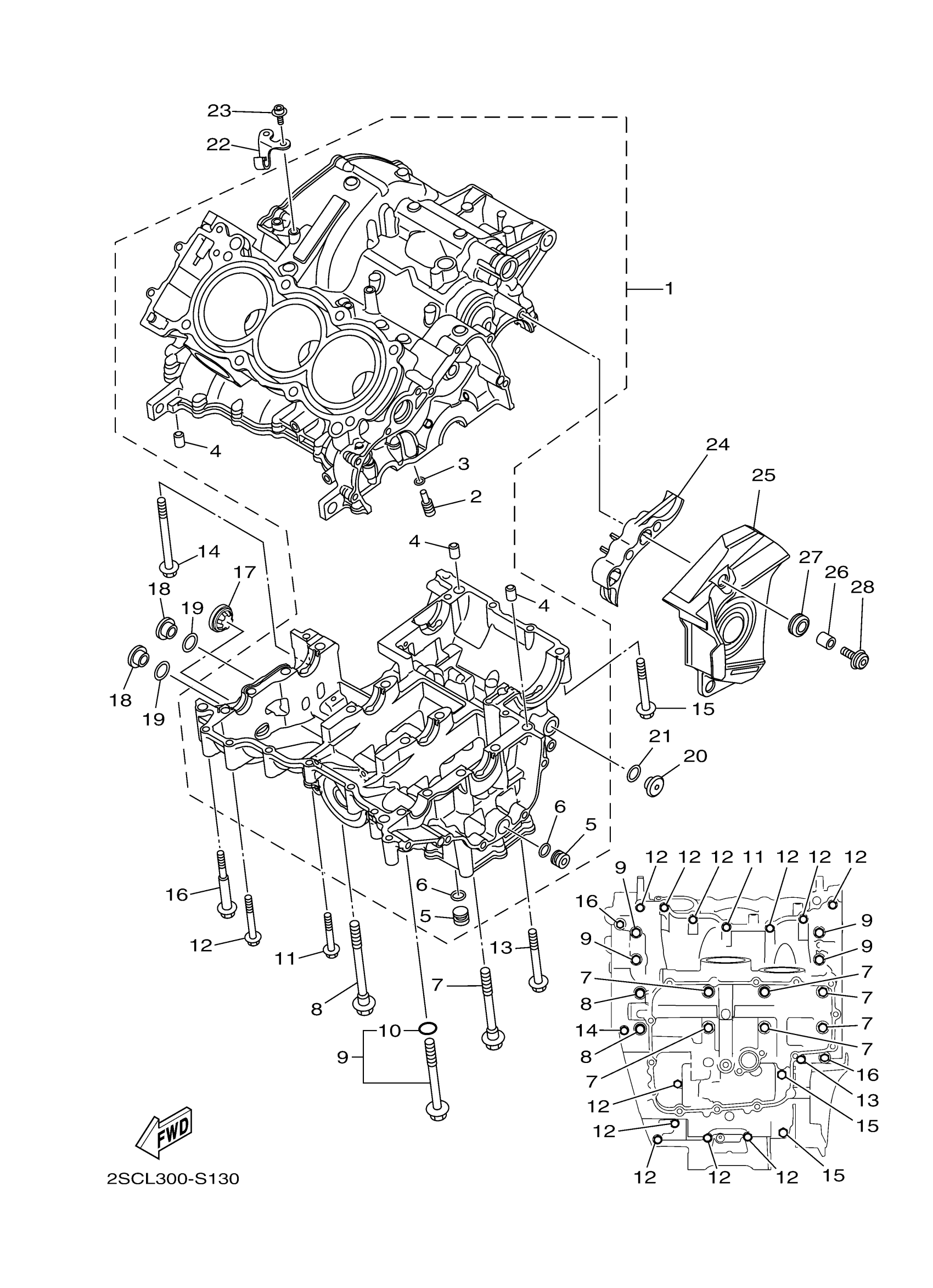

Yamaha MTT9GTLCB (TRACER 900 GT CA) B1JH 2020 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

BS2-15100-09-00

$2,995.99

2

NOZZLE 3

5EB-15155-00-00

$11.48

3

O-RING (210)

93210-04092-00

$2.69

4

PIN, DOWEL(3VD)

99530-10114-00

$2.13

5

PLUG

90338-16262-00

$11.02

6

O-RING(3LD)

93210-12790-00

$5.37

7

BOLT, WITH WASHER

90119-09013-00

$9.99

8

BOLT, WITH WASHER

90119-09010-00

$10.74

9

BOLT, CRANKCASE JOURNAL

23P-15156-00-00

$9.38

10

O-RING (11M)

93210-07540-00

$5.39

11

BOLT, FLANGE

95817-06040-00

$4.24

12

BOLT, FLANGE

95812-06050-00

$1.41

13

BOLT, FLANGE

95812-06065-00

Unavailable

14

BOLT, FLANGE

90105-06202-00

$1.56

15

BOLT, FLANGE

95817-08060-00

$3.05

16

BOLT

90109-06100-00

Unavailable

17

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

18

PLUG

36Y-15189-01-00

Unavailable

19

O-RING(1L9)

93210-16325-00

Unavailable

20

PLUG, STRAIGHT SCREW

90340-14011-00

Unavailable

21

O-RING (2H9)

93210-14369-00

Unavailable

22

HOLDER, CLUTCH CABLE

1RC-15441-00-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-06107-00

Unavailable

24

GUIDE, INLET

1RC-15377-00-00

Unavailable

25

COVER, CHAIN CASE

BS2-15418-00-00

Unavailable

26

COLLAR

90387-06286-00

Unavailable

27

GROMMET (462)

90480-13018-00

Unavailable

28

BOLT,HEX. SOCKET BUTTON

90111-06130-00

Unavailable
