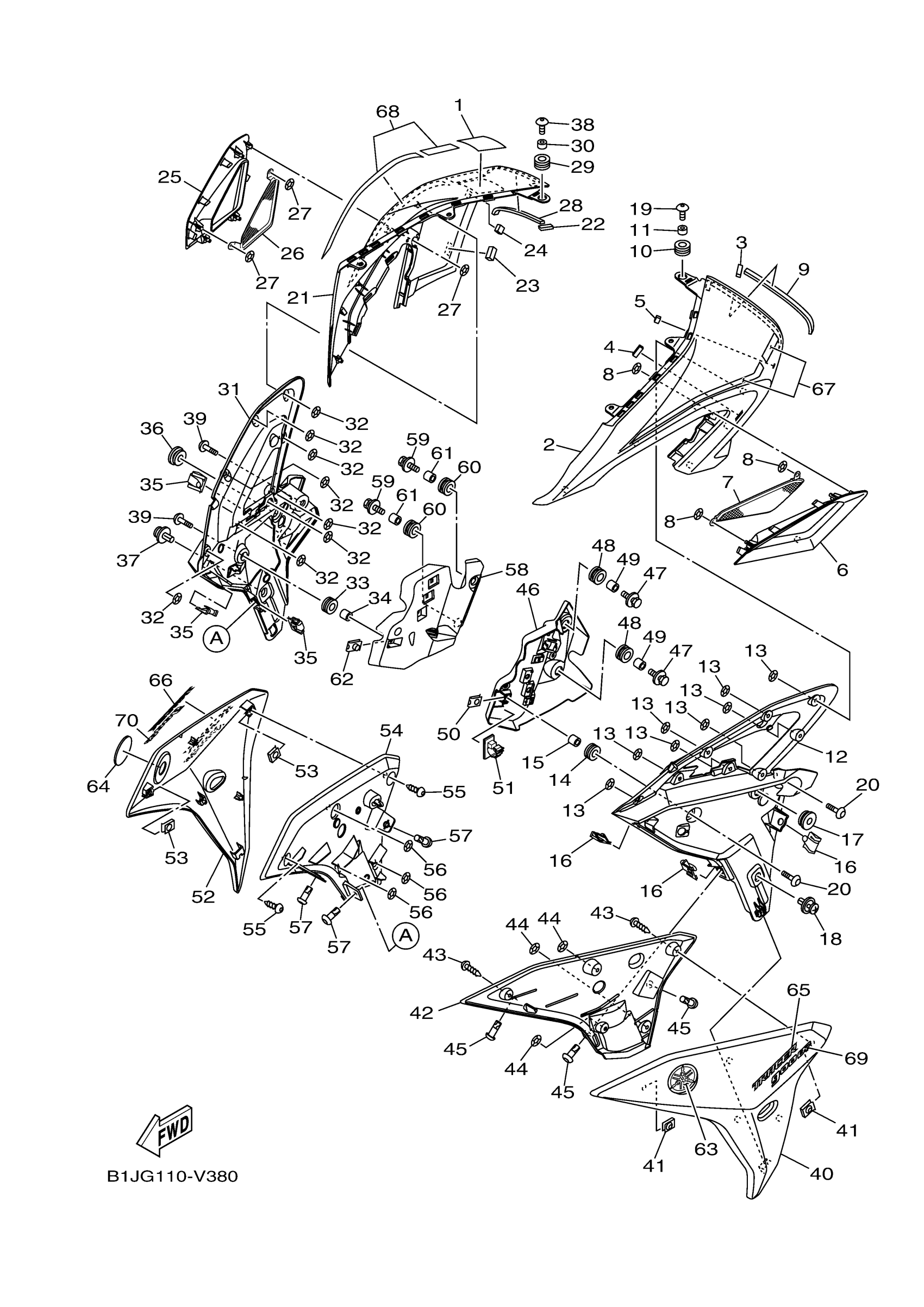

Yamaha MTT9GTLCB (TRACER 900 GT CA) B1JH 2020 COWLING Diagram
#
2
COVER 1
B5C-28219-00-P0
Unavailable
6
PLATE 1
B5C-28396-00-P2
Unavailable
7
GRILL, AIR INTAKE 1
B5C-2837N-00-00
Unavailable
12
PANEL, INNER 1
B5C-2836K-00-00
Unavailable
16
PLATE, SPRING
5PW-2177L-01-00
Unavailable
17
GROMMET
90480-13014-00
Unavailable
18
RIVET(4JH)
90269-07076-00
Unavailable
19
BOLT
90111-05007-00
Unavailable
20
BOLT,HEX. SOCKET BUTTON
90111-05026-00
Unavailable
21
COVER 2
B5C-28229-00-P0
Unavailable
25
PLATE 2
B5C-28397-00-P2
Unavailable
26
GRILL, AIR INTAKE 2
B5C-2837R-00-00
Unavailable
31
PANEL, INNER 2
B5C-2836L-00-00
Unavailable
35
PLATE, SPRING
5PW-2177L-01-00
Unavailable
36
GROMMET
90480-13014-00
Unavailable
37
RIVET(4JH)
90269-07076-00
Unavailable
38
BOLT
90111-05007-00
Unavailable
39
BOLT,HEX. SOCKET BUTTON
90111-05026-00
Unavailable
40
PANEL 1
B5C-2835U-00-P5
Unavailable
41
NUT, SPRING(1YT)
90183-05042-00
Unavailable
42
PANEL, CONSOLE 1
B5C-2837L-00-00
Unavailable
43
SCREW, TAPPING
90167-05079-00
Unavailable
45
HEAD
14B-28386-00-00
Unavailable
46
BRACKET 5
2PP-2836H-01-00
Unavailable
47
BOLT, WITH WASHER(81H)
90119-06118-00
Unavailable
48
GROMMET
90480-14003-00
Unavailable
49
COLLAR
90387-06057-00
Unavailable
50
NUT, SPRING
90183-050A6-00
Unavailable
51
CLAMP(3YL)
90464-25160-00
Unavailable
52
PANEL 2
B5C-2835V-00-P5
Unavailable
53
NUT, SPRING(1YT)
90183-05042-00
Unavailable
54
PANEL, CONSOLE 2
B5C-2837M-00-00
Unavailable
55
SCREW, TAPPING
90167-05079-00
Unavailable
57
HEAD
14B-28386-00-00
Unavailable
58
BRACKET 6
2PP-2836J-01-00
Unavailable
59
BOLT, WITH WASHER(81H)
90119-06118-00
Unavailable
60
GROMMET
90480-14003-00
Unavailable
61
COLLAR
90387-06057-00
Unavailable
62
NUT, SPRING
90183-050A6-00
Unavailable
63
EMBLEM
1RC-2413B-02-00
Unavailable
64
EMBLEM
1RC-2413B-02-00
Unavailable
65
EMBLEM 3D
2PP-2839B-00-00
Unavailable
66
EMBLEM 3D
2PP-2839B-00-00
Unavailable
67
GRAPHIC 1
B5C-28391-40-00
Unavailable
68
GRAPHIC 2
B5C-28392-40-00
Unavailable
69
EMBLEM
B1J-28315-40-00
Unavailable
70
EMBLEM
B1J-28315-40-00
Unavailable
