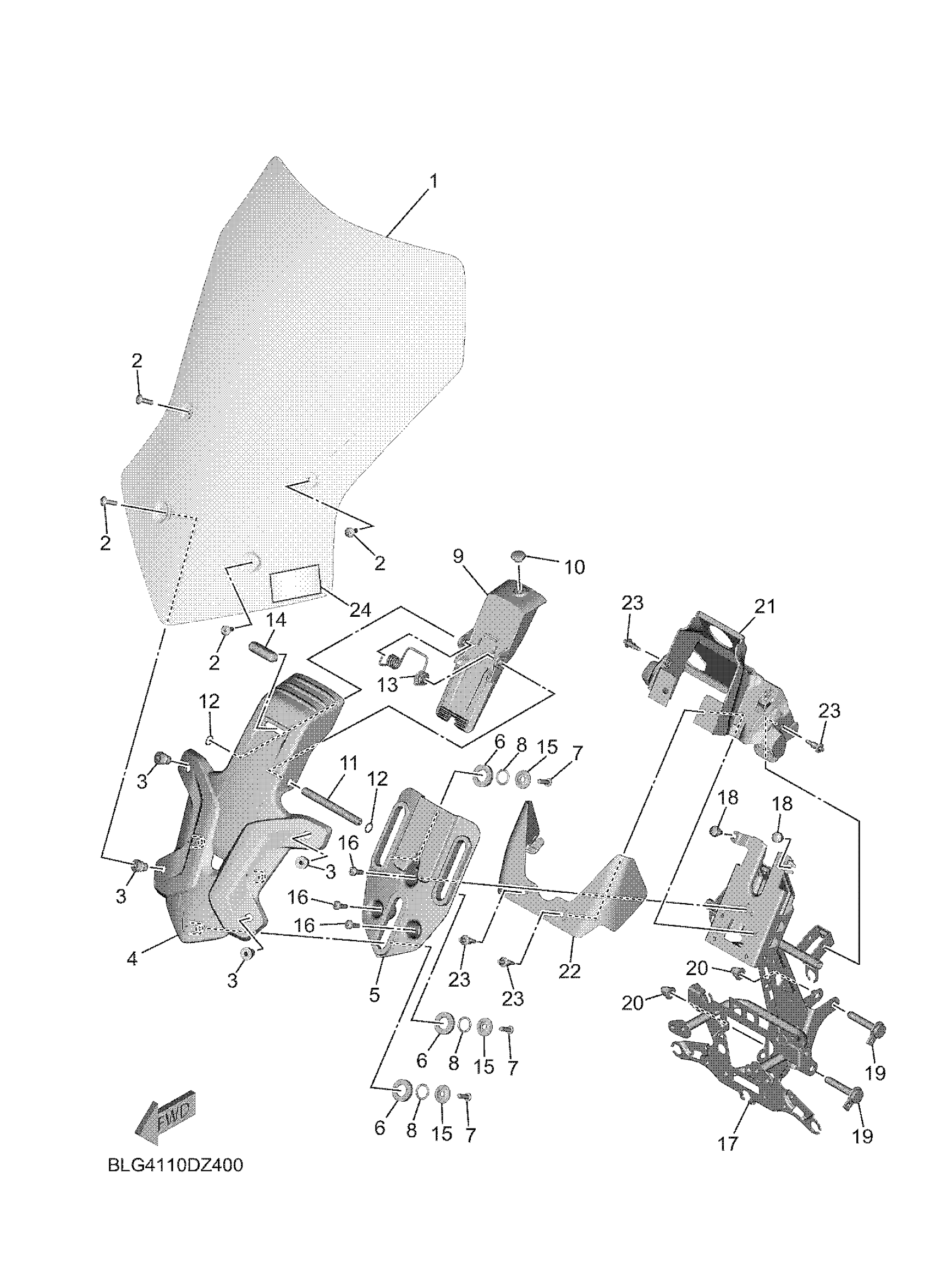

Yamaha MTT9GPRGY (TRACER 9 GT) BLG4 2024 WINDSHIELD Diagram

#

Description
Price

1

WINDSHIELD

B5U-28381-00-00

Unavailable

2

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

3

NUT

90179-05003-00

$5.60

4

STAY, MAIN 1

BLG-2831R-00-00

$88.99

5

STAY, SUPPORT 1

B5U-2831T-00-00

$47.99

6

WASHER

B5C-28319-00-00

$4.67

7

BOLT, BUTTON HEAD

92017-05016-00

$7.49

8

O-RING(6U1)

93210-14MF4-00

$7.49

9

KNOB, 1

BLG-2836X-00-00

Unavailable

10

PLUG

90338-07010-00

$4.99

11

SHAFT, 1

B5C-2835B-00-00

Unavailable

12

CIRCLIP

99009-09800-00

$1.07

13

SPRING

B5C-28388-00-00

$4.82

14

DAMPER, LOCATING 1

B5C-2836T-00-00

$5.60

15

COLLAR

B5C-28373-00-00

$15.99

16

BOLT,HEX. SOCKET B

90111-05061-00

Unavailable

17

STAY 1

BLG-28356-00-00

Unavailable

18

PLUG

90338-06007-00

Unavailable

19

PLATE

BLG-28336-00-00

Unavailable

20

NUT, CROWN (4G0)

90176-08026-00

Unavailable

21

PANEL, INNER 3

BLG-2836M-00-00

Unavailable

22

PANEL, INNER 4

BLG-2836N-00-00

Unavailable

23

RIVET

90269-06001-00

Unavailable

24

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

Unavailable
