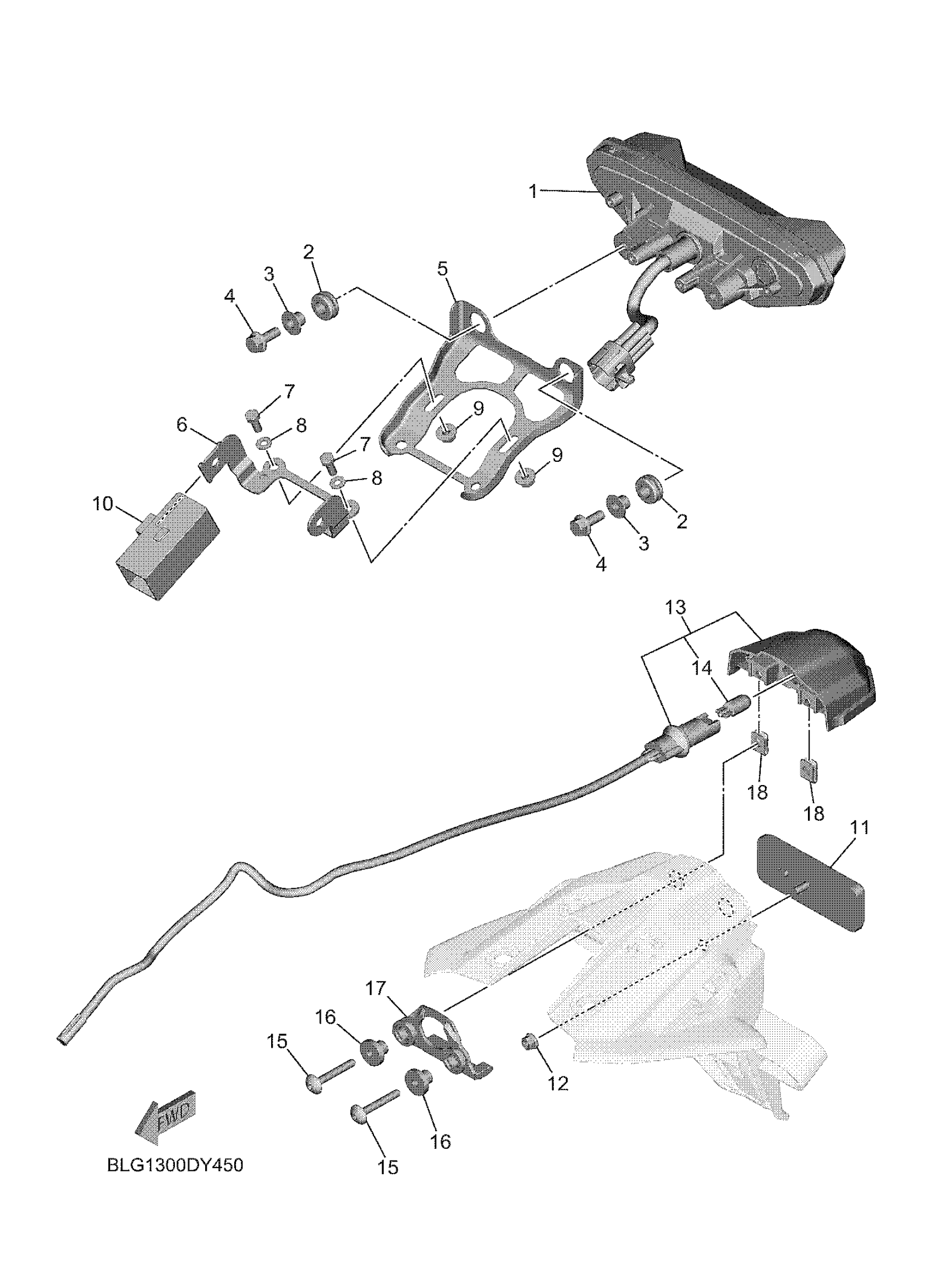

Yamaha MTT9GPRGY (TRACER 9 GT) BLG4 2024 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

BLG-84700-00-00

$184.99

2

GROMMET (1E5)

90480-13163-00

$7.49

3

SPACER (4F2)

90560-06201-00

$13.99

4

BOLT, FLANGE DEEP RECESS

95D32-06016-00

$0.65

5

BRACKET, TAILLIGHT

B5U-2117E-00-00

Unavailable

6

BRACKET, REAR STAY

BLG-21689-00-00

Unavailable

7

BOLT(4GV)

97017-05012-00

$8.49

8

WASHER(1RW)

92907-05600-00

$3.78

9

NUT, FLANGE(3GM)

95707-05500-00

$8.49

10

BAND

BLG-21646-00-00

Unavailable

11

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

12

NUT, S/L FLANGE

95607-05200-00

$9.49

13

LICENCE LIGHT UNIT

B5U-84745-00-00

$49.99

14

BULB (12V-5W)

2DP-H4347-00-00

$7.49

15

BOLT,HEX. SOCKET BUTTON

90111-05026-00

$8.49

16

COLLAR

90387-05044-00

Unavailable

17

DAMPER

B5U-21649-00-00

Unavailable

18

NUT, SPRING

90183-050A6-00

Unavailable
