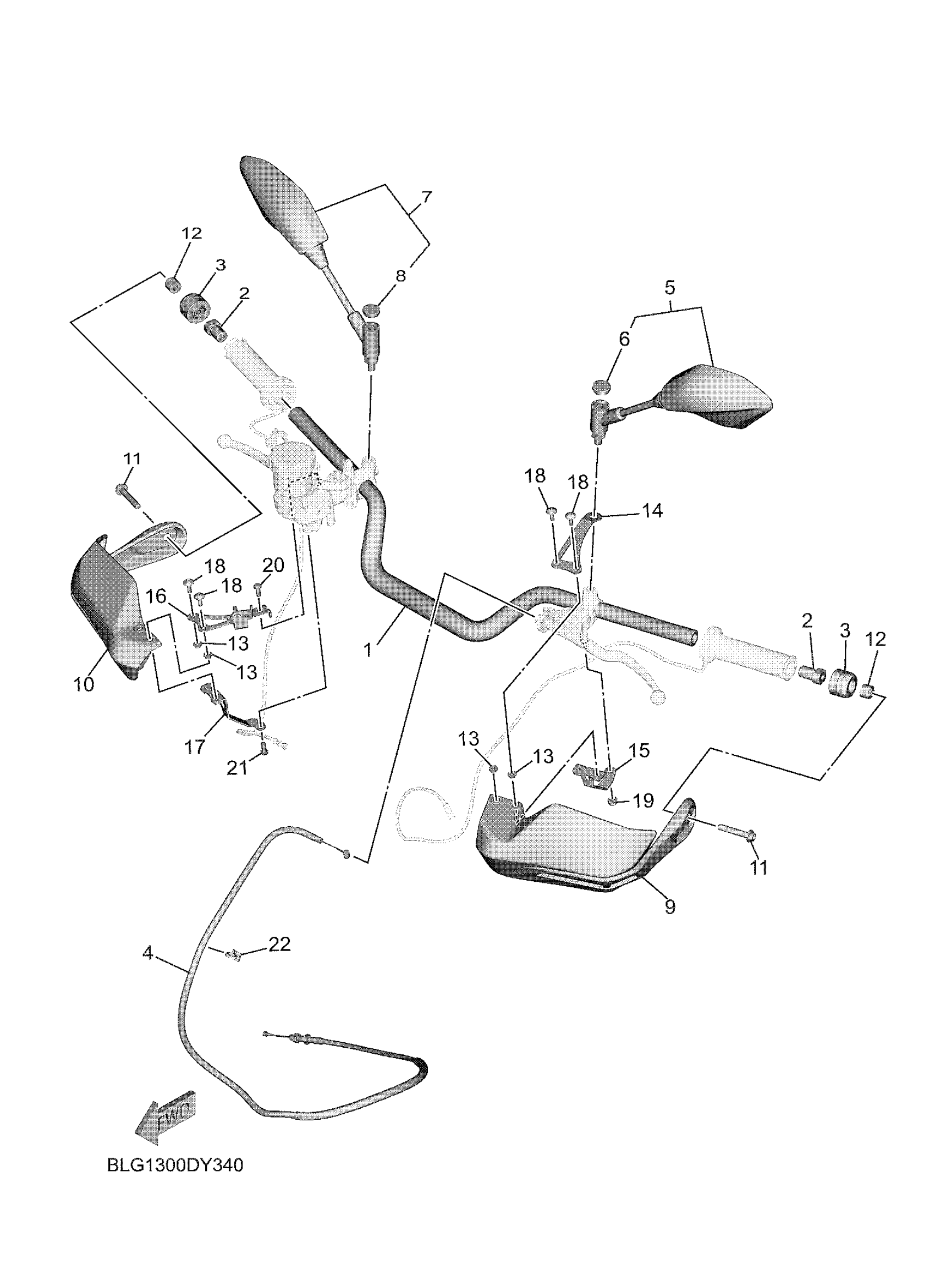

Yamaha MTT9GPRGY (TRACER 9 GT) BLG4 2024 STEERING HANDLE & CABLE Diagram

#

Description
Price

1

HANDLEBAR

BLG-26111-00-00

$160.55

2

END, GRIP

B5U-26246-00-00

$25.98

3

END, GRIP 2

B5U-2624B-00-00

$51.59

4

WIRE, CLUTCH

BLG-26335-00-00

$31.32

5

REAR VIEW MIRROR A

B7N-26280-00-00

$73.35

6

CAP

5PS-26133-20-00

$5.00

7

REAR VIEW MIRROR A

B7N-26290-00-00

$73.35

8

CAP

5PS-26133-20-00

$5.00

9

GUARD, BRUSH 1

B5U-26141-00-00

$13.70

10

GUARD, BRUSH 2

B5U-26142-00-00

$13.70

11

BOLT, HEXAGON SOCKET HEAD(3KM)

90110-08232-00

$4.96

12

SPACER

B5U-26021-00-00

$15.52

13

COLLAR

90387-05021-00

$5.84

14

BRACKET, HANDLE 1

BLG-26223-00-00

Unavailable

15

BRACKET, HANDLE 3

BLG-2622A-00-00

$18.89

16

BRACKET, HANDLE 2

BLG-26224-00-00

Unavailable

17

BRACKET, HANDLE 4

BLG-2622E-00-00

Unavailable

18

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

19

NUT,SELF-LOCKING

95607-06200-00

Unavailable

20

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

21

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

22

CLAMP

90464-12001-00

Unavailable
