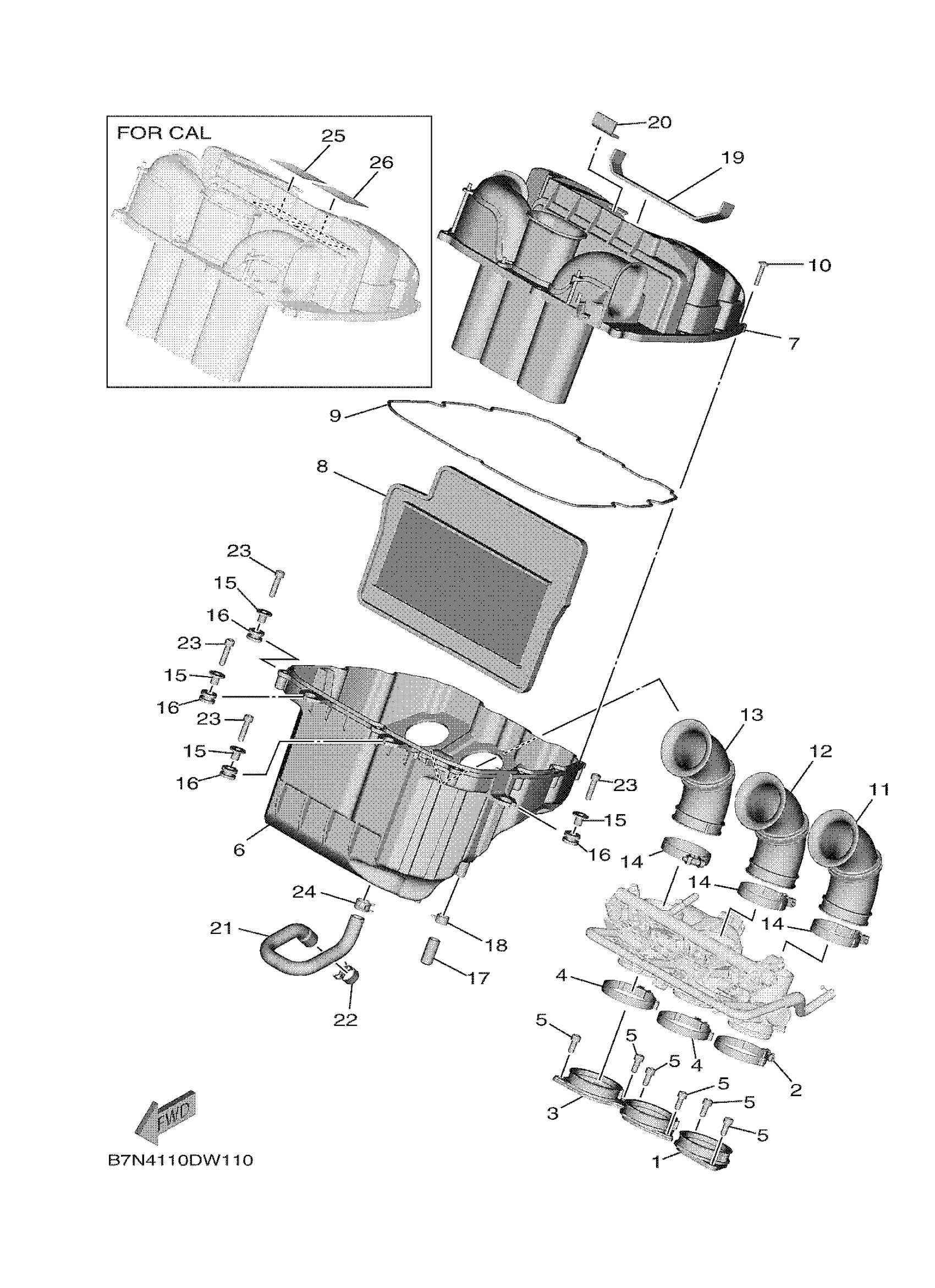

Yamaha MTT9GPRGY (TRACER 9 GT) BLG4 2024 INTAKE 3 Diagram

#

Description
Price

1

JOINT INTAKE 1

B7N-13635-00-00

Unavailable

2

HOSE CLAMP ASSY

90450-58008-00

Unavailable

3

JOINT, INTAKE 2

B7N-13636-00-00

$35.99

4

HOSE CLAMP ASSY

90450-58008-00

Unavailable

5

BOLT (33M)

91312-06014-00

$5.60

6

CASE, AIR CLEANER

B7N-14411-01-00

$47.99

7

CAP ASSY, AIR CLEA

B7N-14402-11-00

Unavailable

8

ELEMENT, AIR CLEANER

B7N-14451-01-00

$41.99

9

SEAL

14B-14452-00-00

Unavailable

10

SCREW, ROUND TAPPING

90160-05013-00

$8.49

11

JOINT, AIR CLEANER

B7N-14453-00-00

$30.99

12

JOINT, AIR CLEANER

B7N-14463-00-00

$31.99

13

JOINT

B7N-14454-00-00

$31.99

14

HOSE CLAMP ASSY

90450-53007-00

$8.49

15

COLLAR

90387-06205-00

$7.49

16

GROMMET(3AA)

90480-12497-00

Unavailable

17

PIPE, DRAIN

1WS-1443E-00-00

Unavailable

18

CLIP(3YX)

90467-13133-00

Unavailable

19

DAMPER 1

B7N-14425-00-00

Unavailable

20

DAMPER 2

B7N-14426-01-00

Unavailable

21

PIPE, BREATHER 2

B7N-15393-00-00

Unavailable

22

CLIP

90467-17003-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-06232-00

Unavailable

24

CLIP

90467-15001-00

Unavailable

25

PLATE, ROUTING 2

B7N-21686-00-00

Unavailable

26

PLATE, ROUTING

1RC-21684-01-00

Unavailable
