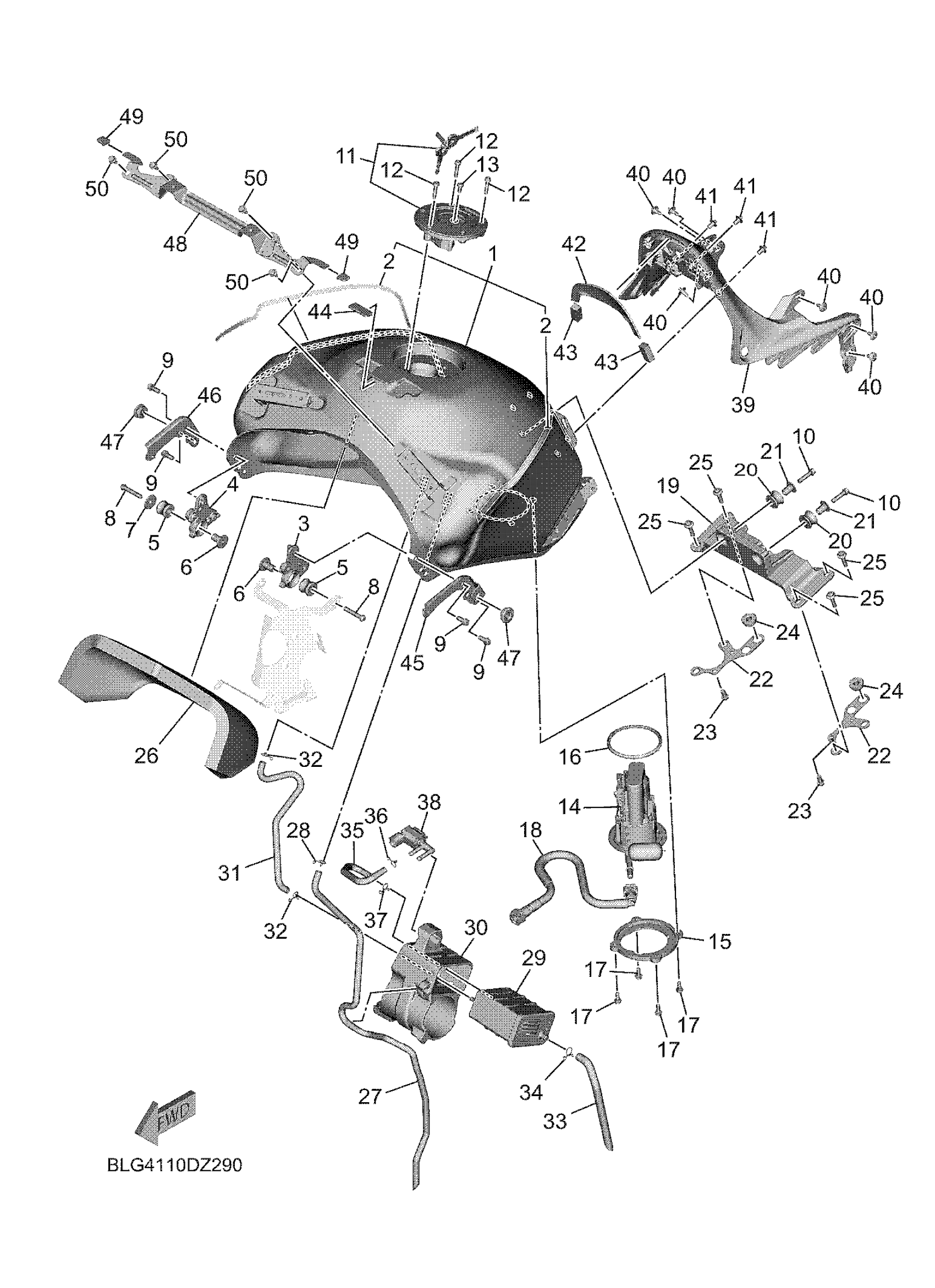

Yamaha MTT9GPRGY (TRACER 9 GT) BLG4 2024 FUEL TANK 2 (FOR CAL) Diagram

#

Description
Price

1

FUEL TANK COMP. (YAMAHA BLACK) (PASTEL DARK GRAY)

B5U-Y2410-00-02

Unavailable

2

GRAPHIC SET

BLG-24240-10-00

$84.99

3

BRACKET, FUEL TANK

B7N-24191-00-00

Unavailable

4

BRACKET, FUEL TANK

B7N-24192-00-00

$33.99

5

GROMMET

90480-18008-00

$3.71

6

COLLAR

90387-06266-00

$4.61

7

WASHER PLATE 137241870000

90201-06072-00

$9.49

8

BOLT, BUTTON HEAD

92012-06035-00

$2.34

9

BOLT, FLANGE DEEP

95E37-06014-00

$1.13

10

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

11

CAP ASSY

2CR-24602-01-00

$226.99

12

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

13

BOLT

91312-05010-00

$5.60

14

FUEL PUMP COMP.

B5U-13907-10-00

Unavailable

15

BRACKET, FUEL PUMP

1RC-24491-00-00

Unavailable

16

O-RING

1RC-24486-00-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

Unavailable

18

PIPE, FUEL 1

B7N-13971-00-00

Unavailable

19

BRACKET, TANK FITT

BLG-2413Y-00-00

Unavailable

20

GROMMET

3D7-24339-00-00

Unavailable

21

COLLAR

90387-06136-00

Unavailable

22

STAY

B5U-24662-00-00

Unavailable

23

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

24

GROMMET(4FU)

90480-13567-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

Unavailable

26

DAMPER, PLATE 1

B7N-2414H-00-00

Unavailable

27

PIPE 5

B7N-24315-00-00

Unavailable

28

CLIP

90467-090A2-00

Unavailable

29

CANISTER ASSY

B7N-24170-00-00

Unavailable

30

DAMPER, LOCATING 3

B7N-24183-00-00

Unavailable

31

PIPE 3

B7N-24313-10-00

Unavailable

32

CLIP

90467-090A2-00

Unavailable

33

PIPE 6

B7N-24316-00-00

Unavailable

34

CLIP

90467-100A1-00

Unavailable

35

PIPE 7

B7N-24317-10-00

Unavailable

36

CLIP

90467-090A2-00

Unavailable

37

CLIP

90467-090A2-00

Unavailable

38

SOLENOID VALVE ASS

B7N-86120-00-00

Unavailable

39

PROTECTOR, FUEL TA

B5U-24141-00-00

Unavailable

40

RIVET

90269-05079-00

Unavailable

41

RIVET

90269-06019-00

Unavailable

42

DAMPER, LOCATING 1

B5U-24181-00-00

Unavailable

43

DAMPER, PLATE

90520-10037-00

Unavailable

44

DAMPER, SIDE COVER

B5U-2411J-00-00

Unavailable

45

PLATE, FITTING

B5U-2411F-00-00

Unavailable

46

HOOK TANK FITTING

B5U-2411L-00-00

Unavailable

47

GROMMET(4DN)

90480-01558-00

Unavailable

48

STAY

B5U-24216-00-00

Unavailable

49

DAMPER, SIDE COVER

5PW-2411J-01-00

Unavailable

50

BOLT, FLANGE

90105-05014-00

Unavailable
