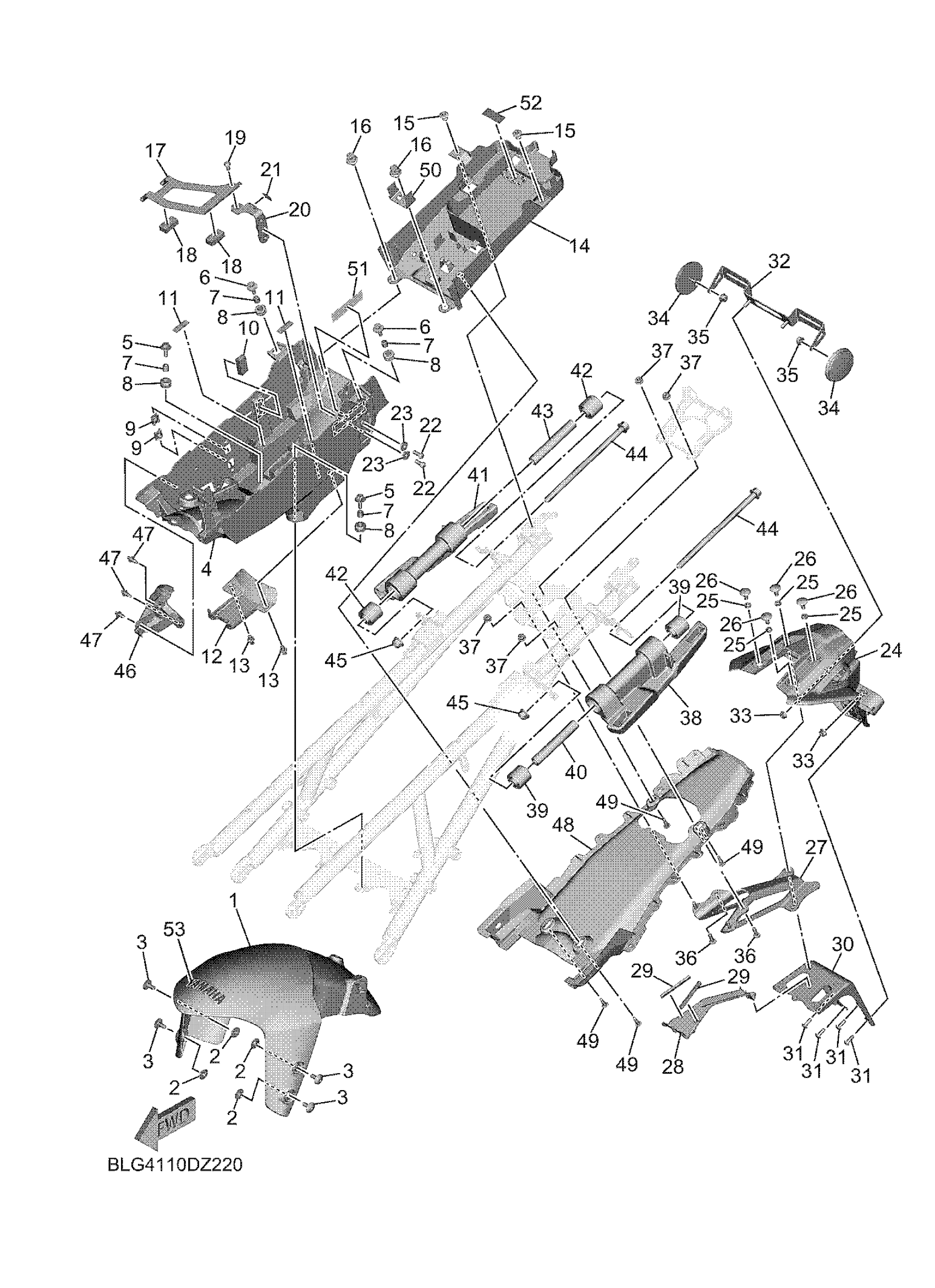

Yamaha MTT9GPRGY (TRACER 9 GT) BLG4 2024 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

B7N-21511-00-3E

$120.99

2

COLLAR (3L1)

90387-07717-00

$8.49

3

BOLTHEX. SOCKET BUTTON

90111-06191-00

$1.07

4

BOX, BATTERY 1

BLG-8212B-00-00

$60.99

5

BOLT WITH WASHER

90119-06313-00

Unavailable

6

BOLT, WITH WASHER

90119-06138-00

$5.60

7

COLLAR

90387-06113-00

$11.49

8

GROMMET

90480-14035-00

$2.17

9

NUT, SPRING(4ES)

90183-06069-00

Unavailable

10

DAMPER, PLATE

90520-10047-00

Unavailable

11

DAMPER

B7N-21649-00-00

$3.35

12

LID

BLG-2160F-00-00

Unavailable

13

RIVET

90269-06018-00

$2.28

14

BOX

B5U-2160E-01-00

Unavailable

15

RIVET

90269-07007-00

$4.08

16

RIVET(4JH)

90269-07076-00

Unavailable

17

BAND, BATTERY

BLG-82137-00-00

Unavailable

18

DAMPER, PLATE

90520-10047-00

Unavailable

19

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

20

BRACKET, REAR STAY

BLG-21688-00-00

Unavailable

21

DAMPER, PLATE

90520-01007-00

Unavailable

22

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

23

COLLAR

90387-06048-00

Unavailable

24

GUARD, MUD

B7N-21629-00-00

Unavailable

25

COLLAR

90387-06106-00

Unavailable

26

BOLT,HEX. SOCKET BUTTON

90111-06190-00

Unavailable

27

STAY 1

B5U-2164F-00-00

Unavailable

28

COVER, REAR FENDER

2PP-2163E-01-00

Unavailable

29

DAMPER, PLATE

90520-04020-00

Unavailable

30

STAY, PLATE

B7N-21682-00-00

Unavailable

31

SCREW, ROUND TAPPING

90160-05012-00

Unavailable

32

BRACKET, LICENSE

1RC-84751-00-00

Unavailable

33

NUT, SELF-LOCKING

95617-06100-00

Unavailable

34

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

35

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

36

BOLT

90111-06046-00

Unavailable

37

NUT, U FLANGE

95604-06200-00

Unavailable

38

STAY 3

BAP-2164H-00-00

Unavailable

39

DAMPER

90388-10005-00

Unavailable

40

COLLAR

90387-10124-00

Unavailable

41

STAY 4

BAP-2164J-00-00

Unavailable

42

DAMPER

90388-10005-00

Unavailable

43

COLLAR

90387-10124-00

Unavailable

44

BOLT, FLANGE

90105-10493-00

Unavailable

45

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

46

COVER, REAR FENDER

B7N-2163A-00-00

Unavailable

47

RIVET

90269-06001-00

Unavailable

48

COVER, REAR FENDER

B5U-21651-01-00

Unavailable

49

RIVET

90269-06001-00

Unavailable

50

BRACKET 5

BLG-2161F-00-00

Unavailable

51

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable

52

LABEL, CAUTION

3TB-24877-A1-00

Unavailable

53

EMBLEM, YAMAHA

99244-00080-00

Unavailable
