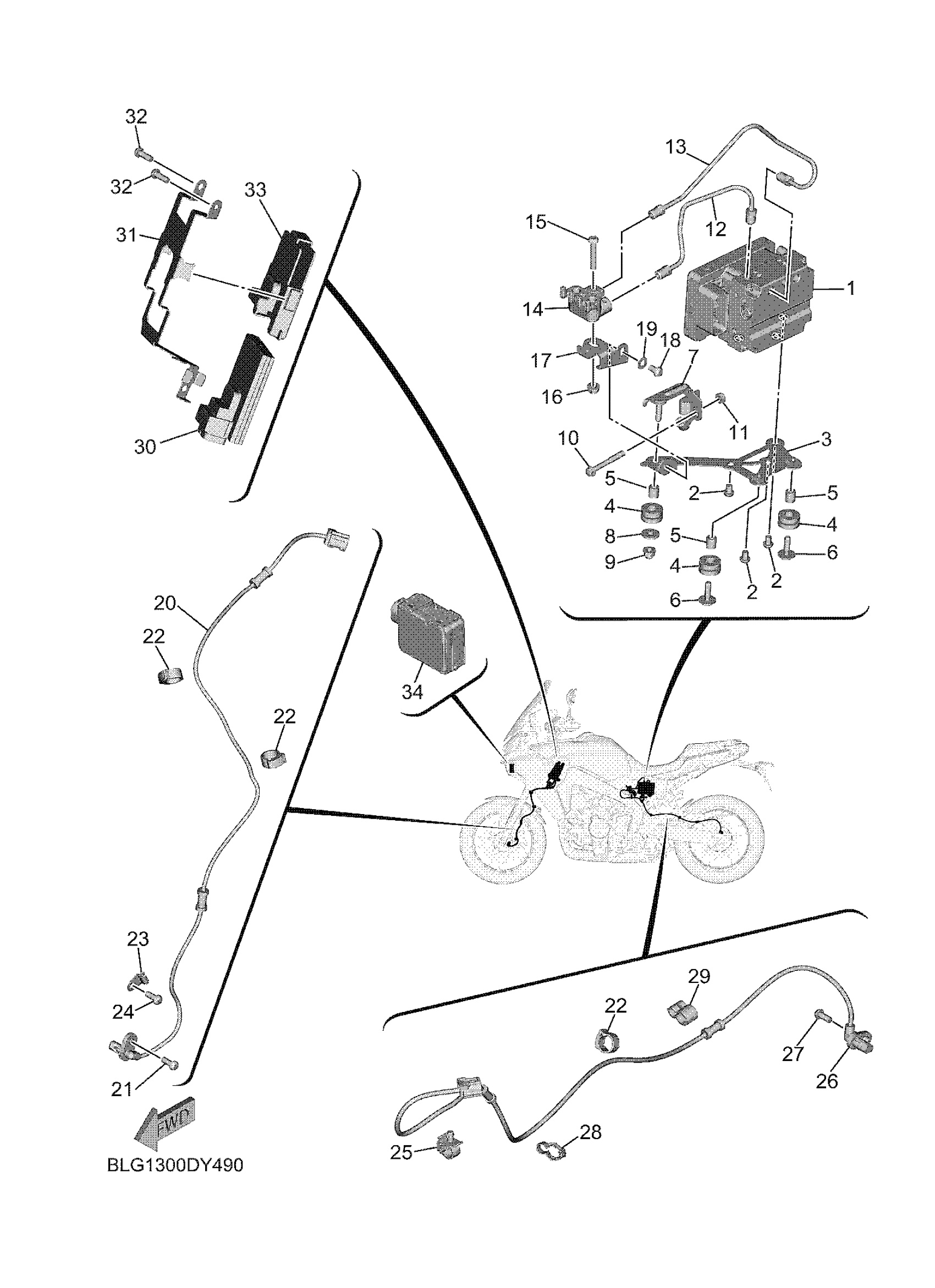

Yamaha MTT9GPRGY (TRACER 9 GT) BLG4 2024 ELECTRICAL 3 Diagram

#

Description
Price

1

HYDRAULIC UNIT ASSY

BLG-85930-09-00

Unavailable

2

BOLT, HEXAGON SOCK

90111-06204-00

Unavailable

3

BRACKET, UNIT

BLG-85991-00-00

Unavailable

4

GROMET (3X3)

90480-14229-00

$8.49

5

COLLAR (J10)

90387-06026-00

$8.49

6

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

7

BRACKET

BLG-85542-00-00

Unavailable

8

WASHER, PLATE (8K2)

90201-06778-00

$4.46

9

NUT, CROWN(2GM)

90176-06065-00

$9.49

10

BOLT, SMALL FLANGE

95027-06045-00

$3.28

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

PIPE, BRAKE

BLG-25871-00-00

Unavailable

13

PIPE, BRAKE 2

BLG-25882-00-00

Unavailable

14

JOINT

B7N-25885-00-00

Unavailable

15

BOLT, BUTTON HEAD

92012-06035-00

$2.34

16

NUT, FLANGE

95702-06500-00

Unavailable

17

BRACKET, REFLECTOR

BLG-85142-00-00

Unavailable

18

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

19

WASHER(6TA)

92907-06200-00

Unavailable

20

WHEEL SENSOR ASSY,

B7N-85970-00-00

Unavailable

21

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

22

CLAMP

90464-16003-00

Unavailable

23

HOLDER, CABLE

2CR-23317-00-00

Unavailable

24

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

25

CLAMP

90464-14013-00

Unavailable

26

WHEEL SENSOR ASSY,

BLG-85980-00-00

Unavailable

27

BOLT, BUTTON HEAD(4NK)

92014-06014-00

Unavailable

28

CLAMP

90464-14810-00

Unavailable

29

CLAMP(4GL)

90464-10233-00

Unavailable

30

SUSPENSION CONTROL UNIT ASSY

BLG-85902-00-00

Unavailable

31

BRACKET 3

BLG-2161A-00-00

Unavailable

32

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

33

BAND

BAP-21646-00-00

Unavailable

34

MRR. UNIT ASSY

BLG-8595A-00-00

Unavailable
