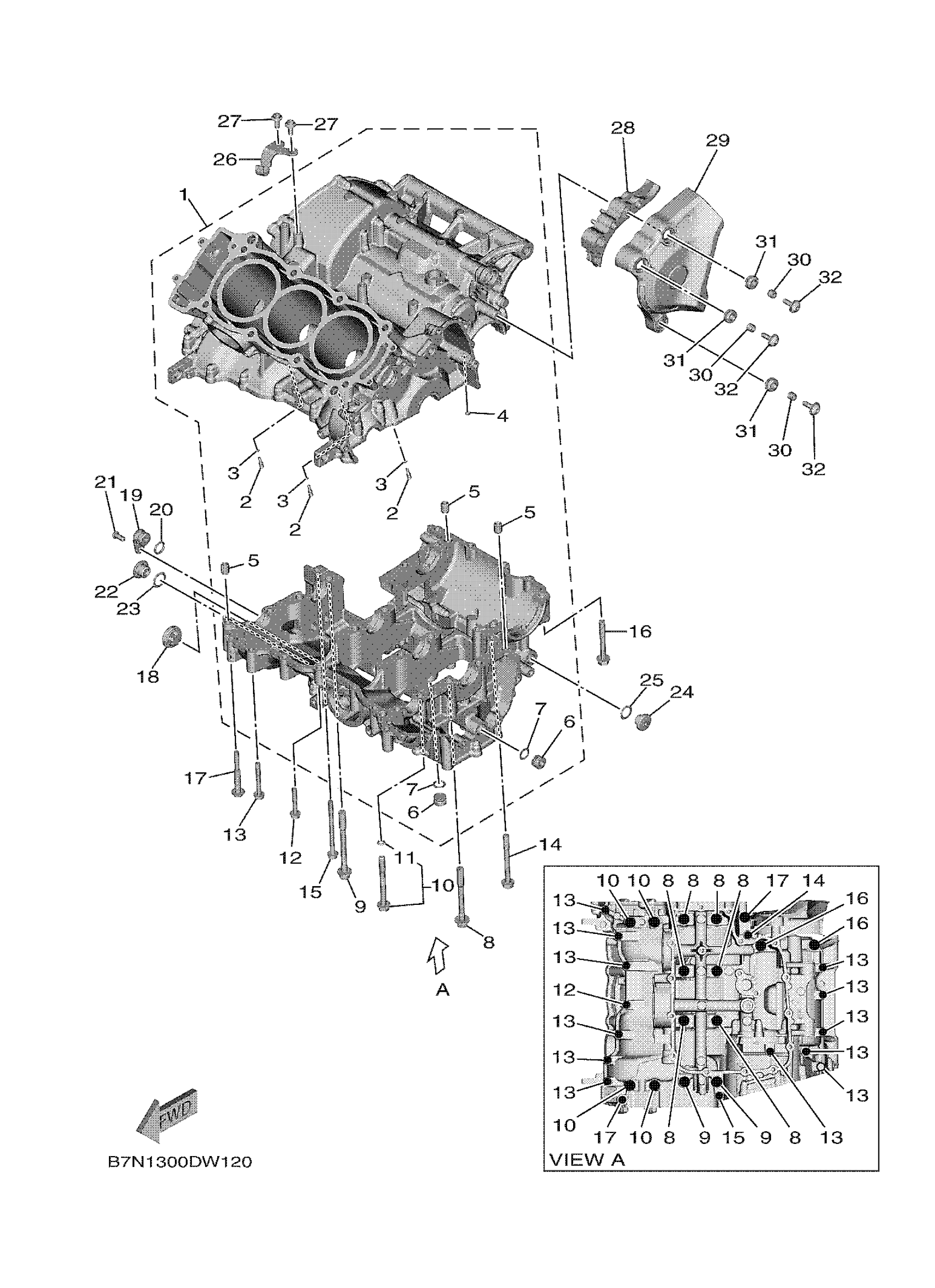

Yamaha MTT9GPRGY (TRACER 9 GT) BLG4 2024 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

B7N-15100-09-00

Unavailable

2

NOZZLE 3

5EB-15155-00-00

$14.49

3

O-RING (210)

93210-04092-00

$3.76

4

NOZZLE 1

B7N-15138-00-00

Unavailable

5

PIN, DOWEL(3VD)

99530-10114-00

$2.55

6

PLUG

90338-16262-00

$14.99

7

O-RING(3LD)

93210-12790-00

$7.49

8

BOLT, WITH WASHER

90119-09013-00

$12.49

9

BOLT, WITH WASHER

90119-09010-00

$13.49

10

BOLT, CRANKCASE JOURNAL

23P-15156-00-00

$10.99

11

O-RING (11M)

93210-07540-00

$7.49

12

BOLT, FLANGE

95817-06040-00

$5.60

13

BOLT, FLANGE

95812-06050-00

$1.86

14

BOLT, FLANGE

95812-06065-00

Unavailable

15

BOLT, FLANGE

90105-06202-00

$1.91

16

BOLT, FLANGE

95817-08060-00

Unavailable

17

BOLT

90109-06100-00

Unavailable

18

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

19

JOINT

2CR-15319-01-00

Unavailable

20

O-RING(36Y)

93210-13657-00

Unavailable

21

SCREW

90149-06068-00

Unavailable

22

PLUG

36Y-15189-01-00

Unavailable

23

O-RING(1L9)

93210-16325-00

Unavailable

24

PLUG, STRAIGHT SCREW

90340-14011-00

Unavailable

25

O-RING (2H9)

93210-14369-00

Unavailable

26

HOLDER, CLUTCH CAB

B7N-15441-00-00

Unavailable

27

BOLT, HEXAGON SOCKET HEAD

90110-06107-00

Unavailable

28

GUIDE, INLET

B7N-15377-00-00

Unavailable

29

COVER, CHAIN CASE

B7N-15418-00-00

Unavailable

30

COLLAR

90387-06286-00

Unavailable

31

GROMMET (462)

90480-13018-00

Unavailable

32

BOLTHEX. SOCKET BUTTON

90111-06188-00

Unavailable
